Page 48 av 64
1 General
1.1 Checking electrical cables and connection points
The purpose of checking the cabling and connection points is primarily to avoid personal
injury as well as damage to the machine itself.
1. Check that the power cord to the electrical unit is intact, free of errors and installed as
per the instructions.
2. Check that all cables are connected to the terminal block for the technical unit.
3. Check fuses.
F03-C 13A (parts of the heavy-current components of the machine)
Fuses on the machine except the steam generator
4. Check the connection points for the pump.
5. Check the connections on the steam generator
6. All cables should be connected to the unit.
1.1.1. Check of fuses
This must only be done by authorized personnel.
The machine is connected to the electricity supply and some components are
live.

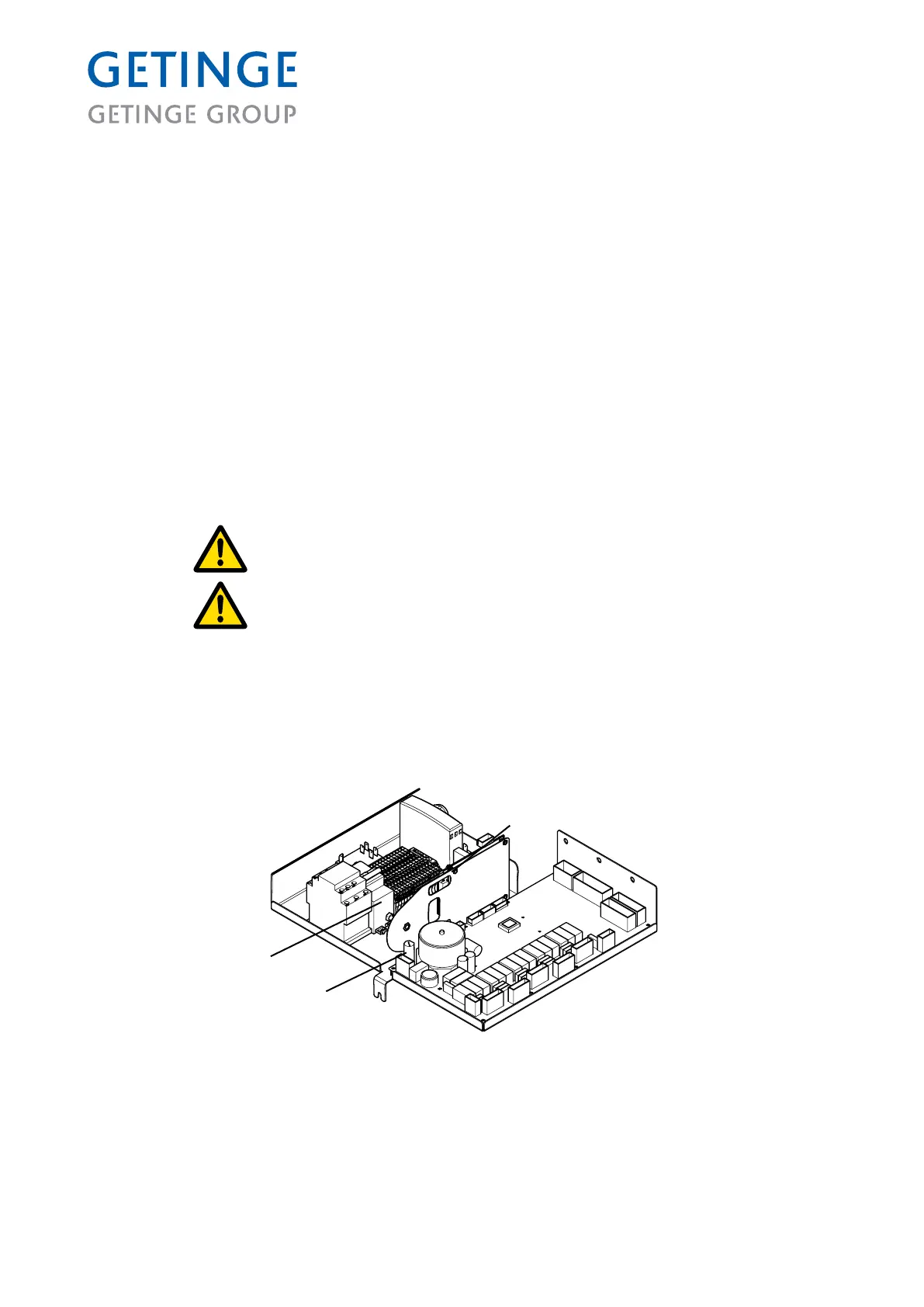

The disinfector has the following 4 fuses
• F1400 mA T - This fuse is t on the door closing board
• F3 200 mA T - This fuse is t on the door closing board
• F01 - 500 mA T CPU - Relay board
• F03 - 2-poled automatic fuse C13 A, which protects parts of the heavy-current
components of the machine
Check the fuses as follows:
• Switch off the isolator switch of the machine.
• Pull out the panel and remove the cover.
• Switch on the isolator switch of the machine.
• Check
- that voltage is present and is within tolerance and that the fuses are OK.
- If there is no voltage or if the voltage is outside tolerance, go to the next step.
• The fault is in the power supply to the machine, e.g., fuse F01 or F03.
F01
F1,
F3
F03
