-A01 Control system, processor board -F3 Fuse door lock board 200mAT -S03 Limit switch, door closed
-A10 Control card lock motor -F03 Fuse 2-poled C13 -S04 Switch door closed (fan)
-A11 Display keypad -K02 Contactor, electric element in
steam generator
-S05 Limit switch, door locked
-B01 Level sensor, tank -K03 Relay ventilator fan -S11 Pedal
-B02 Level sensor, descaling -K04 Automatic door: -T02 Transformer 1-phase
-B04 Level sensor, process -M01 Motor, main pump -T03 Transformer 3-phase
-B05 Leakage sensor *
(2 possible positions) -M03 Motor, process pump -T04 Transformer 3-phase 415VAC
-B06 Level sensor, rinse-aid -M04 Motor, descaler pump -U01 Power supply 24VDC
-B07 Temperature sensor Pt-1000
(two sensors in one sensor body)
-M06 Ventilator fan -Y01 Solenoid valve, cold water
-M07 Motor, rinse-aid pump -Y02 Solenoid valve, hot water
-E01 Electric element in steam generator -M16 Locking motor -X50 Terminal strip
-F01 Fuse on PACS board 500mAT -M17 Cooling fan -Q01 Main circuit breaker
-F1 Fuse locking door board 400mAT -M18 Motor, door
Note: Some components are extra equipment.
-M16
-S03
-S04
-S05

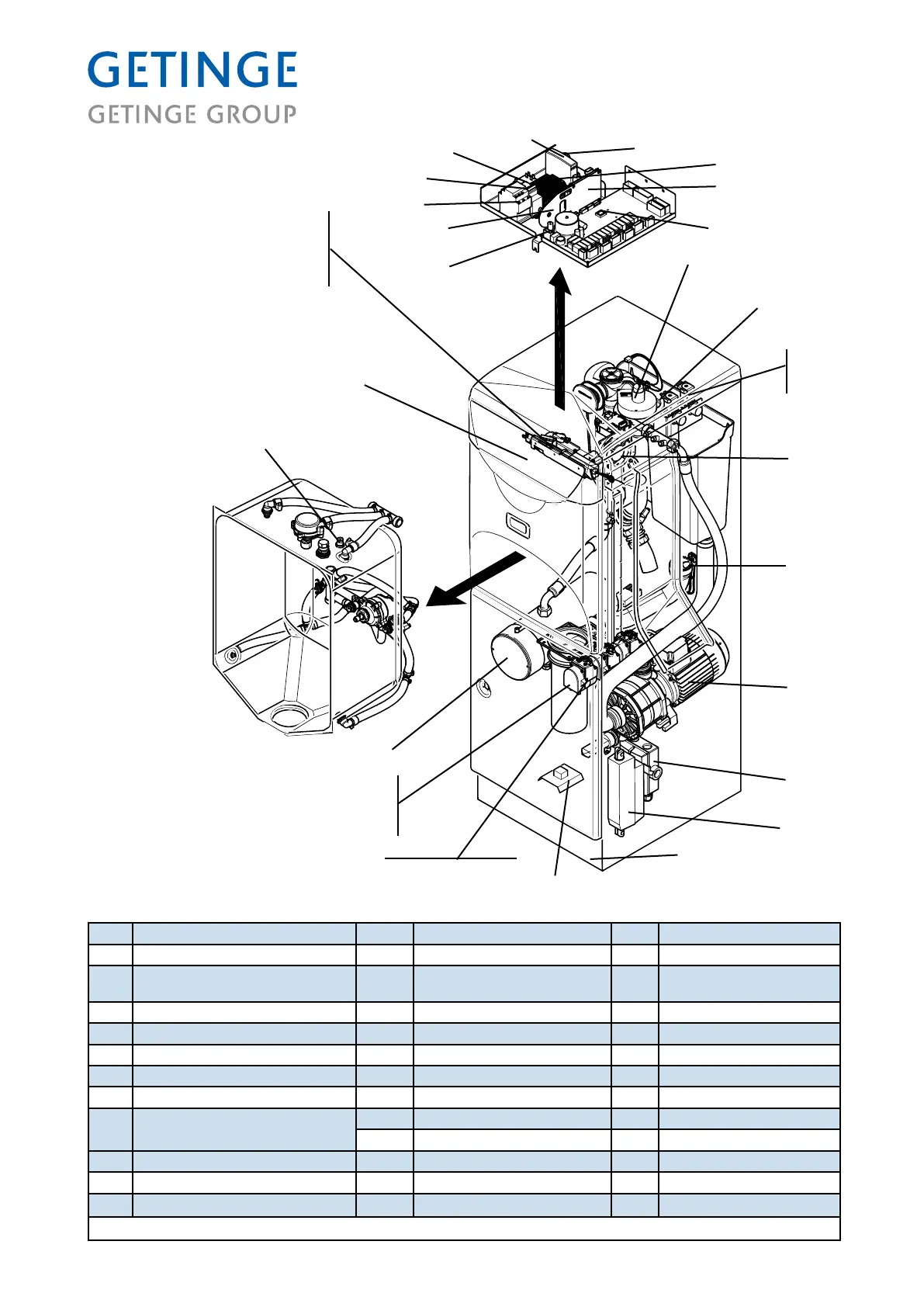

Component list
-X50
-K04
-U01
-K03
-M18
-S11
-M01
-Q01
-Y01
-Y02
-M17
-B05*
-B05*
-M03
-M04
-M07
-B02, -B04, -B06
-E01
-A01
-A10
-B01
-M06
-F01
-F1,-F3
-F03
-K02
-A11
-B07
