Fusion process Bedienungsanleitung MSA 4
6
2 Fusion process
2.1 Overview of operating procedure

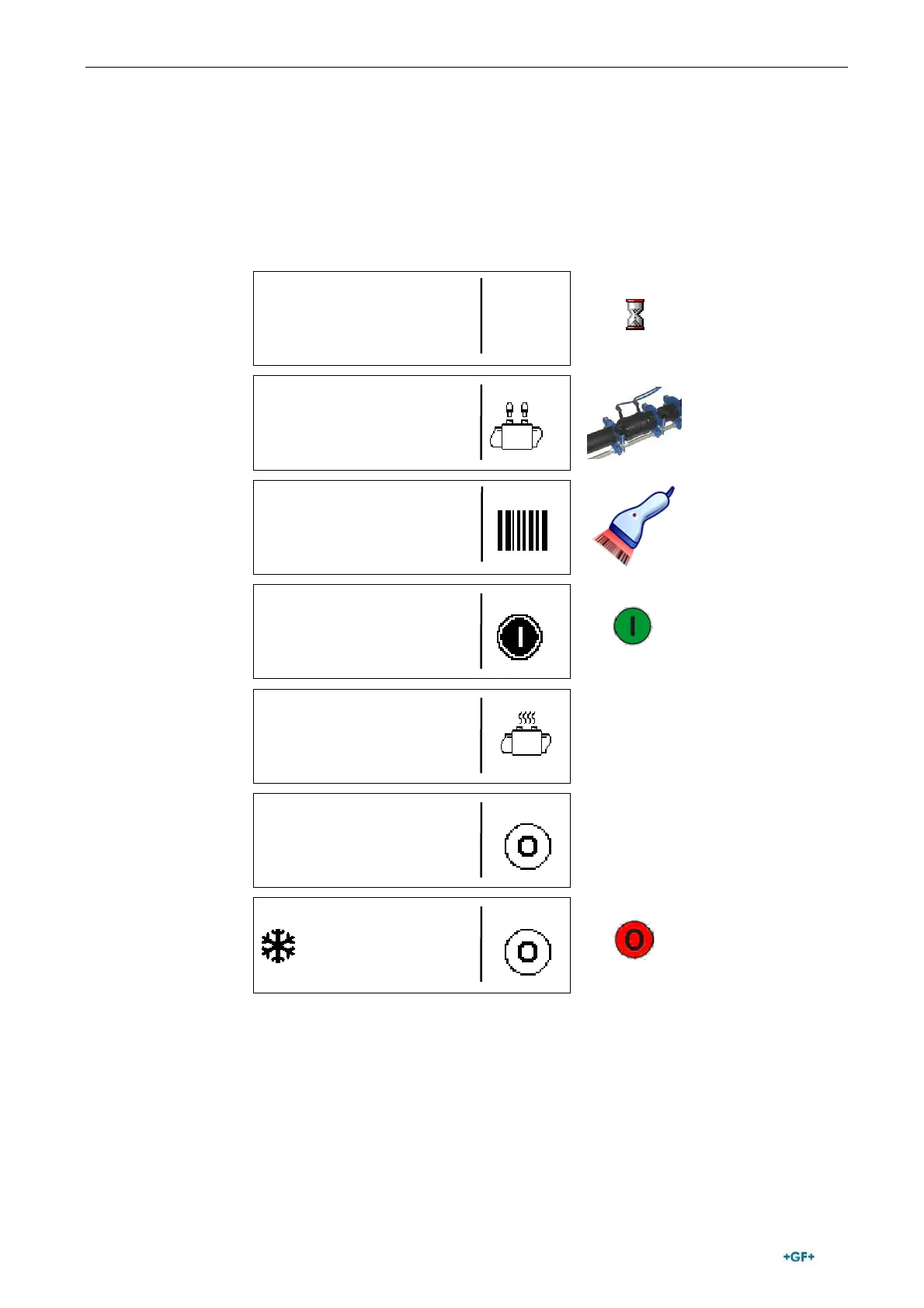

A standard welding workflow is shown in the picture below
MSA 4.0 SW: 1.00
22°C
S/N: S156A6308020
Next rev: 11/15
GENERAL INFORMATION ABOUT THE UNIT
09:13 11.03.14
CONNECT FITTING!
22°C
230 V ~ 50 Hz
CONNECT THE FITTING TO THE FUSION
CABLE TO START THE WELDING PROCESS 09:14 11.03.14
ENTER FUSION DATA
22°C
- - - - - - - - - - - - - - - - - - - -
- - 05,27
ACQUIRE FUSION DATA WITH A BARCODE
READER. PRESS MENU FOR MANUAL MODE 09:15 11.03.14
FUSION DATA
22°C
+GF+ C 320 mm
t= 300 s 18/5000
CONTROL THE DATA AND PRESS START TO
BEGIN THE FUSION 09:16 11.03.14
FUSION ONGOING
22°C
Vo=40 V Vin=230V~50Hz
t= 220 s E=13,7KJ
FUSION N 18/5000 IS ONGOING. PRESS
STOP IN CASE OF EMERGENCY 09:17 11.03.14
FUSION DONE
22°C
+GF+ C 320 mm
t= 300 s E=152,8KJ
FUSION DONE. DETACH THE CABLE TO
MOVE TO NEXT WELDINF. FUSION 19/5000 09:21 11.03.14
COOLING TIME LEFT
22°C
= 10‘
FUSION DONE,COOLING TIME IN PROGRESS
WAITT TILL THE END OR DETACH THE CABLE 09:21 11.03.14
Next paragraphs describe all possible actions, in addition to the standard workflow, that
can be executed during the welding process, like the insertion of the operator identity, job
number, traceability information, etc..
