Fusion process Bedienungsanleitung MSA 4

The GPS coordinates are visible on request, after the warm-up time, to the user. To see

them, just push the () button, when the machine is in stand by state (means the display is

showing the “CONNECT FITTING!” message). Then the display will show latitude, longitude,

altitude of the current location.

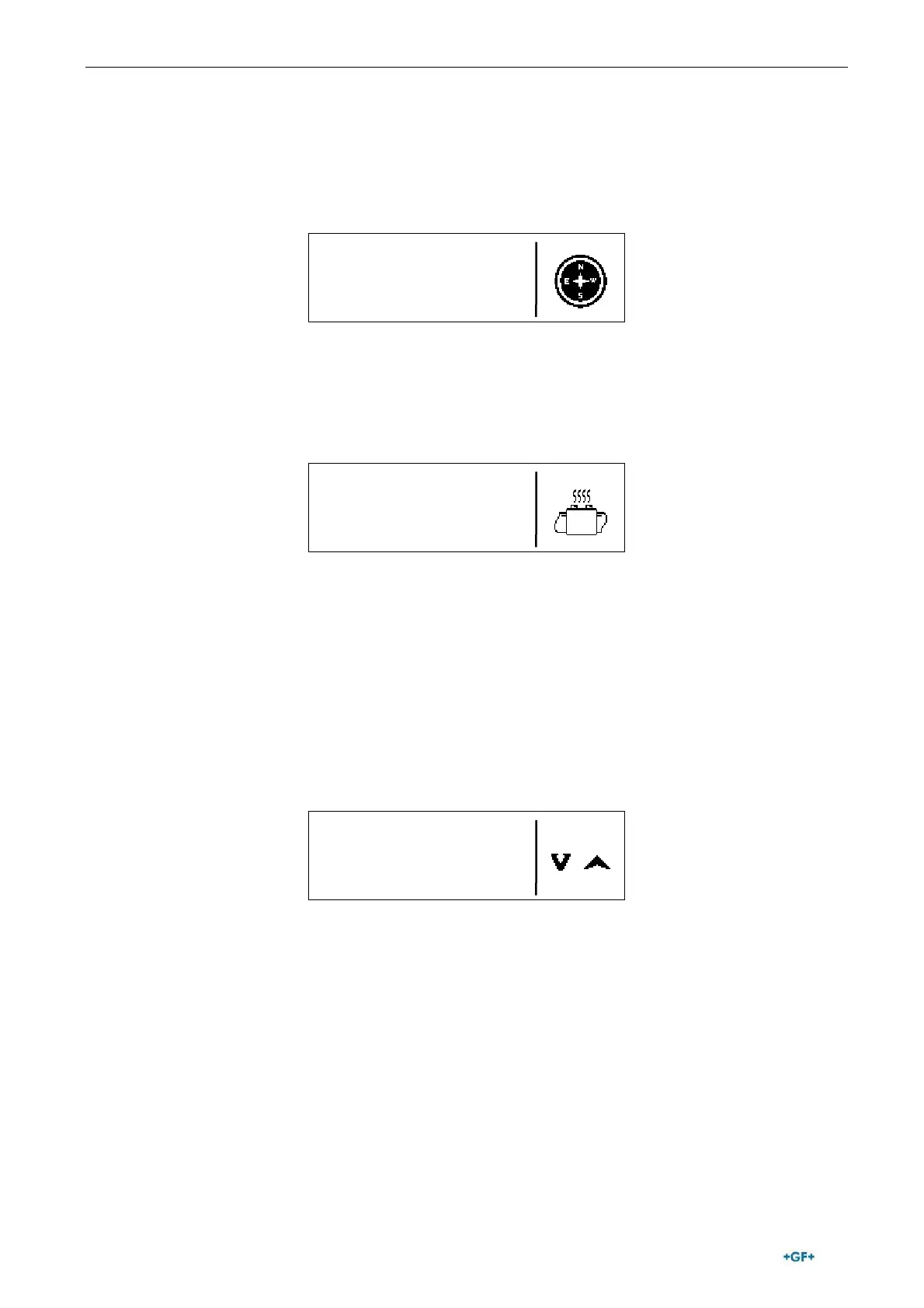

GPS DATA

22°C

LONG:011°30.59867E

LATIT:45°30.63511N

NUMBER OF SATELLITES ON VIEW: 08

QUALITY OF SIGNAL: 2 HDOP: 1.44 09:16 11.03.14

STOP/ESC (O) button will allow to go back to the main page.

2.12 Fusion process

2.12.1 Welding phase

FUSION ONGOING

22°C

Vo=40,0V Vin=230V~50Hz

T=227s E=3,5KJ

FUSION NUMBER 18/5000 IS ONGOING.

PRESS STOP IN CASE OF EMERGENCY 09:16 11.03.14

During the fusion process, the display shows the information concerning the output

voltage, the input voltage and frequency, the remaining fusion time and the applied

energy.

The MSA 4.0 (MSA 4.1), in case of barcode reading, tunes the fusion time according to the

external temperature. Therefore the final fusion time values might be slightly different from

the nominal values, written in the barcode.

During the first 10 seconds of the fusion, the machine checks the quality of the input

voltage. If the input voltage is not adequate, the fusion is interrupted after a few seconds

and an error message occurs.

ERROR n: 2 22°C

MAINS VOLTAGE

TOO HIGH

09:16 11.03.14

Check the voltage stability and the power capacity of the generator before starting the

welding.

The fusion process can be stopped at any time by the operator by pushing STOP/ESC (O).

Then the fusion process immediately stops and an error message occurs (see ‘Error

Messages’ chapter).

Stopping the on-going fusion process will result in a suspicious welding: the responsability

will be in charge of the operator.

GF MSA 4.0 User Manual
