GL-INET GL-MT300N-V2 Series User Manual

Page 8 | 77

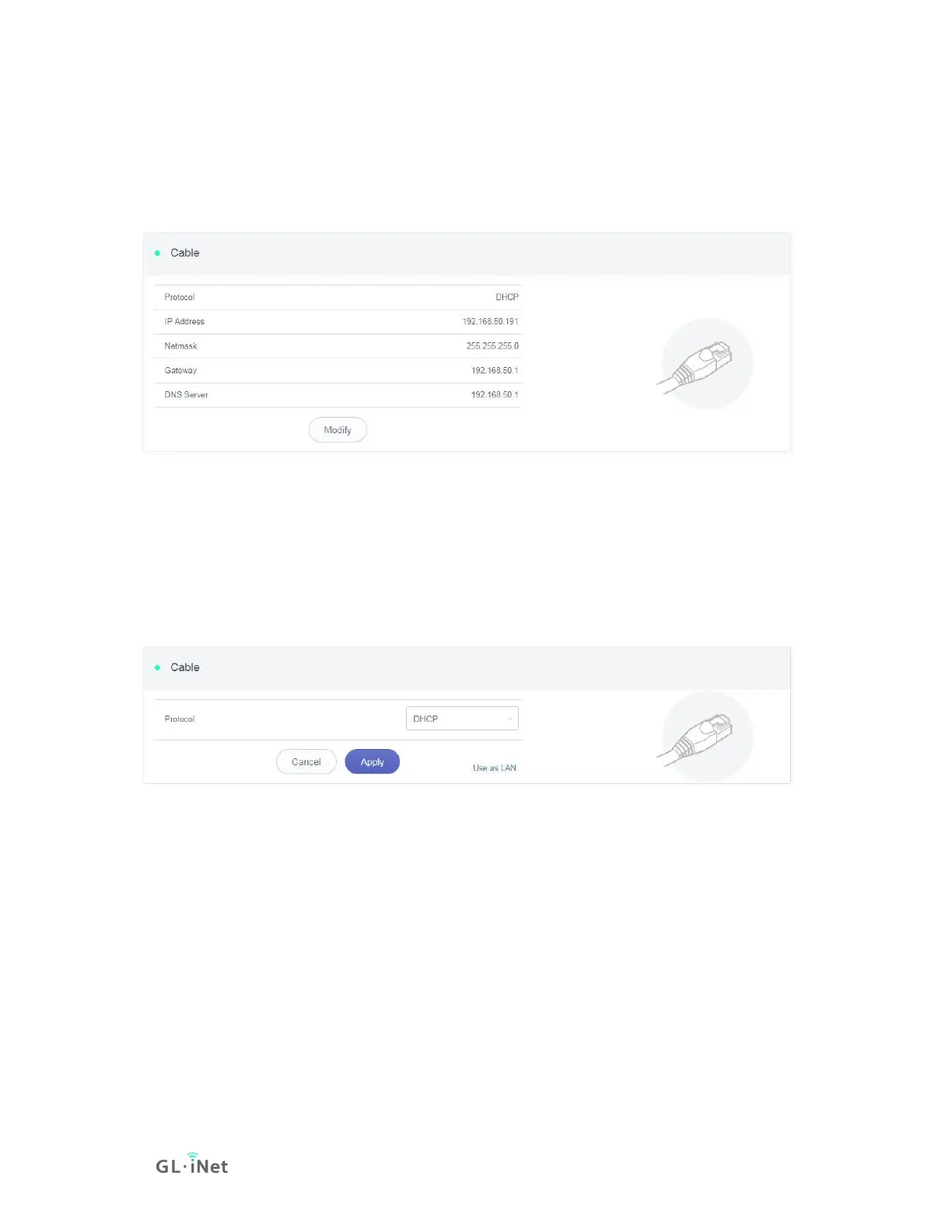

Plug the Ethernet cable into the WAN port of the router. The information of your
connection will be shown on the Cable section. DHCP is the default protocol. You
can click Modify to change the protocol.
(1) DHCP
DHCP is the default and most common protocol. It doesn't require any manual
configuration.
(2) Static
Static is required if your Internet Service Provider (ISP) has provided a fixed IP
address for you or you want to configure the network information such as IP
address, Gateway, Netmask manually.
The current settings will be automatically filled once you choose Static. Change it
according to your needs and then click Apply.

GL-INET GL-MT300N-V2 Series Specifications

General

RAM	128MB DDR2
Flash Storage	16MB
WiFi Standard	802.11b/g/n
WiFi Speed	300Mbps
USB Ports	1 x USB 2.0
Power Supply	5V/2A
Dimensions	58 x 58 x 25 mm
Operating System	OpenWrt
Processor	MediaTek MT7628NN
Ethernet Ports	2 x 10/100Mbps
