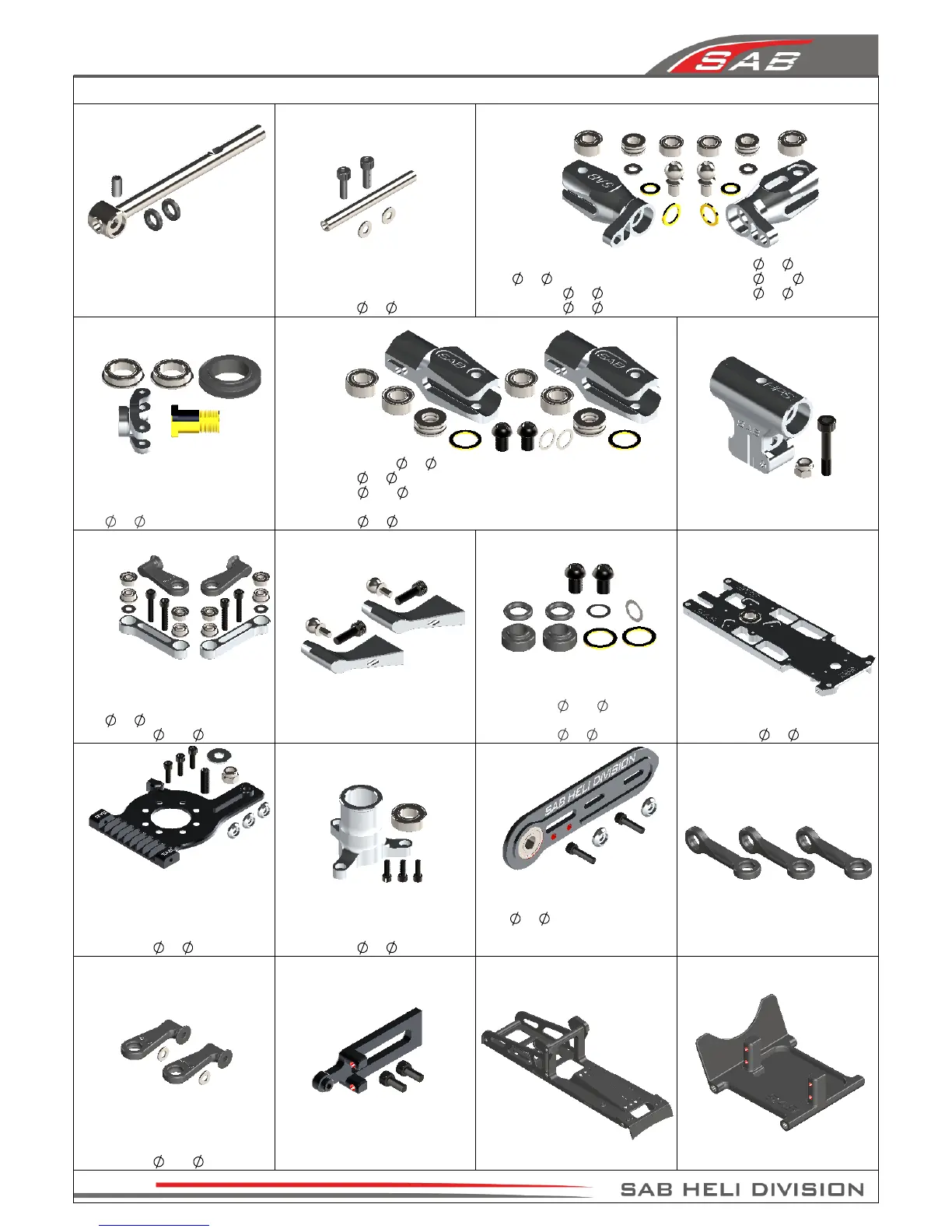

Goblin 420 - Page 36

Tail Shaft
[H0509-S]
- 1 x Tail Shaft.
- 1 x Tail Hub.
- 1 x Set Screw M3x6mm.
- 2 x Tail Damper.
Tail Spindle
[H0510-S]
- 1 x Tail Spindle.
- 1 x Socket Cap Screw M2x6mm.
- 2 x Washer
2x 4.5x0.5mm.
Tail Blade Grip
[H0511-S]
- 2 x Tail Blade Grip.
- 2 x Thrust Bearing
3x 6x2.5mm.
- 2 x Bearing
3x 7x3mm.
- 2 x Bearing
3x 6x2.5mm.
Tail Pitch Slider
[H0512-S]
- 1 x Tail Pitch Slider 01.
- 1 x Tail Pitch Slider 02.
- 1 x Tail Pitch Slider 03.
- 2 x Flanged Bearings
8x 12x3.5mm.
Main Blade Grip
[H0513-S]
- 2 x Blade Grip.
- 2 x Thrust Bearing
5x 10x4.
- 4 x Bearing
5x 10x4.
- 2 x Washer
7.5x 10x0.5.
- 2 x Button Head Socket Cap M4x6.
- 2 x Washer
5x 7x0.1.
Center Hub
[H0514-S]
- 1 x Center Hub.
- 1 x Socket Head Shoulder M3x16 .
- 1 x Metrix Hex Nylon Nut M3 .
Radius Arm
[H0516-S]
- 2 x Radius Arms.
- 2 x Uniball Radius Arms.
- 4 x Head Cap Screws M2x10mm.
- 8 x Flanged Bearings
2x 5x2.5.
- 2 x Washer
2.1x 5x0.5mm.
Blade Grip Arm
[H0517-S]
- 2 x Blade Grip Arm.
- 2 x Head Cap Screws M2.5x8.
- 2 x Uniball M2.
Damper Derlin
[H0518-S]
- 2 x Damper Derlin.
- 2 x Oring DI = 6.75, S = 1.78.
- 2 x Washer
7.5x 10x0.5.
- 2 x Button Head Cap M4x6.
- 2 x Washer
5x 7x0.1.
Main Plate
[H0519-S]
- 1 x Main Plate.
- 1 x Bearing 8x 16x5.
Motor Support
[H0520-S]
- 1 x Motor Support.
- 3 x Head Cap Screws M2.5x8.
- 3 x Finishing Washer M2.5.
- 1 x Set Screws M4x12.
- 1 x Metrix Hex Nylon Nut M4.
- 1 x Washer
4x 11x1mm.
Main Shaft Support
[H0522-S]
- 1 x Main Shaft Support.
- 3 x Head Cap Screws M2.5x8.
- 1 x Bearing 8x 16x5.
Aluminum Tail Plate
[H0523-S]
- 1 x Aluminum Tail Plate.
- 1 x Flanged Bearing
5x 13x4.
- 2 x Head Cap Screws M2.5x10.
- 2 x Finishing Washer M3.
Linkage Servo
[H0524-S]
- 3 x Aluminum Tail Plate.
Cros Tail Case
[H0526-S]
- 1 x Cros Tail Case.
- 2 x Head Cap Screw M2.5x6.
Plastic Landing Gear
[H0528-S]
- 1 x Plastic Landing Gear.
- 2 x Head Cap Screw M2.5x8.
- 2 x Finishing Washer M2.5.
Plastic Battery Support
[H0529-S]
- 1 x Plastic Battery Support.
Tail Servo Support
[H0530-S]
- 1 x Tail Servo Support.
Plastic Radius Arm
[H0525-S]
- 2 x Plastic Radius Arm.
- 2 x Washer
2.2x 5x0.3mm.
- 2 x Washer
3x 4.75x0.5mm.
- 2 x Washer
4.5x 5.9x0.5mm.
- 2 x Washer
2x 4.5x0.5mm.
- 2 x Uniball M3.
