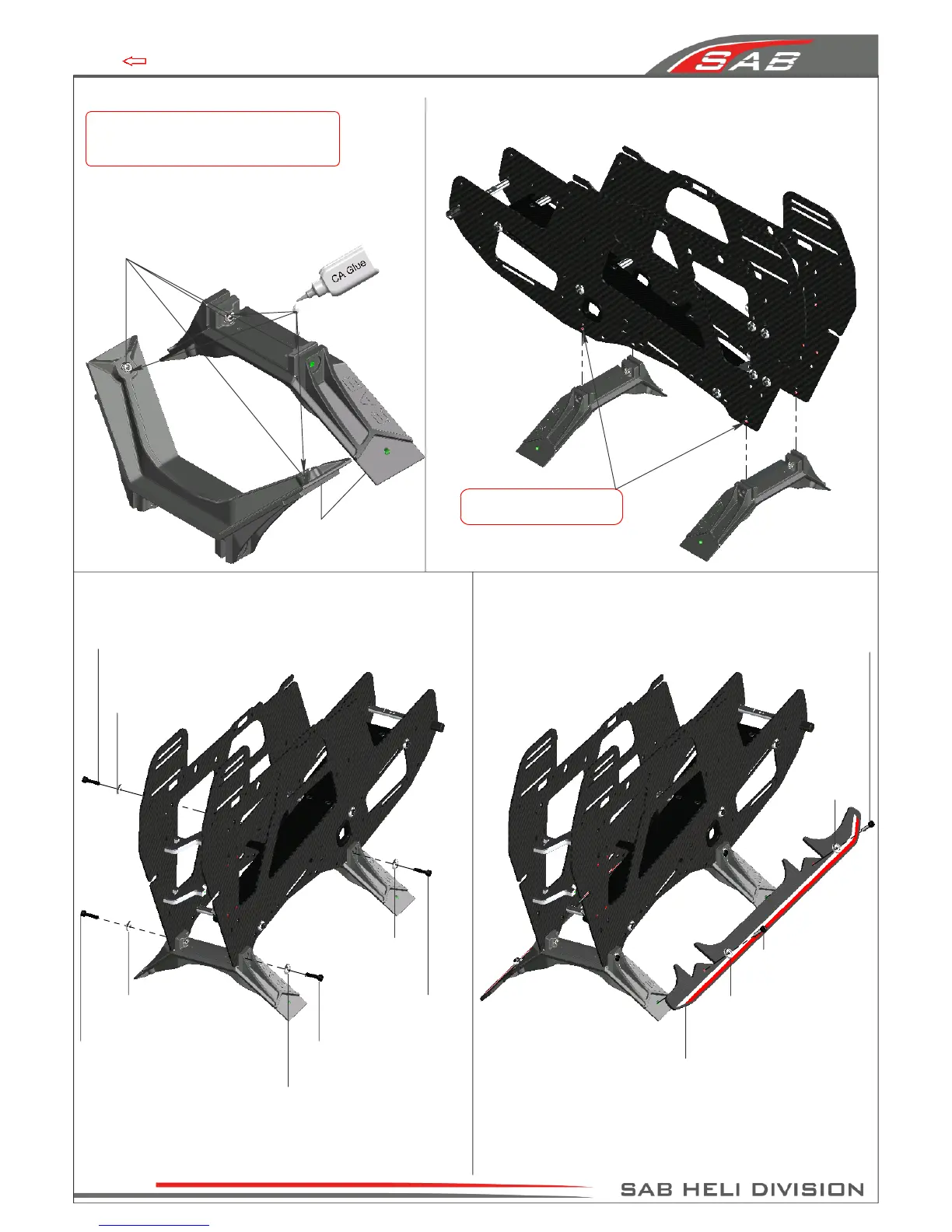

Note:
You can use Super Glue for block
the nuts in correct position
Note:
Use the lower hole
Socket Head Cap
Screw M3x16mm
(HC068-S)
Finishing
Washer M3
(H0007-S)
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x16mm
(HC068-S)
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x12mm
(HC062-S)
Socket Head Cap
Screw M3x12mm
(HC062-S)
Finishing Washer M3
Socket Head Cap Screw M3x12mm
Metric Hex
Nylon Nut M3
(HC206-S)
Socket Head Cap Screw M3x10mm
.....x4
.....x4
.....x8
.....x8
Carbon Landing Gear
(H0446-S)
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x16mm
(HC068-S)
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x16mm
(HC068-S)
Finishing
Washer M3
(H0007-S)
Landing Gear
Support
(H0344-S)
Bag 2
Chapter 4, Carbon Frame
Page 8
