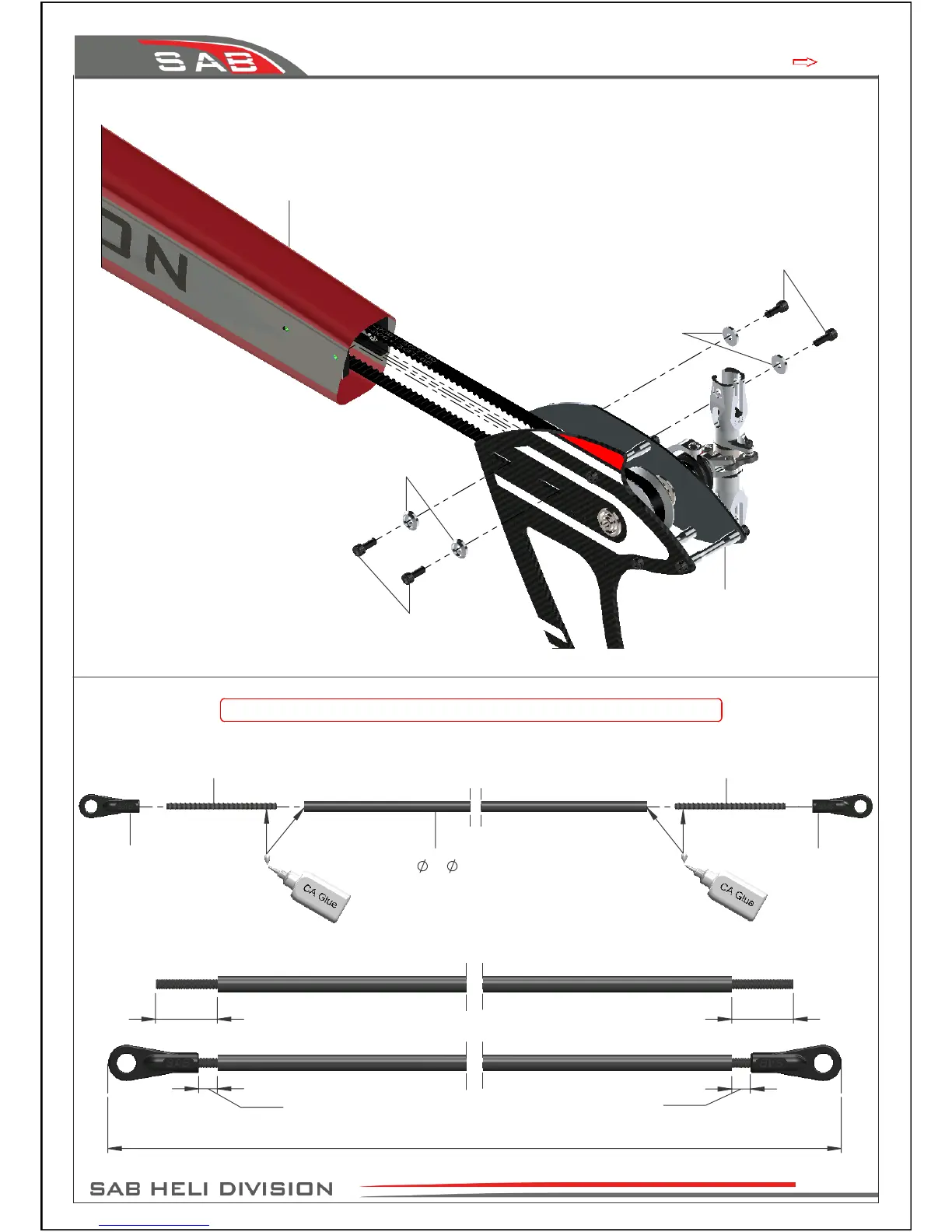

Goblin urukay - Chapter 12, Tail; Tail Boom Assembly Steps

7mm
7mm
Approx 912mm
16mm16mm
Finishing Washer M3
(H0007-S)
Socket Head Cap
Screw M3x12mm
(HC062-S)
Tail Boom
Assembly
Plastic Ball Link
(H0066-S)
Carbon Road Urukay
4x 2.5x854mm
(HC451-S)
Threaded Rod M2.5x40mm
(HC242-S)
Note:
Socket Head Cap
Screw M3x12mm
(HC062-S)
Finishing Washer M3
(H0007-S)
Tail System Assembly
Threaded Rod M2.5x40mm
(HC242-S)
Plastic Ball Link
(H0066-S)
Bag 14
Note: Before put plastic ball in threaded rod, please wait 12 hours after bonding
Chapter 12, Tail
Page 27
