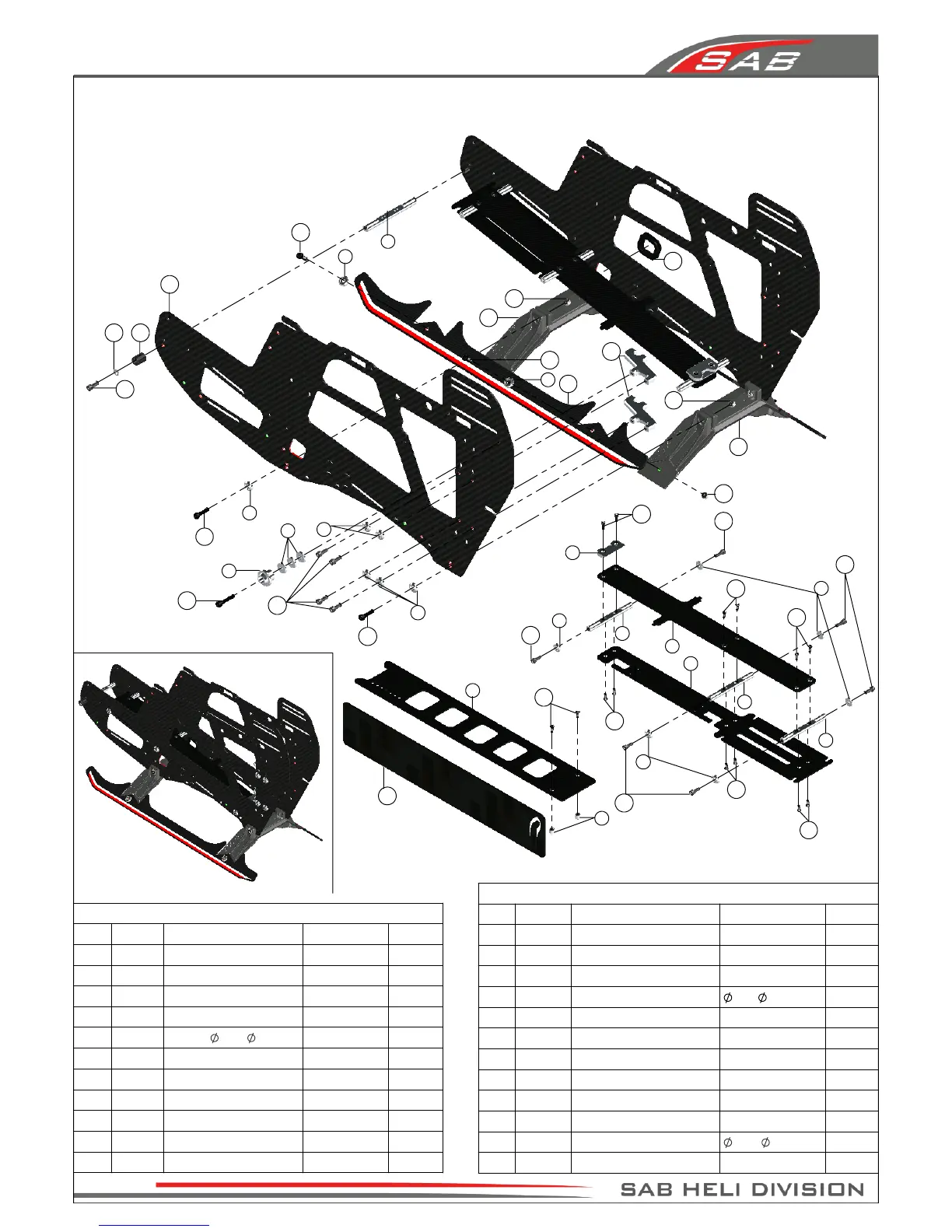

Goblin urukay - Exploded View, Carbon Frame

1
2
2
2
3
3
9
10
18
18
18
18
21
21
17
21
21
21
19
5
11
11
14
3
3
3
3
16
13
12
19
15
2
17
18
20
20
18
18
4
23
23
23
3
22
3
6
7
8
Main Frame
Main Frame
POS COD Name Specification Quantity
1 H0002 Battery Tray Carbon Fiber 1
2 H0003 Frame Spacers Aluminum 4
3 H0007 Finishing Washers M3 Aluminum 14
4 H0008 Canopy Poitioner Aluminum 2
5 H0078
Washer 3,1x 1,2x1.8
Aluminum 6
6 H0149 Battery Plate Carbon Fiber 1
7 H0150 Stop Battery Plate Aluminum 1
8 H0151 Cylinder M2.5 Aluminum 2
9 H0153 Battery Support Carbon Fiber 1
10 H0153-1 Battery Protection Carbon Fiber 1
11 H0344 Landing Gear Support Plastic 2
POS COD Name Specification Quantity
12 H0436
Tail Servo Support
Aluminum 2
13 H0445 Main Frames Carbon Fiber 2
14 H0446 Yellow Landing Gear Carbon Fiber 2
15 HA010 Cable Pass
16 x 24 x 2mm 1
16 HA016 Canopy Positioners Rubber 2
17 HC020 Socket Head Cap Screws M2.5 x 8mm 6
18 HC056 Socket Head Cap Screws M3 x 10mm 16
19 HC062 Socket Head Cap Screws M3 x 12mm 2
20 HC068 Socket Head Cap Screws M3 x 16mm 4
21 HC128 Flat Head Cap Screws M2.5 x 5mm 12
22 HC180
Washer 3,2x 6x0.5
2
23 HC206 Metric Hex Nylon Nut M3 8
Page 34
Chapter 17, Exploded view, Carbon Frame
