DE-BURR THE SIDE FRAMES
We recommend de-burring the edges of the carbon parts in areas where electrical wires run.
ESC INSTALLATION
The speed controller (ESC) is installed in the front of the helicopter.

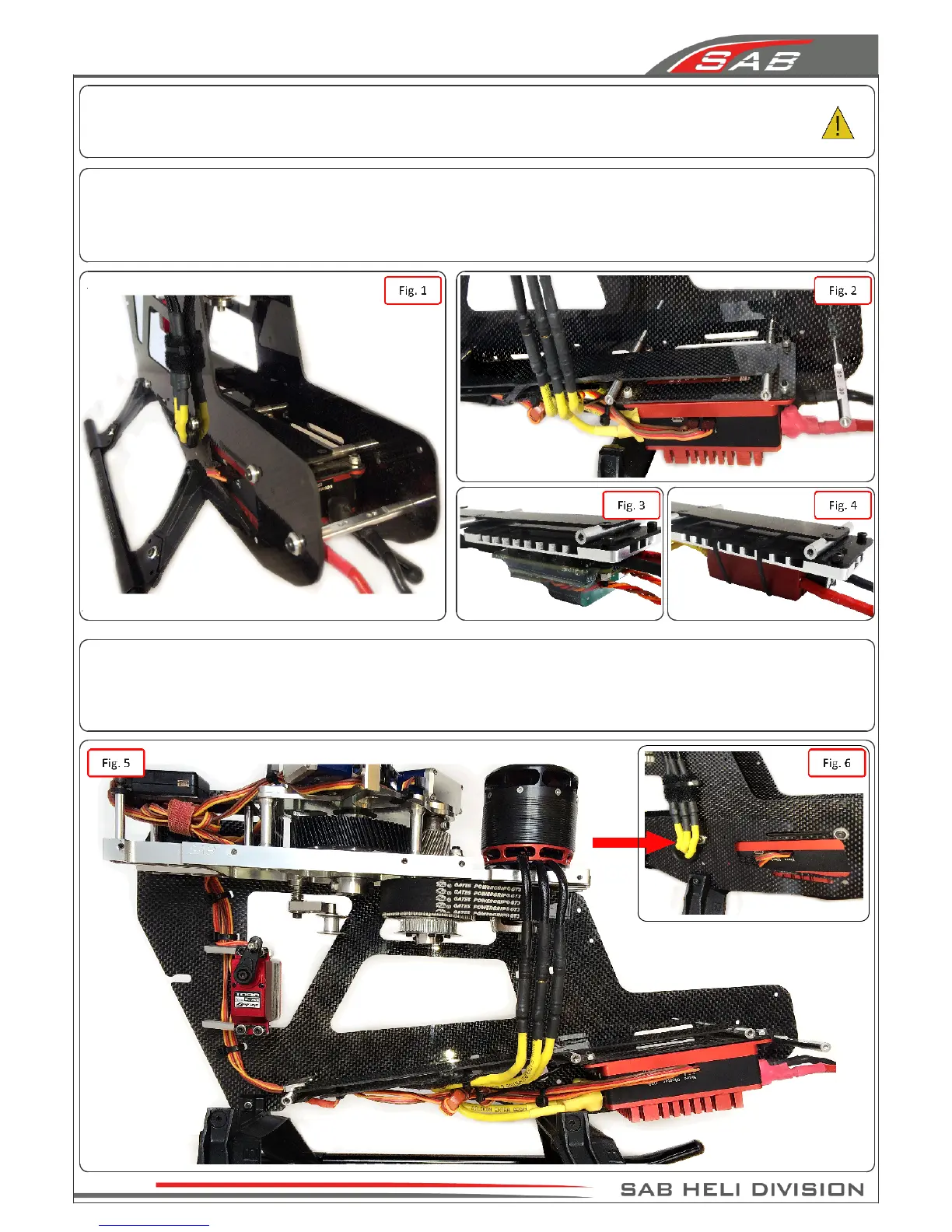

Figure 1 shows the mounting area. Figure 2 shows the installation of the Kosmik ESC from Kontronik.
You can also use the heat sink (H0165-S) if you wish for improved cooling (Figure 3,4)
Figure 5
: Shows the wiring which connects the receiver and ESC (in this picture one frame has been removed).
If the BEC used is combined with the ESC, it is recommended to use a dual wire connection and a unit battery backup.
Figure 6
: The passage of the controller wires to the motor is highlighted.
ESC Cables
2S Battery or BEC
Page 20
Chapter 10, Installation Of The ESC
