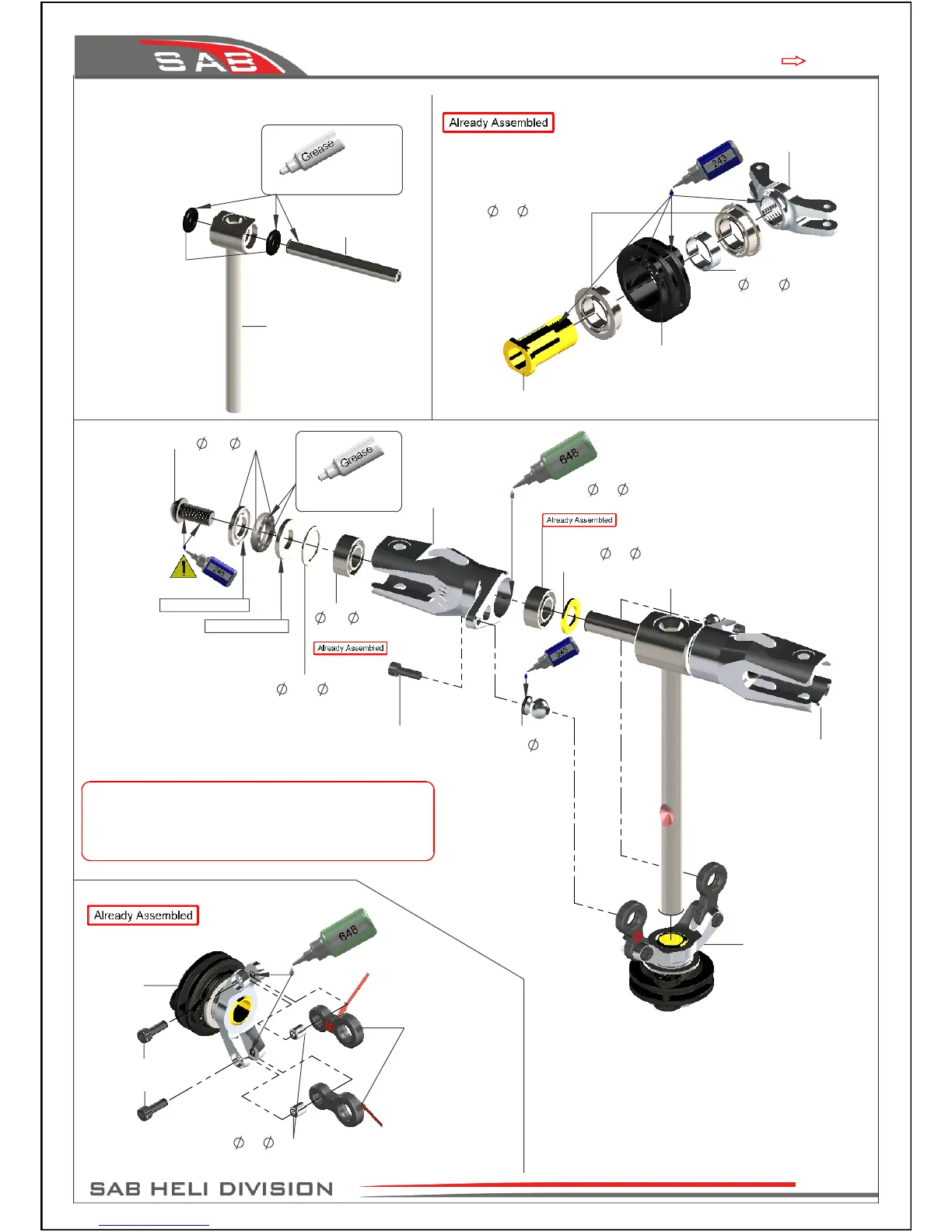

Goblin urukay - Chapter 12, Tail System (2 Tail Blade); Tail Rotor Hub Assembly

Bearing 5x 9x3mm
(HC406-S)
Tail Pitch Slider 01
[H0055]
Bearing
5x 10x4mm
(HC411-S)
Uniball
M2.5x
5H6
(H0064-S)
Tail Rotor Hub Assembly
Tail Blade Grip
Assembly
Tail Pitch Slider Link
Assembly
Tail Pitch Slider Link Assembly
Tail Pitch Slider
Assembly
Tail Pitch Slider Link
(H0261-S)
Tail Blade Grip
(H0327-S)
Tail Blade Grip Assembly .... x 2
(H0052-S)
Flanged Bearing
8x 12x3.5mm
(HC418-S)
Tail Pitch Slider 02
(H0407-S)
Spacer
8.1x 9.2x3.2mm
[H0029]
Tail Pitch Slider 03
[H0054]
Tail Pitch Slider Assembly
Oring
(HC335-S)
Tail Shaft
(H0325-S)
Tail Rotor Hub Assembly
Spacer 5x 9x0.75mm
(H0330-S)
Thrust Bearing
5x 10x4mm
(HC435-S)
Bearing
5x 10x4mm
(HC411-S)
Socket Head Cap
Screw M2x6mm
(HC004-S)
Buttom Head Cap
Screw M4x6mm
(HC096-S)
Note : Smaller ID
Note : Larger ID
Spacer
7.5x 10x0.5mm
(H0349-S)
Socket Head Cap
Screw M2x6mm
(HC004-S)
Spacer
2x 3x3mm
(H0076-S)
Note: S >> Left Side
Note: S >> Right Side
Note:
It is a normal for the tail to feel a bit tight after initial
assembly as the tail spindle preload is ussually high when
the helicopter is brand new. The preload will loosen up
after 2-5 flights allowing the system to become smooth.
Bag 10A
Spindle Shaft
(H0329-S)
eg: Microlube GL261
eg: Microlube
GL261
Page 23
Chapter 12, Tail System ( 2 Tail Blade )
