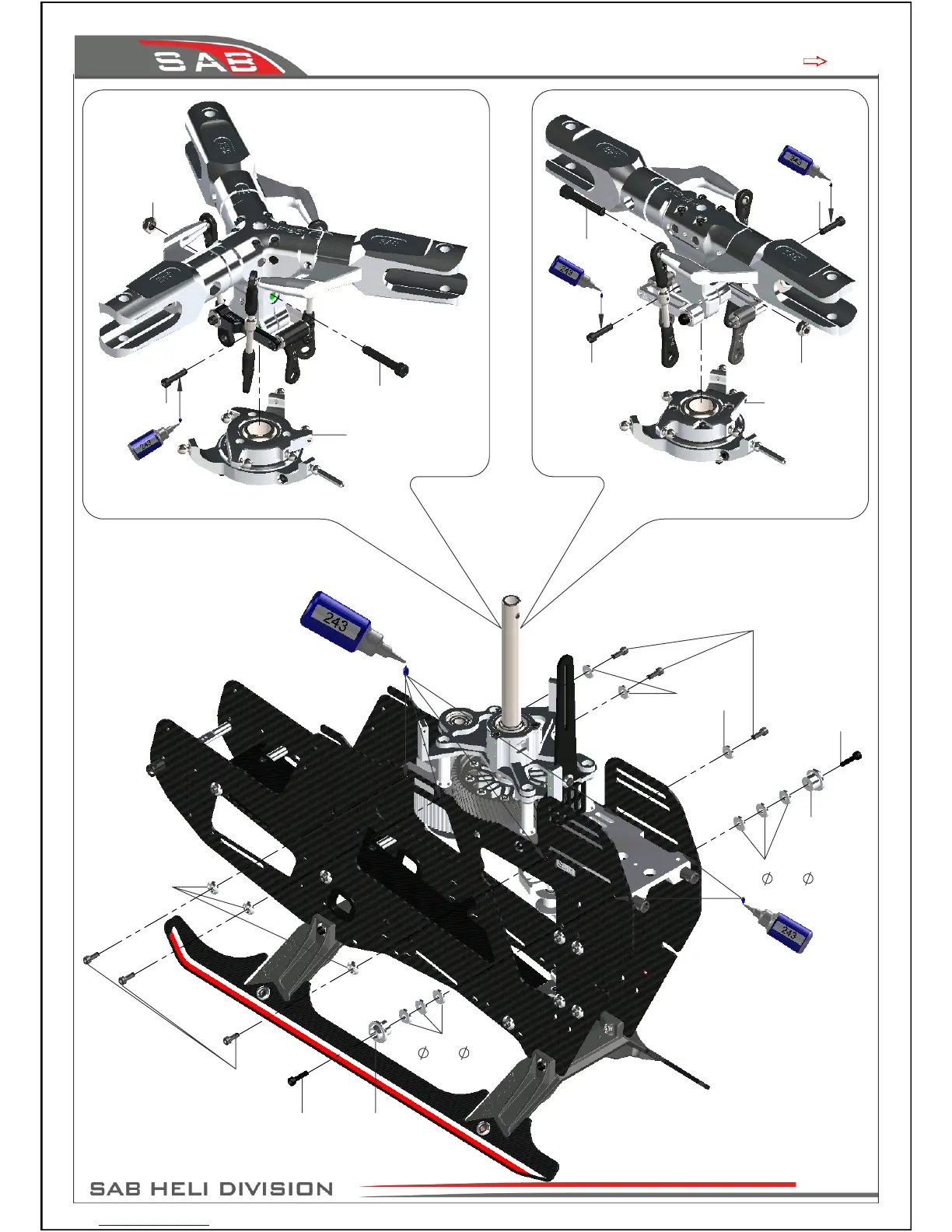

Goblin urukay - Chapter 7, Assembling The Modules; Module Assembly (Bag 8)

Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x8mm
(HC050-S)
Canopy
Position
(H0008-S)
Head HPS2
Assembly
Socket Head Cap
Screw M3x8mm
(HC050-S)
[HC212-S]
[HC111-S]
Finishing
Washer M3
(H0007-S)
Swashplate HPS3
Assembly
[H0420-S]
[HC062-S]
Head Cap Screw
M3x12mm
(HC062-S)
Head HPS3
Assembly
[HC062-S]
[HC212-S]
[HC111-S]
Swashplate HPS2
Assembly
[H0422-S]
[HC062-S]
Canopy
Position
(H0008-S)
Head Cap Screw
M3x12mm
(HC062-S)
Washer
3,1x 1,2x1.8
(H0078-S)
Washer
3,1x 1,2x1.8
(H0078-S)
Bag 8
Page 15
Chapter 7, Assembling The Modules
