HEAD SYSTEM
HEAD SYSTEM
POS COD Name Specification Quantity
1 H0031 Uniball Spacers Aluminum 3
2 H0063 Uniballs M3 x 4
5 H18 1
3 H0064 Uniballs M2.5
5 H6 3
4 H0065 Uniballs M3 x 4
5 H3 6
5 H0066 Plastic Ball Linkages Plastic 6
6 H0075 Servo Spacers Carbon Fiber 6
7 H0132 Radius Arms Aluminum 2
8 H0134 Spacer Arm
3 x 5 x 2.7mm 2
9
H0158
Blade Washers 5 x 24 x 1mm 4
10 H0182 Main Blade Grips Aluminum 2
11 H0183 Blade Grip Arms Aluminum 2
12 H0205 Unibal Radius Arms Plastic 2
13
H0235
Spacer Arm 2.5 x 4 x 6.3mm 2
14 H0402 Ball Linkages Plastic 4
15 H0411 Center Hub Aluminum 1
16 H0412 Spindle Carbon Steel 2
17 H0413 Pin 5 mm Carbon Steel 2
18 H0417 Linkages Rod Carbon Steel 2
19 H0420-01 Swashplate 01 Aluminum 1
20 H0420-03 Swashplate 03 Carbon Steel 1
21 H0420-04 Swashplate 04 Aluminum 1
22 H0422-02 Swashplate 02 Aluminum 1
23 H0426 Damper Derlin POM Black 2
24 H0437 Uniball M3 Carbon Steel 2
25 HC002 Socket Head Cap Screws M2 x 5mm 3
26 HC008 Socket Head Cap Screws M2 x 8mm 7
POS COD Name Specification Quantity
27 HC018 Socket Head Cap Screws M2.5 x 6mm 4
28 HC020 Socket Head Cap Screws M2.5 x 8mm 3
29 HC026 Socket Head Cap Screws M2.5 x 12mm 9
30 HC032 Socket Head Cap Screws M2.5 x 18mm 2
31 HC044 Socket Head Cap Screws M3 x 6mm 3
32 HC062 Socket Head Cap Screws M3 x 12mm 3
33 HC068 Socket Head Cap Screws M3 x 16mm 2
34 HC102 Socket Head Cap Screws M4 x 10mm 2
35 HC111 Socket Head Cap Screw Shouldereds M4 x 24mm 1
36 HC116 Socket Head Cap Screw Shouldereds M5 x 35mm 2
37 HC124 Socket Head Cap Screws M6 x 10mm 2
38 HC170 Washers
2 x 5 x 0.5mm 3
39 HC176 Washers
3 x 4 x 0.5mm 2
40 HC194 Washers
6 x 14 x 1.5mm 2
41 HC212 Metric Hex Nylon Nuts M4 H5 1
42 HC218 Metric Hex Nylon Nuts M5 H4.8 2
43 HC230 Washers
10 x 16 x 1mm 4
44 HC232 Washers
10 x 16 x 0.2mm 2
45 HC242 Threaded Rods M2.5 x 40mm 3
46 HC400 Flanged Bearings
2.5 x 6 x 2.5mm 4
47 HC402 Flanged Bearings
3 x 7 x 3mm 4
48 HC422 Bearings
10 x 19 x 5mm 4
49 HC438 Thrust Bearings
10 x 18 x 5.5mm 2
50 HC430 Bearing Rads
30 x 37 x 4mm 2
51 HA024 Oring 3050 2
Page 36

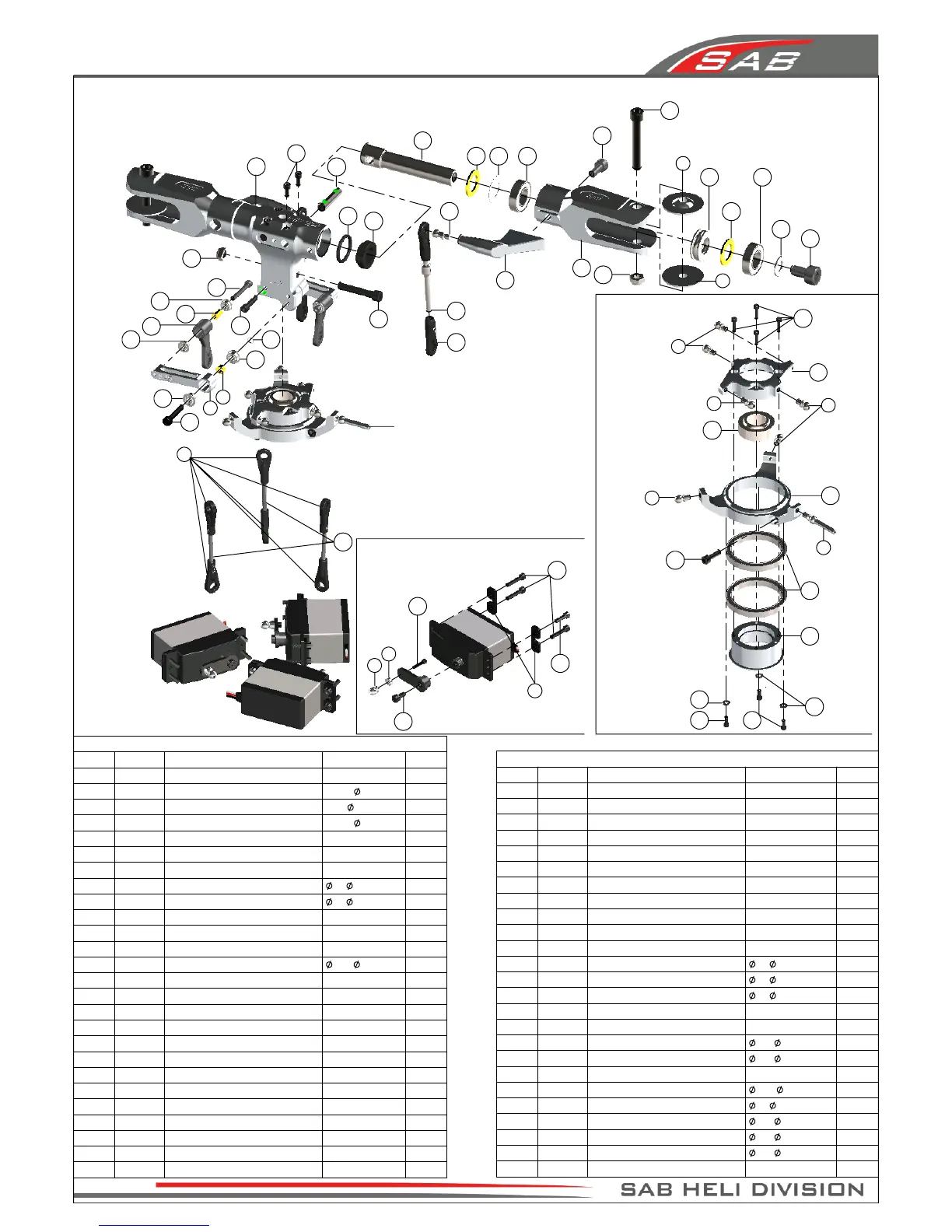

Chapter 17, Exploded view, Head System
