A
B
Battery Plate
(H0149-S)
Cylinder M2.5
(H0151-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Flat Head Cap Screw
M2.5x5mm
......x2

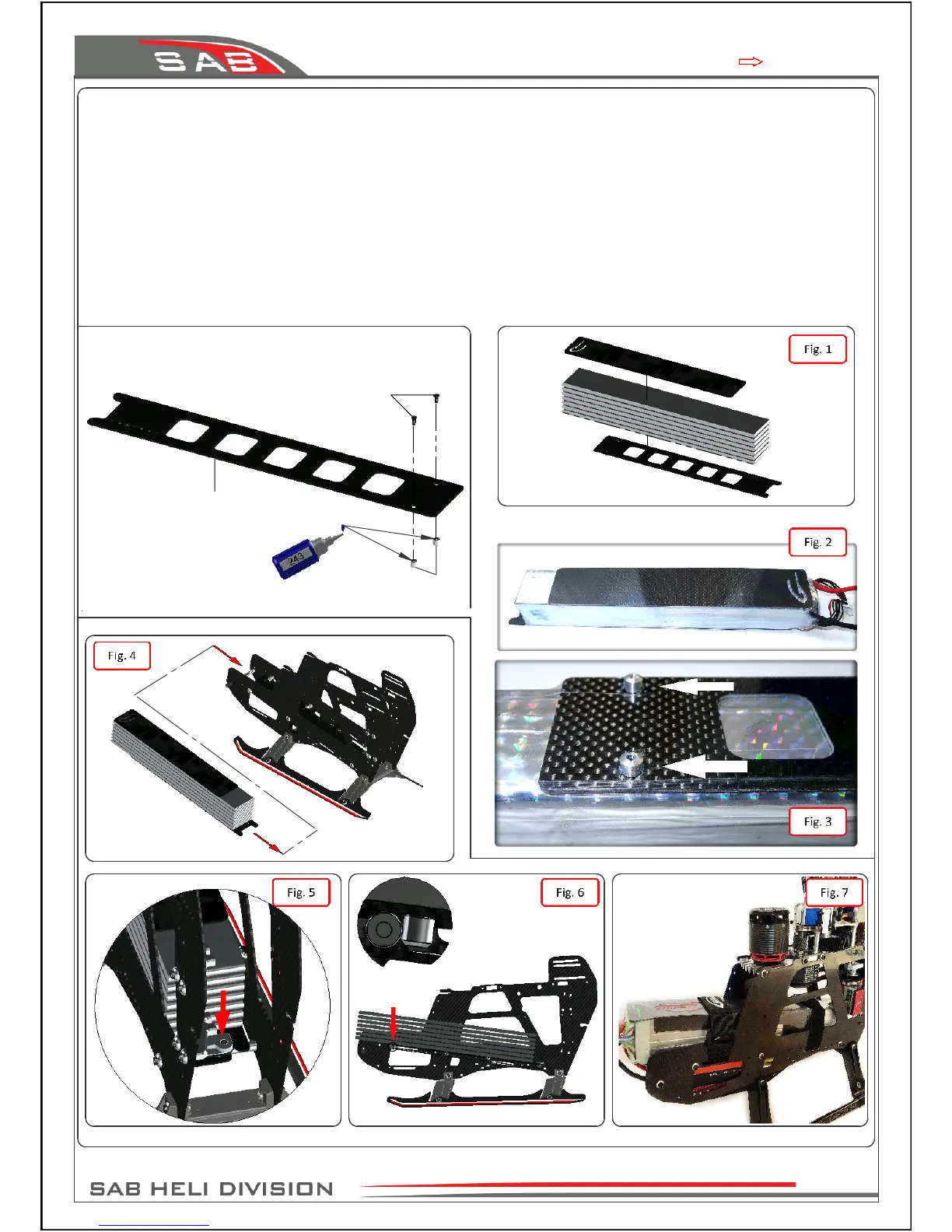

BATTERIES
The battery tray system in the Goblin URUKAY is simple, but very effective.
The battery should be attached to the tray (Part
H0149
) with heat shrink, tape or velcro.
You can optionally use the battery protection tray (Part
H0151
) see
Fig. 1, 2
.
Before permanently mounting the batteries onto the battery tray, check the ideal position for the best center of gravity.
Cut the heat shrink around the carbon fiber tray locking pins. Fig. 3.
Battery Pack:
Slide the tray until it locks into the CNC stopper.
Fig. 4, 5
.
Using the velcro straps, making sure that the two locking pins are stopped against the frame spacer
(P/n #
H0003
and #
H0151
)
Fig.6, 7
.
Box 6, Bag 19
Page 31
Chapter 14, Battery
