FLYBARLESS CONTROL UNIT AND RX INSTALLATION
It is possible to install any commercially available Flybarless control unit in the goblin.
For Flybarless systems with a separate sensor, the sensor must be installed under the plate ( Figure 1 ).

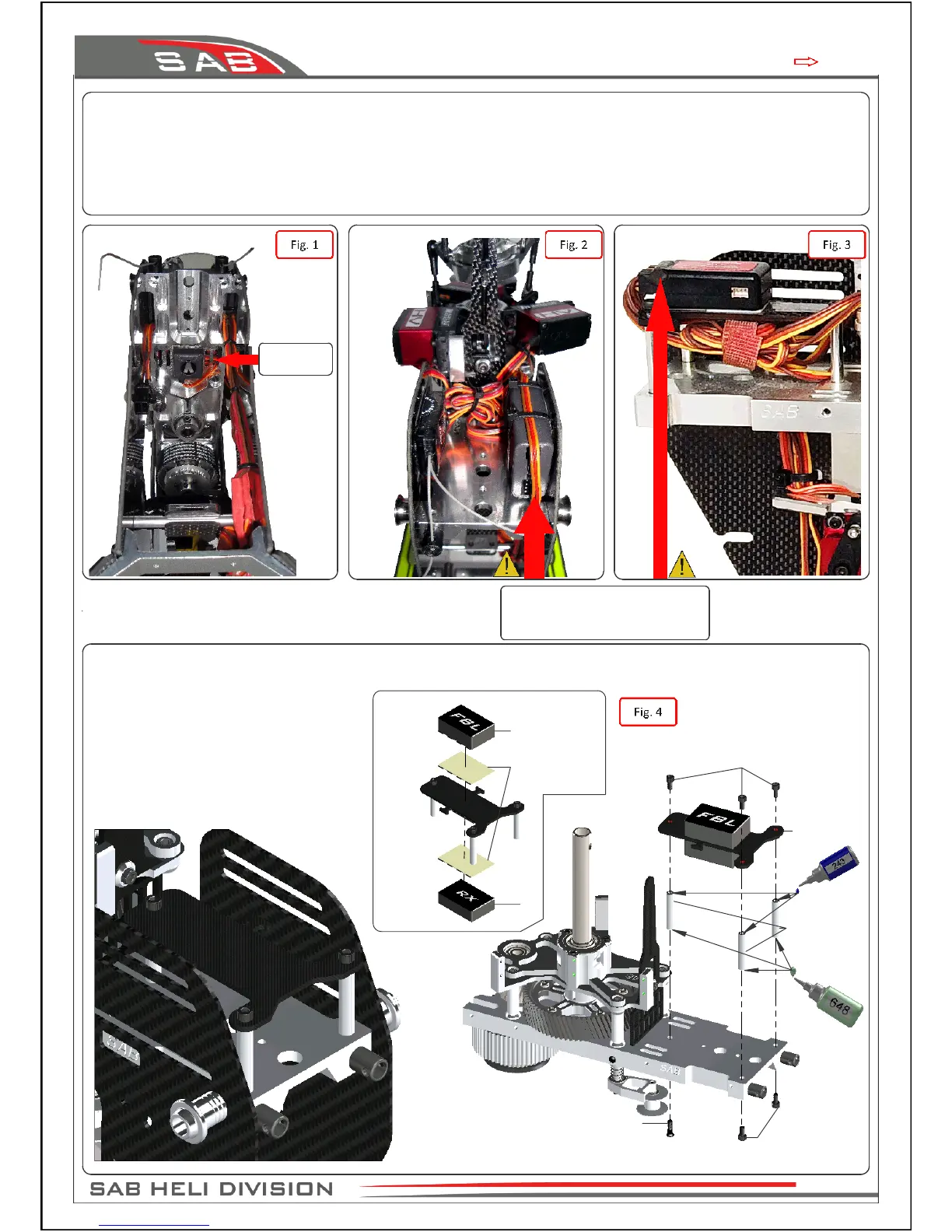

Figure 2 and Figure 3 shows an example of installation of the receiver and flybarless control unit.
Slot for
sensor cable
It is important to lock the plugs of
the flybarless unit with an
adhesive - for example hot glue.
Tail servo extension cable
To install a one piece Flybarless system it is necessary to add the support shown in these figures. Figure 3 shows the
installed support. Figure 4 shows the control unit and the receiver installed on the support.
Support
Flybarless
[H0077]
Spacer Support
Flybarless
(H0043-S)
RX
Flate Head Cap Screw M3x8mm
(HC134-S)
Socket Head Cap
Screw M3x6mm
(HC044-S)
Flybarless Unit
Socket Head Cap
Screw M3x6mm
(HC044-S)
Double-sided
Tape
Bag 18
