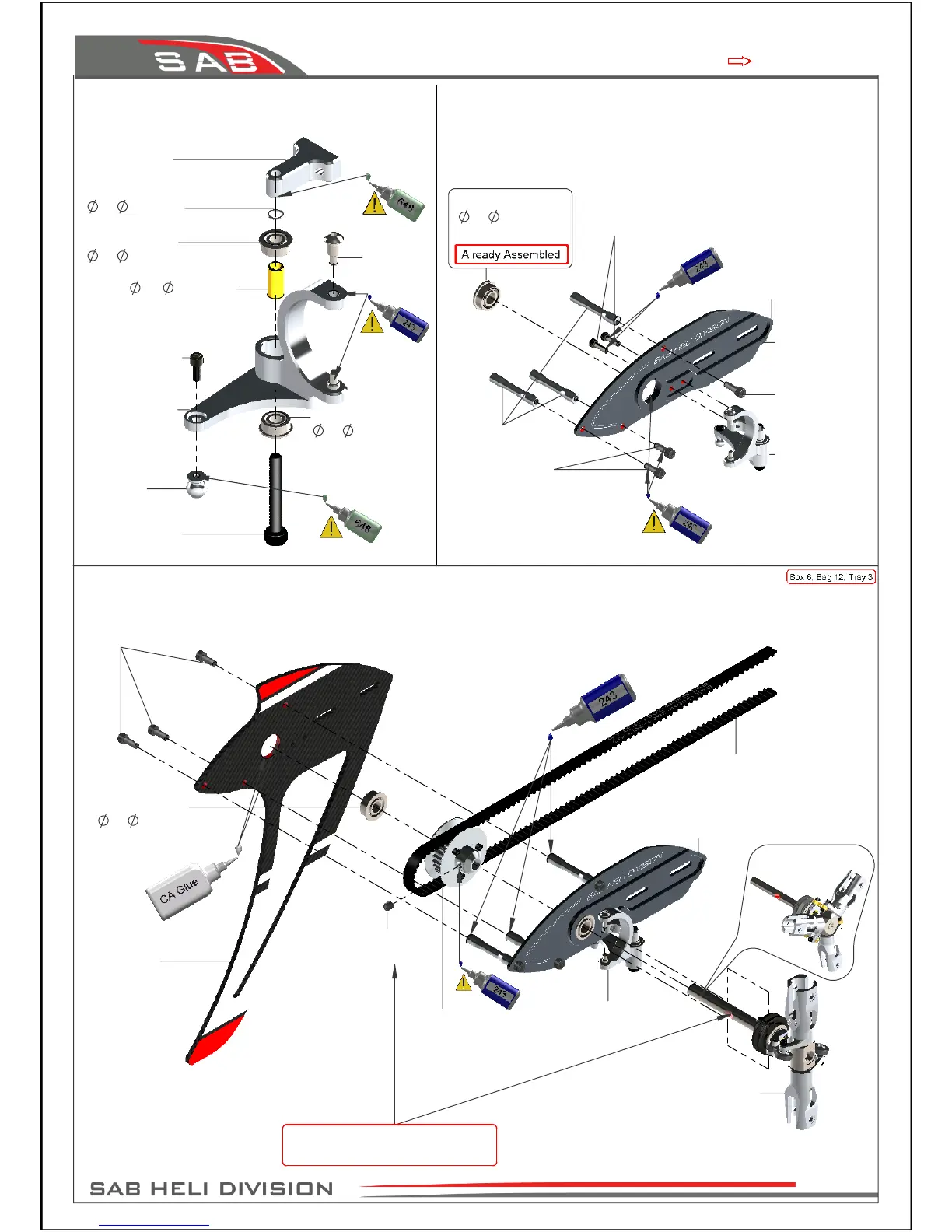

Goblin urukay - Bell Crank Lever Assembly; Tail Side Plate Assembly

Tail Side Plate
Assembly
Note:
The set screw should align
with the hole in the tail shaft
Socket Head Cap
Screw M3x8mm
(HC050-S)
Tail Case Spacer
(H0061-S)
25T Pulley
(H0155-S)
Bell Crank Lever
Assembly
Flanged Bearing
6x 13x5mm
(HC414-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Tail Side
Alluminum Case
(H0444-S)
Vertical Fin
(H0452-S)
Tail Side Plate Assembly
Socket Head Cap
Screw M3x8mm
(HC050-S)
Tail System Assembly
Belt Gates
2160-3GT-06
(HC325-S)
Set Screw
M4x6mm
(HC153-S)
Tail Rotor System
HPS2 Assembly
Flanged Bearing
6x 13x5mm
(HC414-S)
Socket Head Cap
Screw M3x22mm
(HC086-S)
Uniball M2
(H0064-S)
Bell Crank Lever
(H0406-S)
Socket Head Cap
Screw M2x5mm
(HC002-S)
Flanged Bearing
3x 7x3mm
(HC402-S)
Washer
3x 4x0.5mm
(HC176-S)
Bell Crank Base
(H0058-S)
Bell Crank Lever Assembly
Spacer 3 x 4 x 9.6mm
[H0060]
Bell Crank Lever
Assembly
Tail Pin
(H0264-S)
Flanged Bearing
3x 7x3mm
(HC402-S)
Socket Head Cap
Screw M3x8mm
(HC050-S)
Tail System HPS3
Bag 11, Bag 12
Page 25
Chapter 12, Tail
