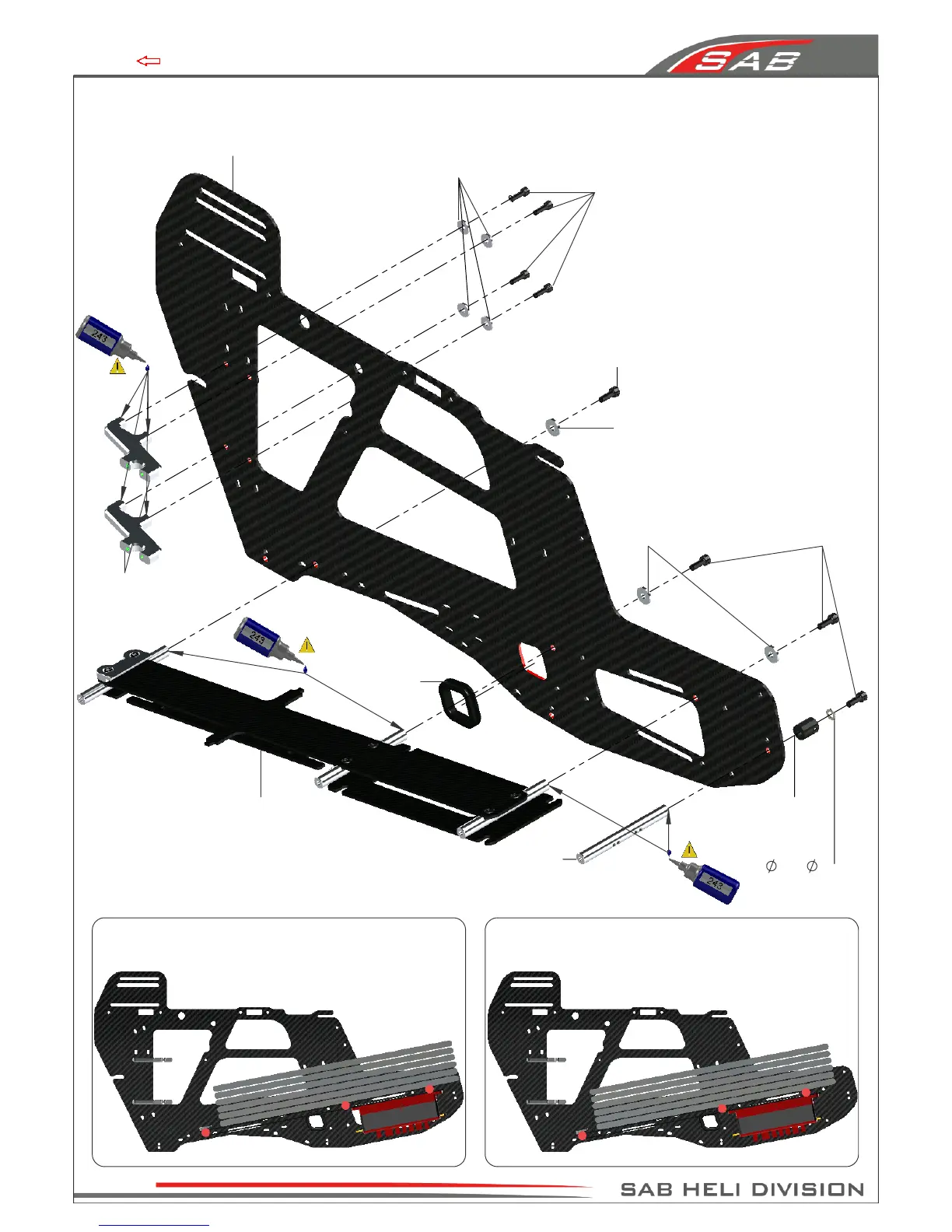

Goblin urukay - Main Frame Assembly

Frame Spacer
(H0003-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Finishing
Washer M3
(H0007-S)
Battery Tray
Assembly
Main Frame
(H0445-S)
Tail Servo Support
(H0436-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Finishing
Washer M3
(H0007-S)
Finishing
Washer M2.5
(H0255-S)
Left Main Frame Assembly
Cable Pass
(HA010-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Canopy
Positioners
(HA106-S)
Washer
3,2x 6x0,5
(HC180-S)
Bag 1.2
Font Position for Battery Support
( Light Batteries < 1500-1600g )
Back Position for Battery Support
( Heavy Batteries > 1600-1700g )
Page 6
Chapter 4, Carbon Frame
