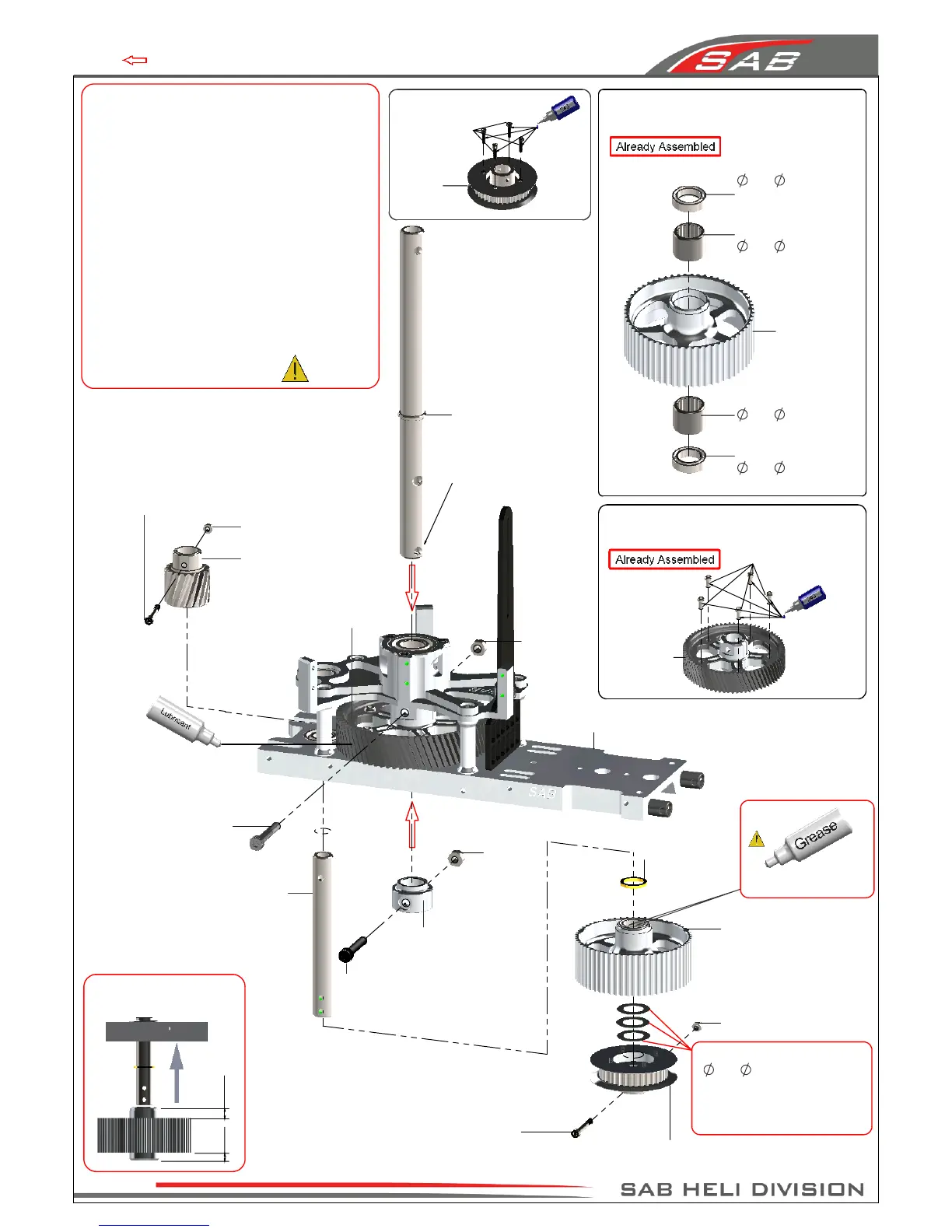

Goblin urukay - Bag 4 Assembly Steps

One Way Bearing
10x 14x12mm
(HC442-S)
60T Pulley Assembly
(H0171-S)
Bearing
10x 15x4mm
(HC420-S)
Socket Head Cap Screw
Shouldered M2.5x19mm
(HC033-S)
One Way Bearing
10x 14x12mm
(HC442-S)
Bearing
10x 15x4mm
(HC420-S)
Front Tail Pulley Low
Assembly
(H0172-S)
Main Gear Assembly
(H0405-S)
6.25
4.8
Main Shaft
(H0127-S)
Main Structure
Assembly 1
Note 1:
When you tighten the collar ( H0121-S ) on
the main shaft, ensure there is no axial play.
Push down the main shaft while pulling up the
locking collar. Tighten the screw M4x22 at this
time.
Note 2:
The pinion and gear are designed to have
zero backlash. This leads to initial “rough”
rotation. After some run in flights ( 3-5 flights ) it
will begin to rotate freely, ensuring perfect
contact and the ability to transmit maximum
power.
It is very important to lubricate these two
elements with a lubricant
( Dry Fluids Gear or similar).
Socket Head Cap Screw M4x22mm
......x1
Socket Head Cap Screw
Shouldered M4x24mm
(HC111-S)
Socket Head Cap Screw Shouldered
M2.5x18mm
Socket Head Cap Screw Shouldered
M4x24mm
......x1
......x2
Metric Hex
Nylon Nut
(HC212-S)
Metric Hex Nylon
Nut M4
(HC212-S)
Socket Head Cap
Screw M4x22mm
(HC104-S)
Socket Head Cap
Screw Shouldered
M3x18mm
(HC079-S)
60T Pulley
(H0171-1)
60T Pulley Assembly
(H0171-S)
Metric Hex Nylon Nut M4
......x2
Socket Head Cap
Screw M2x10mm
(HC010-S)
Front Tail Pulley Assembly
(H0172-S)
Bush One Way
(H0110-S)
Note:
Put a small amount of grease
every 30/40 flights on the main
gear (for example Tri- flow
Synthetic grease)
Note 2
The perfect play is 0.5mm
add or remove shim for this
Note: Correct insertion
of the one-way pulley
Washer
10x 16x0.2mm
(HC232-S)
Check the axial play
See Note 1.
37T Pulley
(H0172-S)
Secondary Shaft
(H0157-S)
M4 Locking Collar
(H0121-S)
Metric Hex Nylon
Nut M2.5
(HC200-S)
Main Gear
(H0405-S)
Metric Hex Nylon
Nut M3
(HC206-S)
19T Drive Pinion
(H0156-S)
eg: Microlube GL261
Bag 4
Main Gear
(H0405-S)
Screw M3x8mm
Page 10
Chapter 5, Transmission Assembly
