GOM ATOS COMPACT SCAN 5M - 3 D Ball Head Operation; Sensor Positioning; Sensor Fixture Mechanism

Positioning of Sensor
Operation of 3D Ball Head
Page 14 (40)
atos_cs_rev01_en_rev-c 2012-09-03

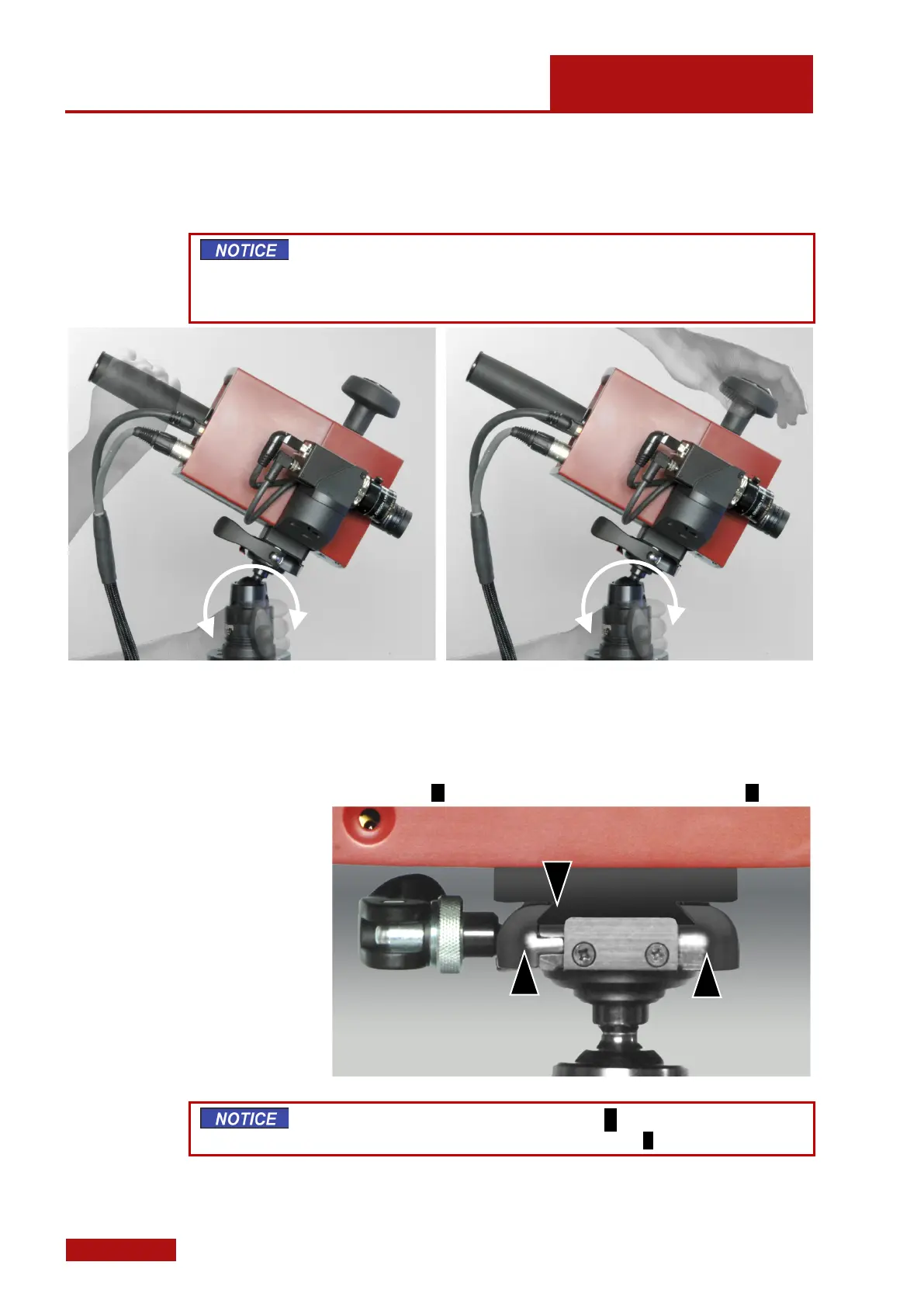

7. Operation of 3D Ball Head
7.1 Positioning of Sensor
Always position the sensor using both of your hands (see figure be-
low), one hand at one of the sensor handles and the other hand at
the locking screw of the 3D ball head.
Only this way you can position the sensor safely.
Adjustment of sensor on stand
7.2 Sensor Fixture
7.2.1 Mechanism of Sensor Fixture
A wedge plate e holds the sensor in the locking mechanism f .
Clamped sensor fixture (front view)
Always make sure that the wedge plate e really holds the sensor
correctly and firmly in the locking mechanism f !
e
f
f
