GOM ATOS COMPACT SCAN 5M - Fixture of Sensor on Locking Mechanism

Sensor Fixture
Operation of 3D Ball Head
Page 16 (40)
atos_cs_rev01_en_rev-c 2012-09-03

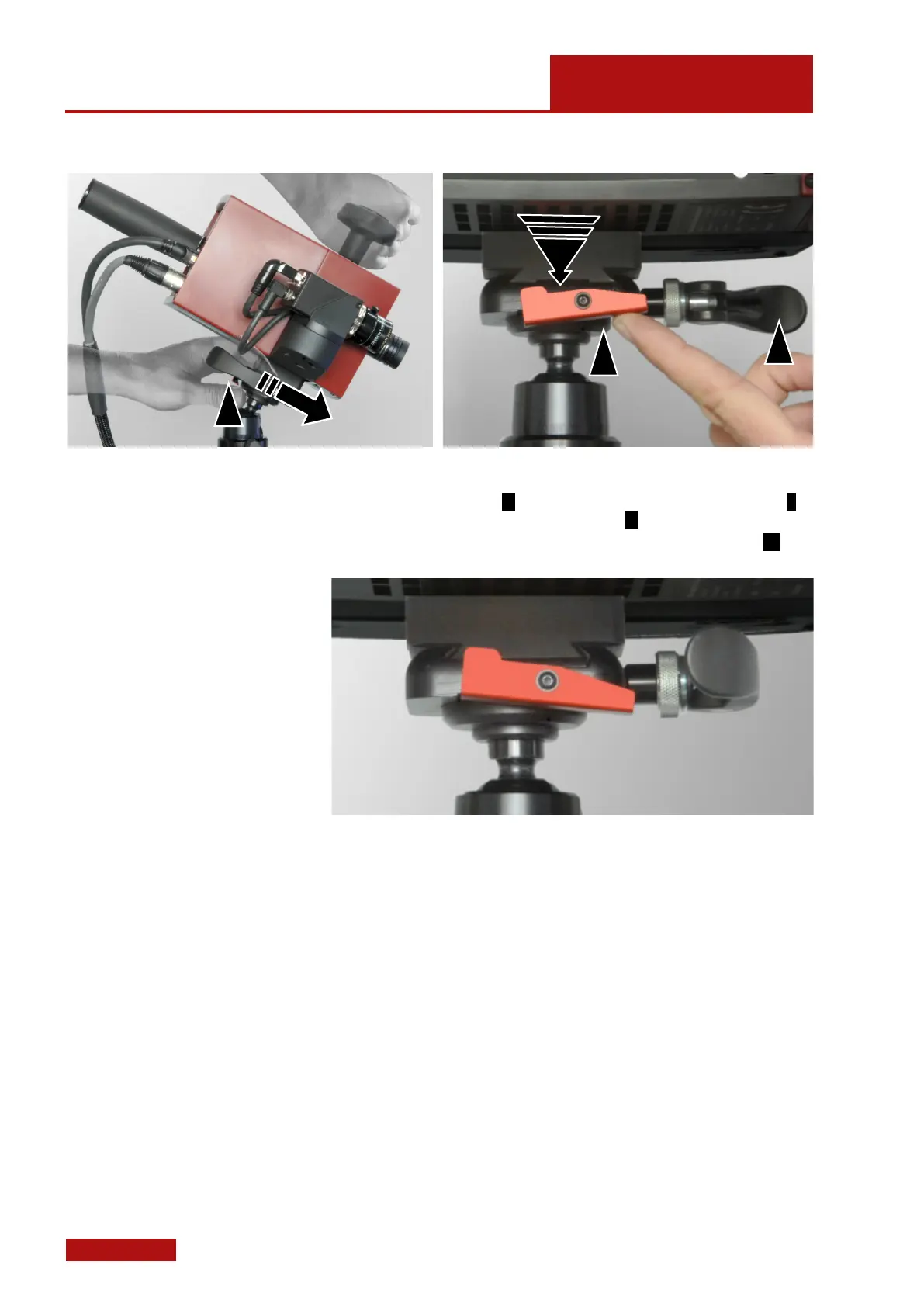

7.2.3 Fixture of Sensor on Locking Mechanism
Steps for fixing the sensor
Loosen the locking lever h , unlock the mechanism using the latch i
and move the sensor with the wedge plate k to the stop.
Clamp the wedge plate again with the help of the locking lever h .
View of a correctly fixed sensor.
h
g
k
k
i
h
