GOM ATOS COMPACT SCAN 5M - Changed Sensor with Camera Support so

Changing the Camera Positions (Step by Step)
Sensor Setup
Page 22 (40)
atos_cs_rev01_en_rev-c 2012-09-03
While holding the camera turned against the stop m , fix the corre-
sponding camera screws with a torque of max. 1.2 Nm.

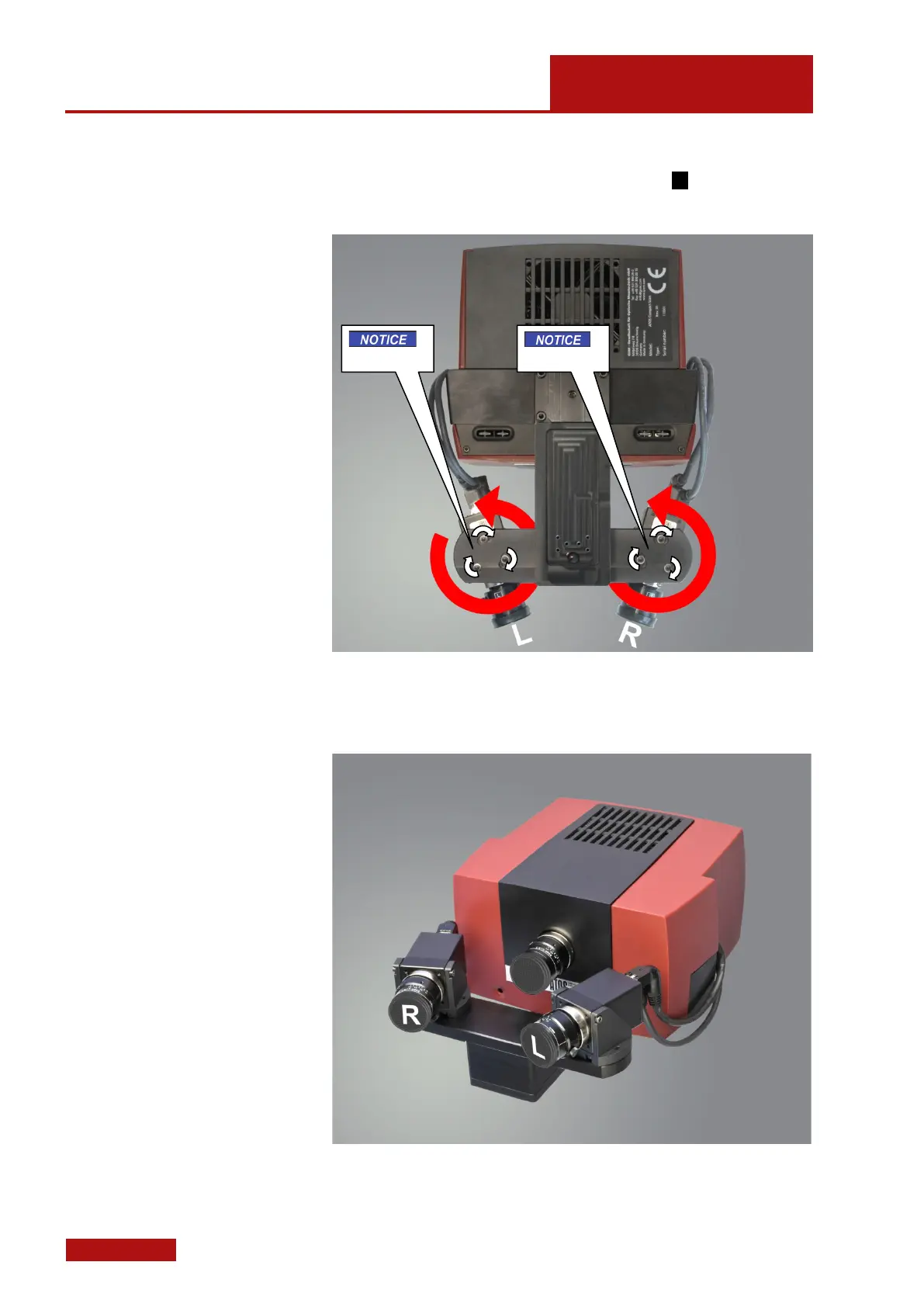

View from below. Rotation direction of the cameras (red arrow) when tightening the camera
screws with max. 1.2 Nm.
8.3.9 Changed Sensor with Camera Support SO
Max. 1.2 Nm Max. 1.2 Nm
