Goodwe SBP Series User Manual

8
User Manual V1.5-2021-01-21 02 Installation Instructions
1
Carry the inverter by holding the heating sink on both sides and place the inverter
on the mounting bracket.
wall bracket
expansion pipe
self-tapping screws
125mm 125mm
120mm 120mm
265mm

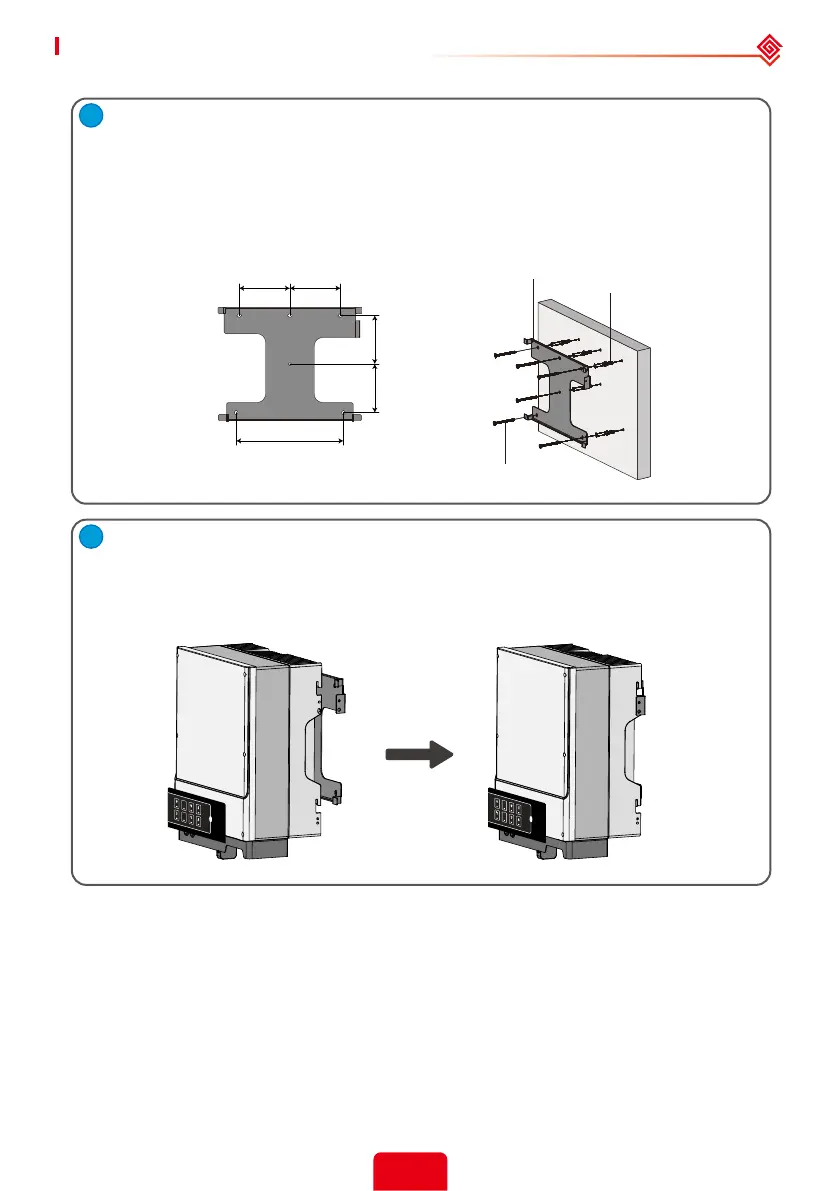

• Please use the mounting bracket as a template to drill 6 holes in right positions (10mm
in diameter,and 80mm in depth).
• Use expansion bolts in accessory box and x the mounting bracket onto the wall tightly.
Note: Bearing capacity of the wall must be higher than 25kg, otherwise it may not be able to
keep inverter from dropping.
Note: Make sure the heat sink on the inverter joints with mounting bracket.
2
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
