02 Installation Instructions User Manual V1.5-2021-01-21
For 3-phase Smart Meter wiring connection, please refer to "3-phase Smart Meter & CT
Connection Diagram". Inverters should not be installed in multiple phase combination.

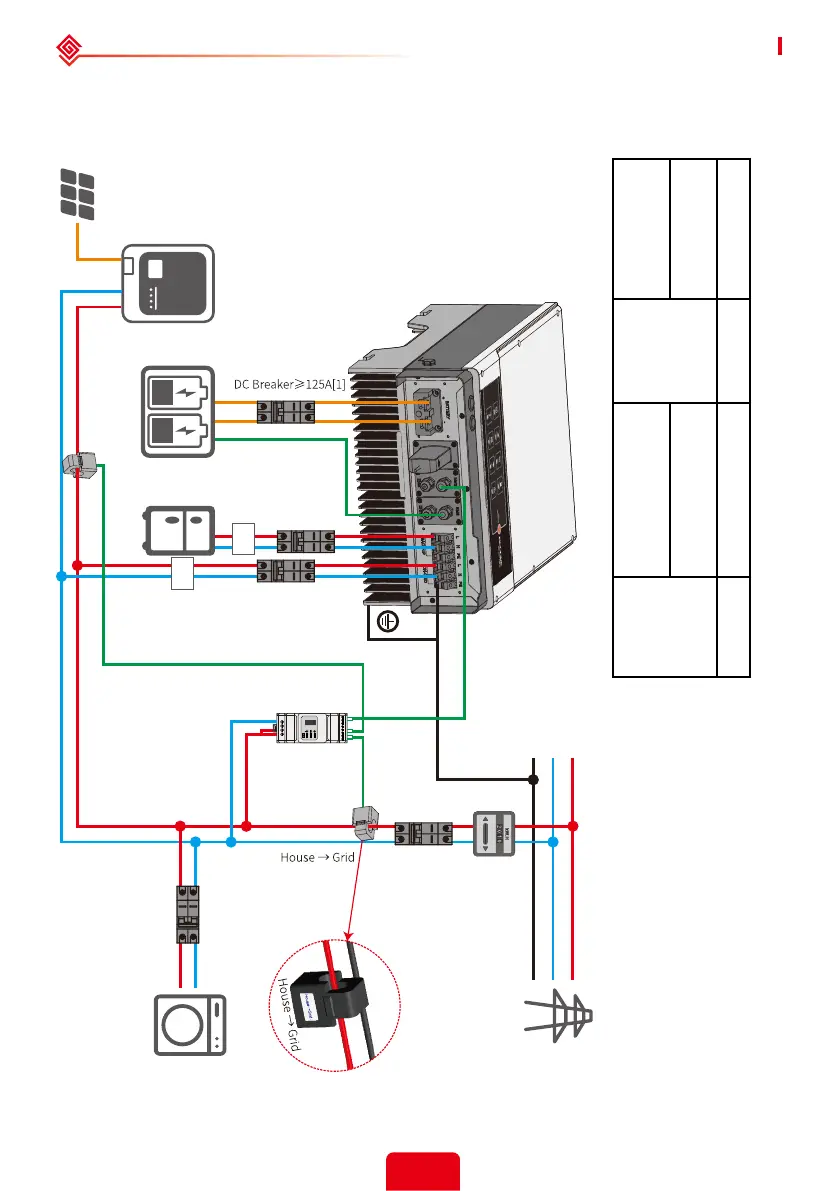

Wiring System For S-BP Series hybrid inverter
1. For batteries with attached switch, the external DC
switch is not necessary.
2. Only for lithium battery which has BMS communication.
3. Direction of the CT cannot be connected in reverse,
please follow "House → Grid" direction to do the
connection.
4. AC Breaker ≥40A for GW3600S-BP, and ≥50A for GW
5000S-BP.
Please select the breaker according to the specications below:
Inverter
① ② ③④
GW3600S-BP
125A/60V
DC breaker
40A/230V AC breaker Depends
on
household
loads
GW5000S-BP 50A/230V AC breaker
Reset
SMART METER
USB
PV
AC Breaker[4]
Power Meter
ON-Grid Load
L
N
PE
AC Breaker[4]
AC Breaker[4]
AC Breaker[4]
"To Battery" Cable[2]
Smart Meter
Battery
LN
Back-Up
Load
CT1[3]
CT2[3]
Grid
N
L
Grid
Single-Phase
Grid-Tied Inverter
RCD
RCD
To Next Page
