Gooxi SL101-D04R-G3 User Manual

36
number
1
PCIE X16 slot
For PCIe 3.0 X16 devices.
2
PCIE X8 slot
For PCIe 3.0 X8 devices.
3
Power port
Riser card power transmission connector for 12V power
transmission
4.5
Slimline port
For connecting Slimline cables

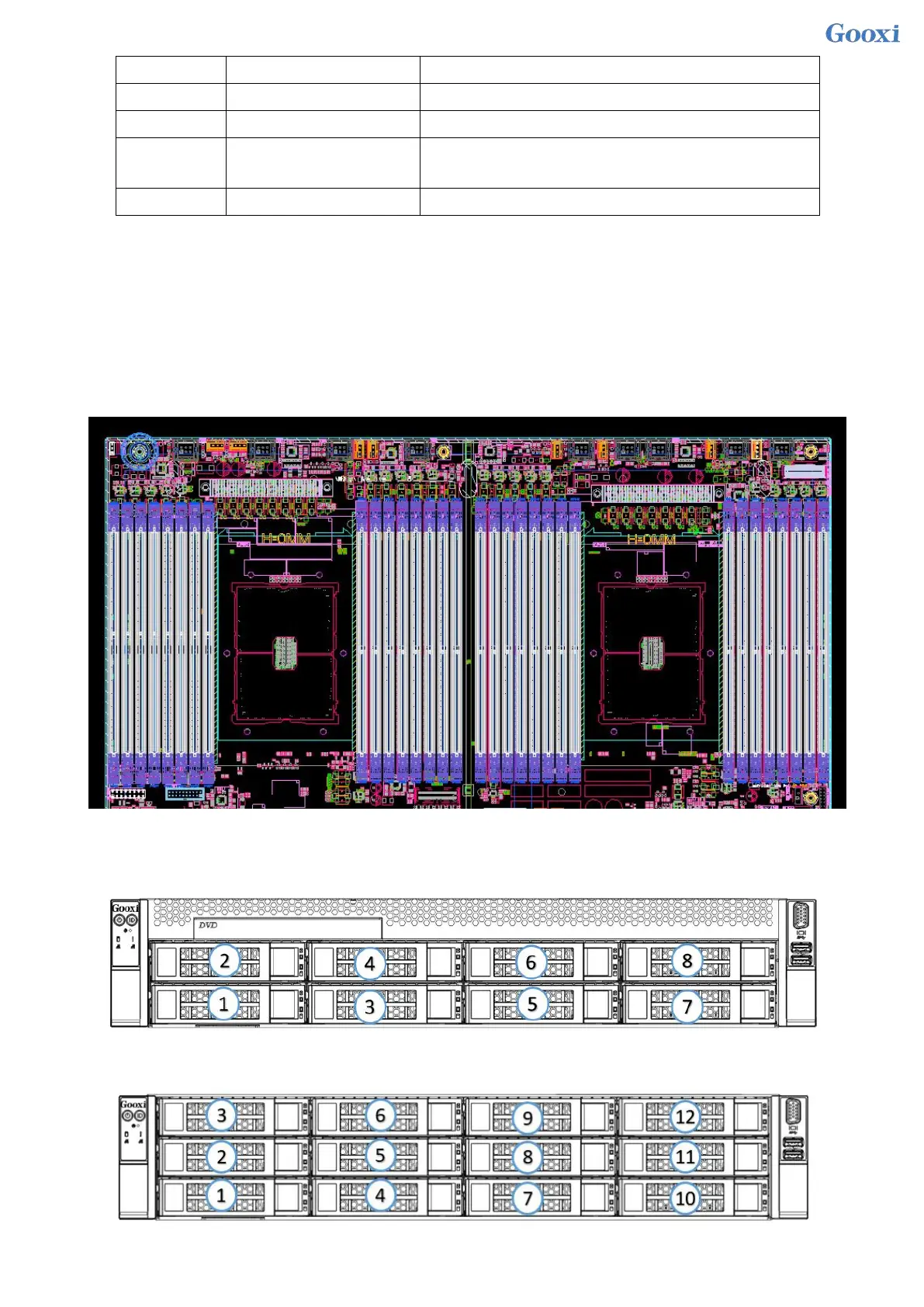

2.4.5 DIMM slot locations
The motherboard adopts Intel Whitley platform and is equipped with Intel Xeon ICE Lake CPU. Each CPU
supports 8 Channels, and each Channel has 2 DIMMs. The entire board can support 32 DIMMs. When only one
memory is inserted , the blue box in the figure below is preferred. Inner slot board slot plastic color is blue) ,
supports DDR4 ECC RDIMMs/ LRDIMMs server memory, the memory frequency supports 2133
/2400/2666/2933 / MHz; the location is as shown below:
2.4.6 Hard disk label
2U8-bay model
Figure 2- 28
2U12-bay model
