6.1.2 Configuring RAID in Legacy Boot Mode
Set RSTe working mode
1. Enter the BIOS Setup interface.
2. Move to the PlatForm page-->PCH Configuration-->PCH SATA Configuration

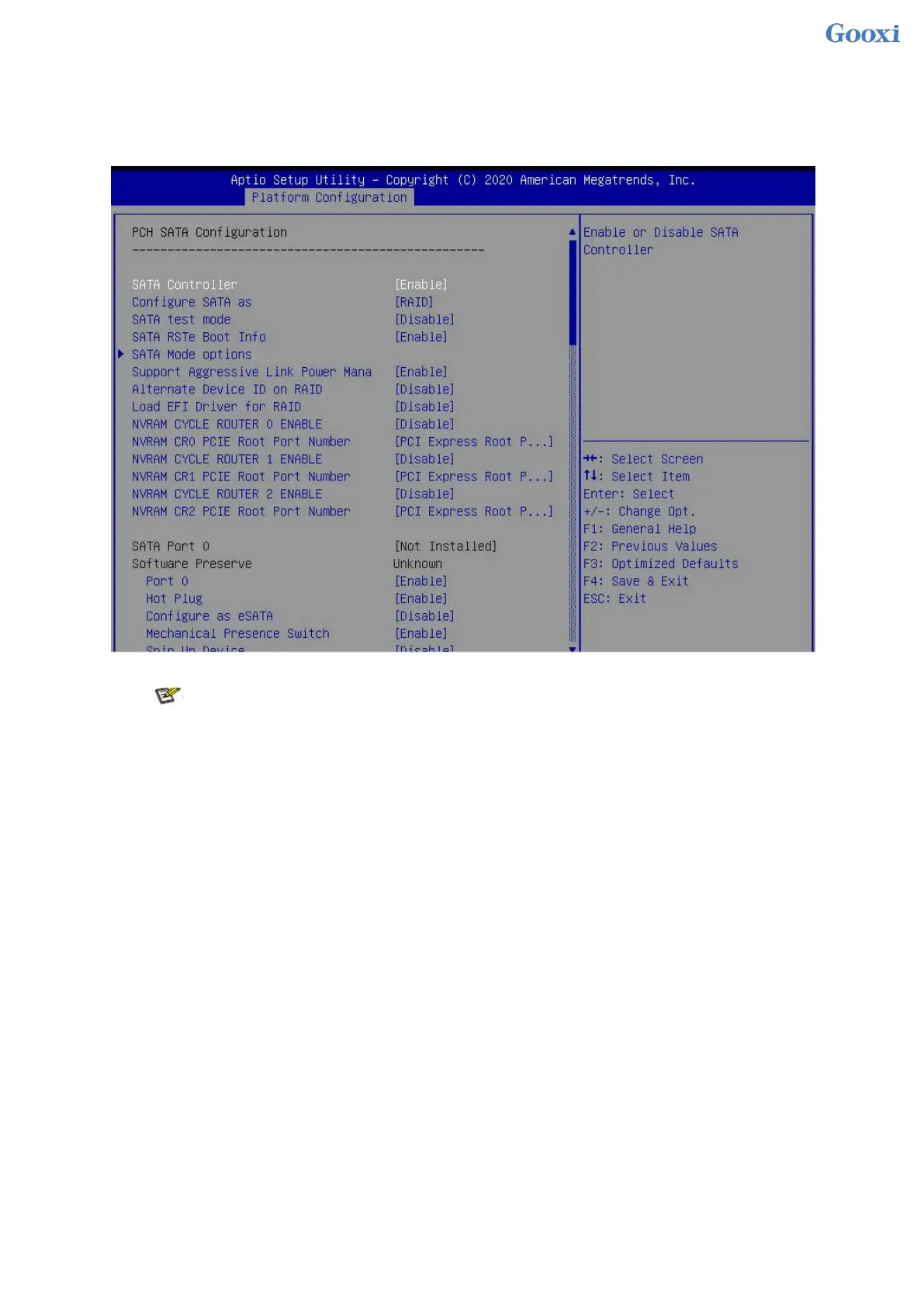

Figure 6- 13
The onboard soft RAID of RSTe has two controllers, SATA and sSATA, which manage the disks
connected to the two interfaces of the RAID card respectively. The SATA controller supports up to 8 disks,
and the sSATA controller supports up to 6 disks.
3. Enter the interface shown in Figure 6-14, select the Configure SATA As item, press Enter, and select
the working mode of the RSTe onboard soft RAID.
Figure 6-14 Modifying the working mode of the RAID card
