Gooxi SL101-D04R-G3 User Manual

42
Figure 3-5

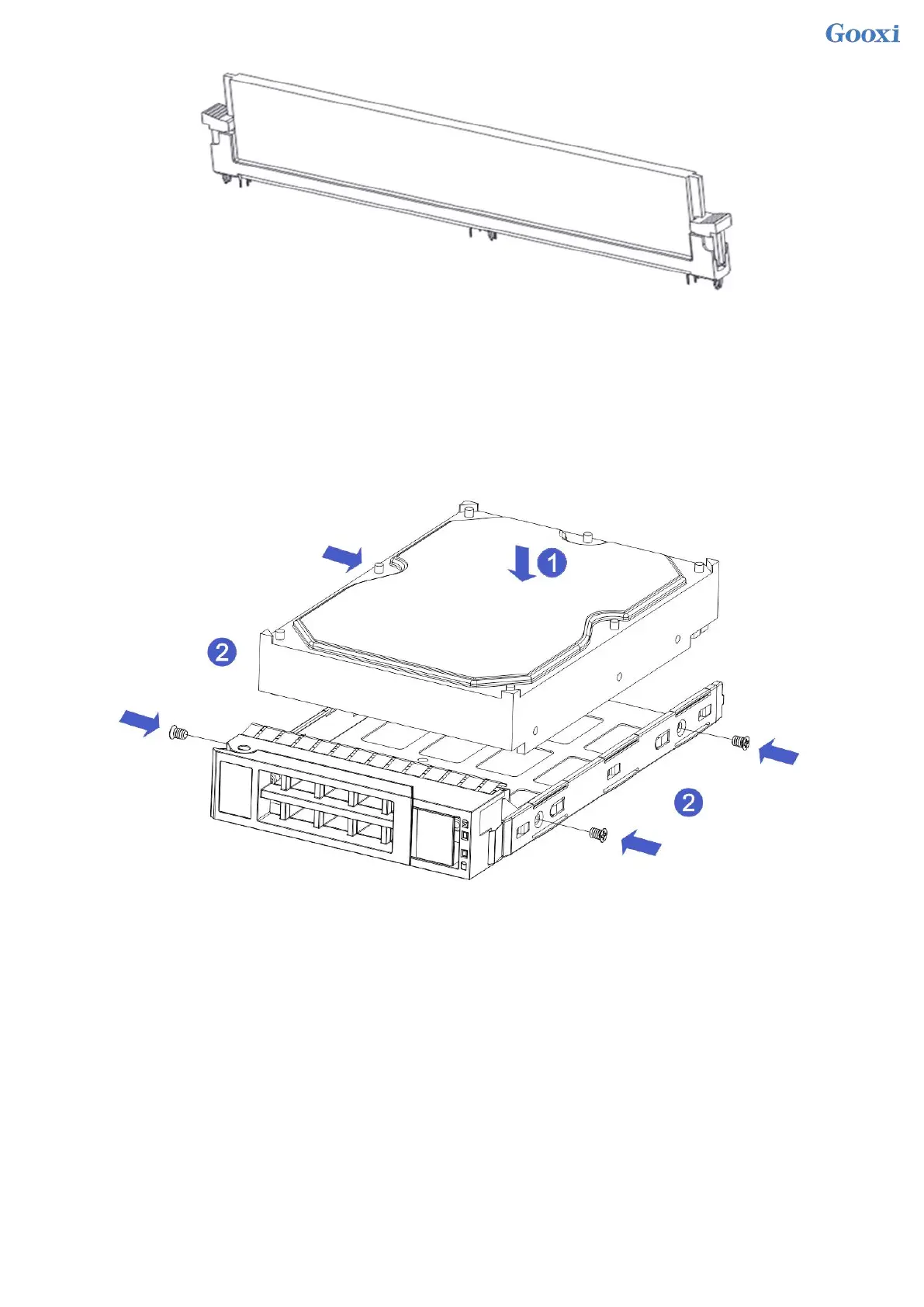

3.4 Hard disk installation
Install 3.5" hard drive:
1. Put the hard disk in the tray
2. There are 4 countersunk head screws on the left and right sides to lock the hard disk (the screw heads must
not protrude from the surface of the slide rail on both sides of the tray)
Figure 3- 6

Gooxi SL101-D04R-G3 Specifications

General

Brand	Gooxi
Model	SL101-D04R-G3
Category	Server
Language	English
