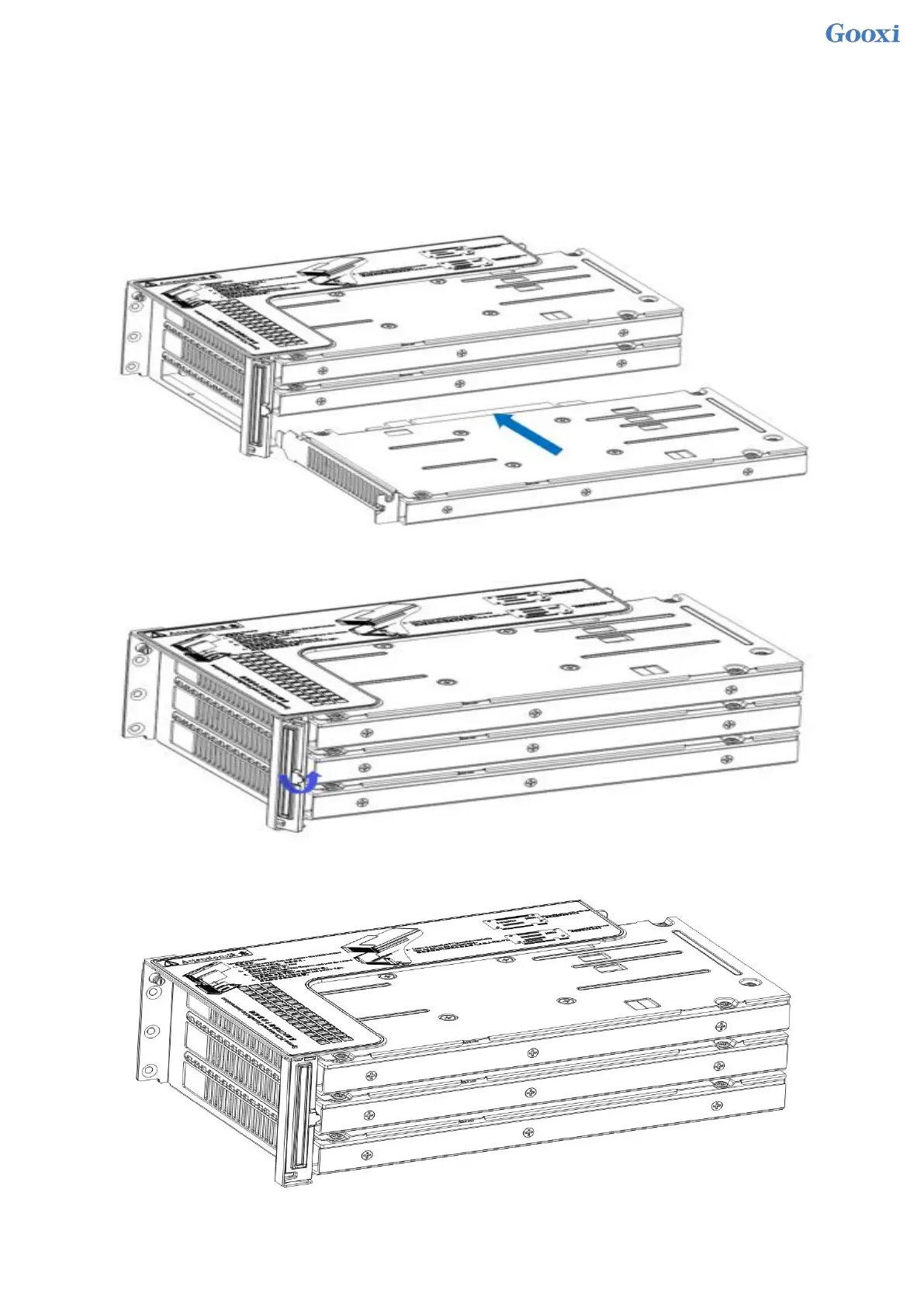

3.7 Installation of PCI-E expansion card

Step: Install the PCIE Card

1. Insert the PCIE card according to the direction shown in the figure

2. Rotate PCIE card lock

3. According to the arrow plan, lock the PCIE card lock

Figure 3- 19

Figure 3- 20

Figure 3- 21
