Gooxi SL101-D04R-G3 User Manual

46

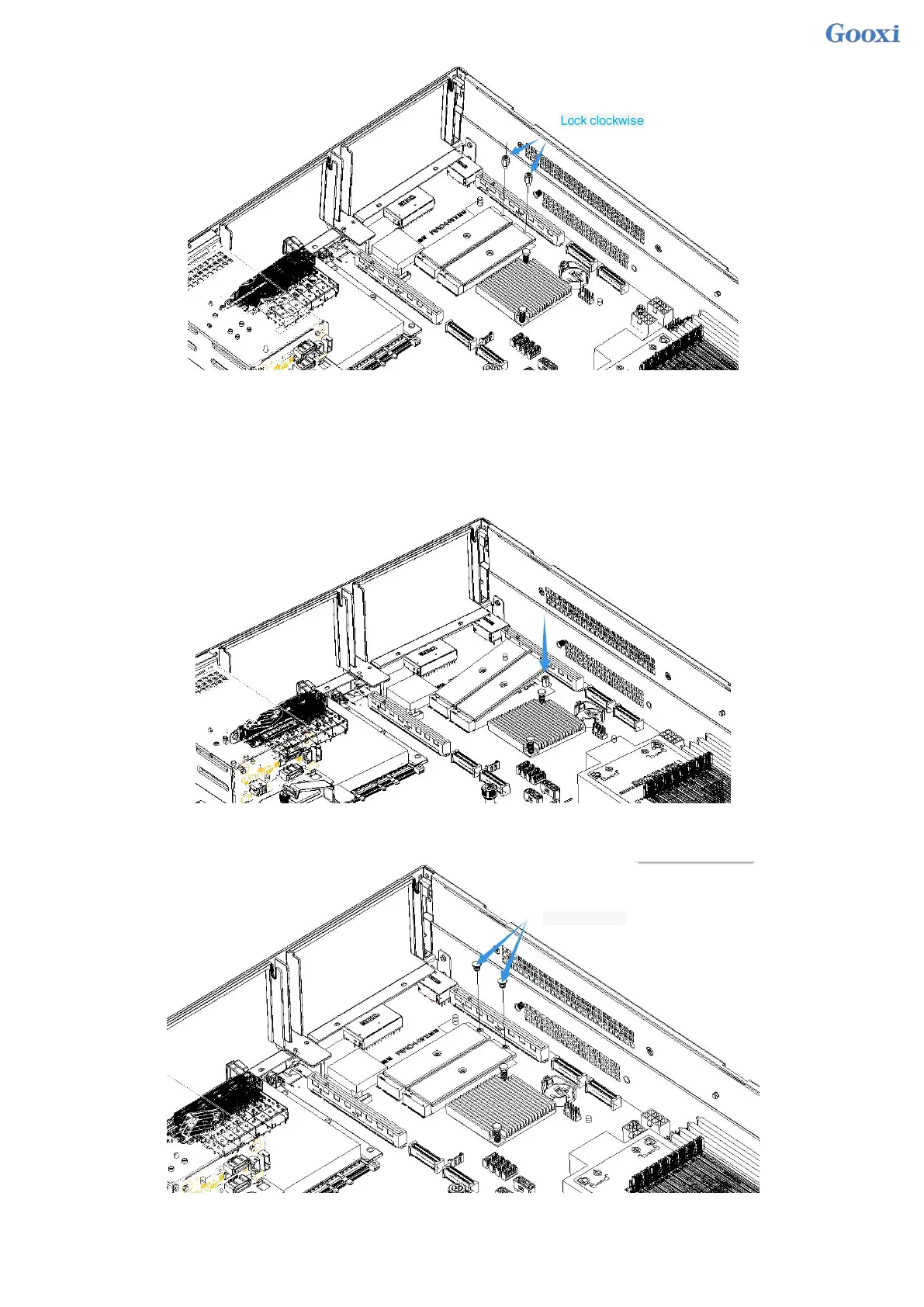

Figure 3- 14
Step 2: Install the M.2 Card
1. Insert the M.2 card connector end into the motherboard connector as shown in the illustration.
2. Press the other end of the M.2 card to the plane of the positioning stud in step 1.
Figure 3- 15
Step 3: Install the fixing screws of the M.2 card.
Figure 3- 16
Lock clockwise

Gooxi SL101-D04R-G3 Specifications

General

Brand	Gooxi
Model	SL101-D04R-G3
Category	Server
Language	English
