Gorgy Timing LEDI NETWORK TDS V1 - 6 Appendixa - Connections

MDE-LEDI-NETWORK-TDS-4099V3.0
81
ENGLISH

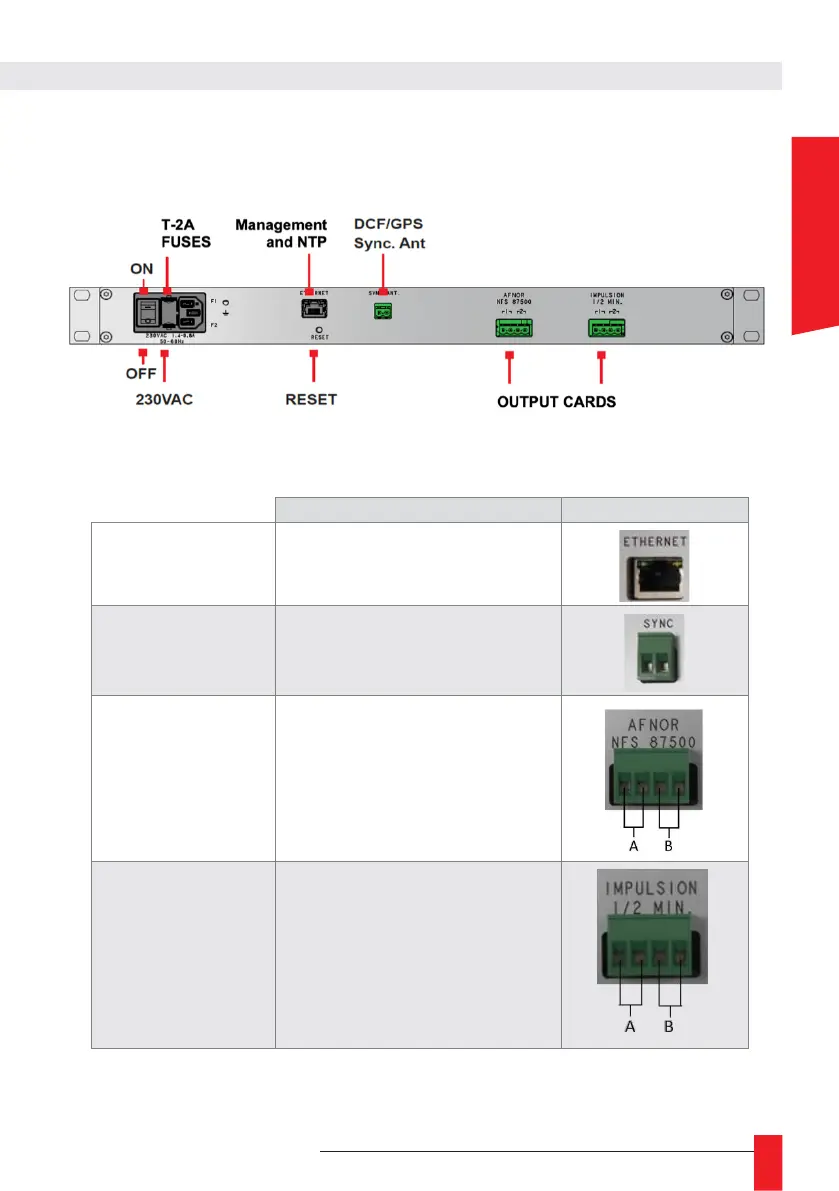

6. APPENDIX A – CONNECTIONS
This section contains a description of every possible connection on the LEDI
®
NETWORK
TDS. All the connections are made at the back of the device.
The table below details the available equipment for each input/output port of the device as
well as the number and location of the useful signals.
Connector / Signals
Connections
Management and NTP
input/output
RJ45 plug
DCF/GPS input
Antenna
AFNOR NFS 87500 / IRIG-B
Output
4 point screwed terminal
2 identical signals
No polarity
POLARISED IMPULSTIONS
Output
4 point screwed terminal
2 identical signals
No polarity
