8.4. TOP AND IRIG-B DCLS TIME CODE OUTPUT SIGNALS
TOP and IRIG DCLS output cards can provide several signal formats:
► TTL
► Differential TTL (RS422)
►
Phototransistors or static relays, depending on the card type.

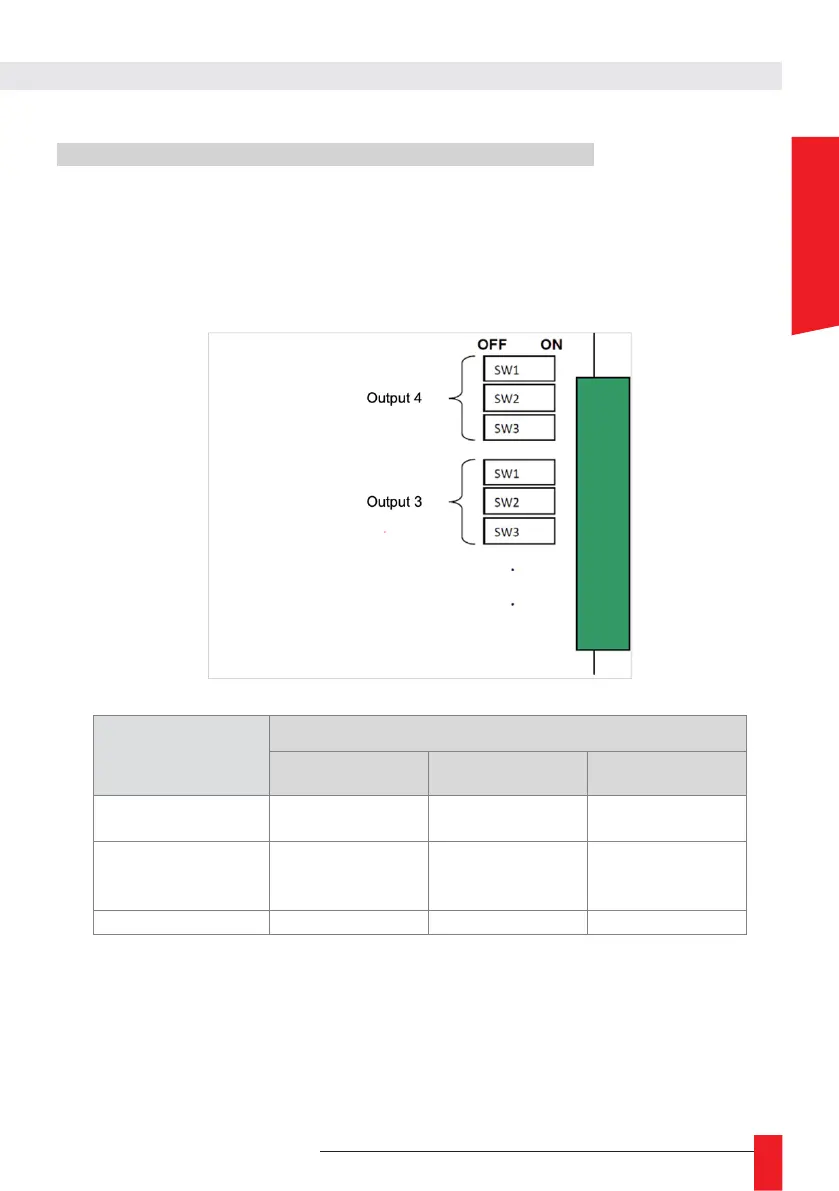

Signal format
For each output
Switch 1
Switch 2
Switch 3
Phototransistor or
static relay
ON (Right)
ON (Right)
ON (Right)
RS422
differential TTL
ON (Right)
OFF (Left)
OFF (Left)
TTL
OFF (Left)
OFF (Left)
OFF (Left)
