MDE-LEDI-NETWORK-TDS-4099V3.0

8.3. OUTPUT CARDS ADDRESSES SWITCHES

Each LEDI

NETWORK TDS output card has an address which must be unique. These

addresses are determined by switches on each output card. When replacing/adding a new

card, the user must ensure that the cards’ addresses are unique.

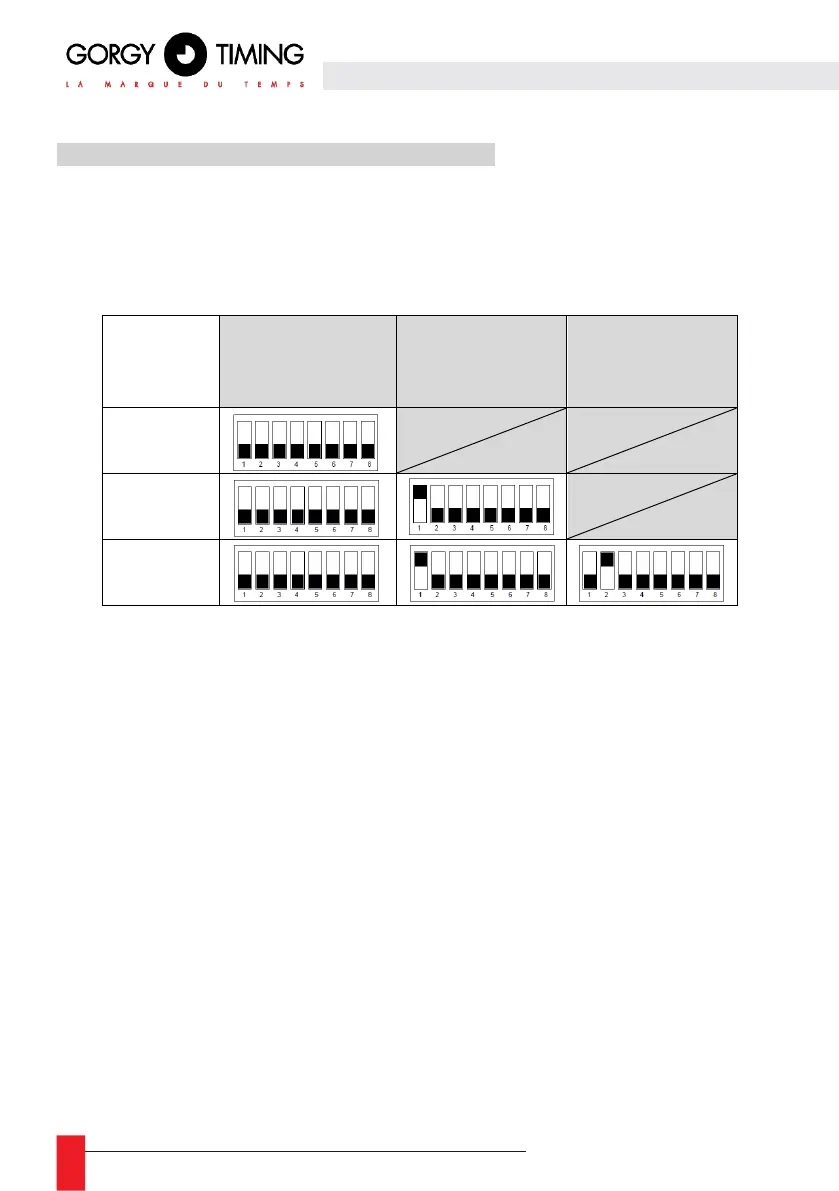

Below is a recapitulative table of the addresses depending on the switches’ positions:

Output 1

(closest to the

power supply

card)

Output 2

Output 3

1 output

2 output

3 output

► Switches are read in a binary format. Each switch is a power of 2
