Machine Layout (continued)
1. Hand Wheel
Raises and lowers the needle bar.
2. Bobbin Thread Tensioner (page 25)
Tensions thread when winding a bobbin.
3. Bobbin Thread Guide (page 25)
Guides thread to the bobbin thread tensioner.
4. Bobbin Stand (page 25)
Holds the bobbin for winding.
5. Bobbin Thread Cutter (page 25)
Cuts wound bobbin thread.
1. Bobbin Winder Thread Stand (page 25)
Holds a cone of thread for winding bobbin.
2. Thread Mast (page 19)
Guides thread when quilting.
1. Top Thread Stand (page 30)
Holds a thread cone for threading machine.
Handle Bar Clamp (page 14)
Used to adjust handlebar position.
• Bobbin Case (page 28)
Holds M class bobbin and controls bottom
thread tension.
• Hook Assembly (page 28)
Holds the bobbin case and hooks the top
thread to create stitches.
• Machine Wheels (page 8)
Shuttles the machine up and down the
bottom carriage.

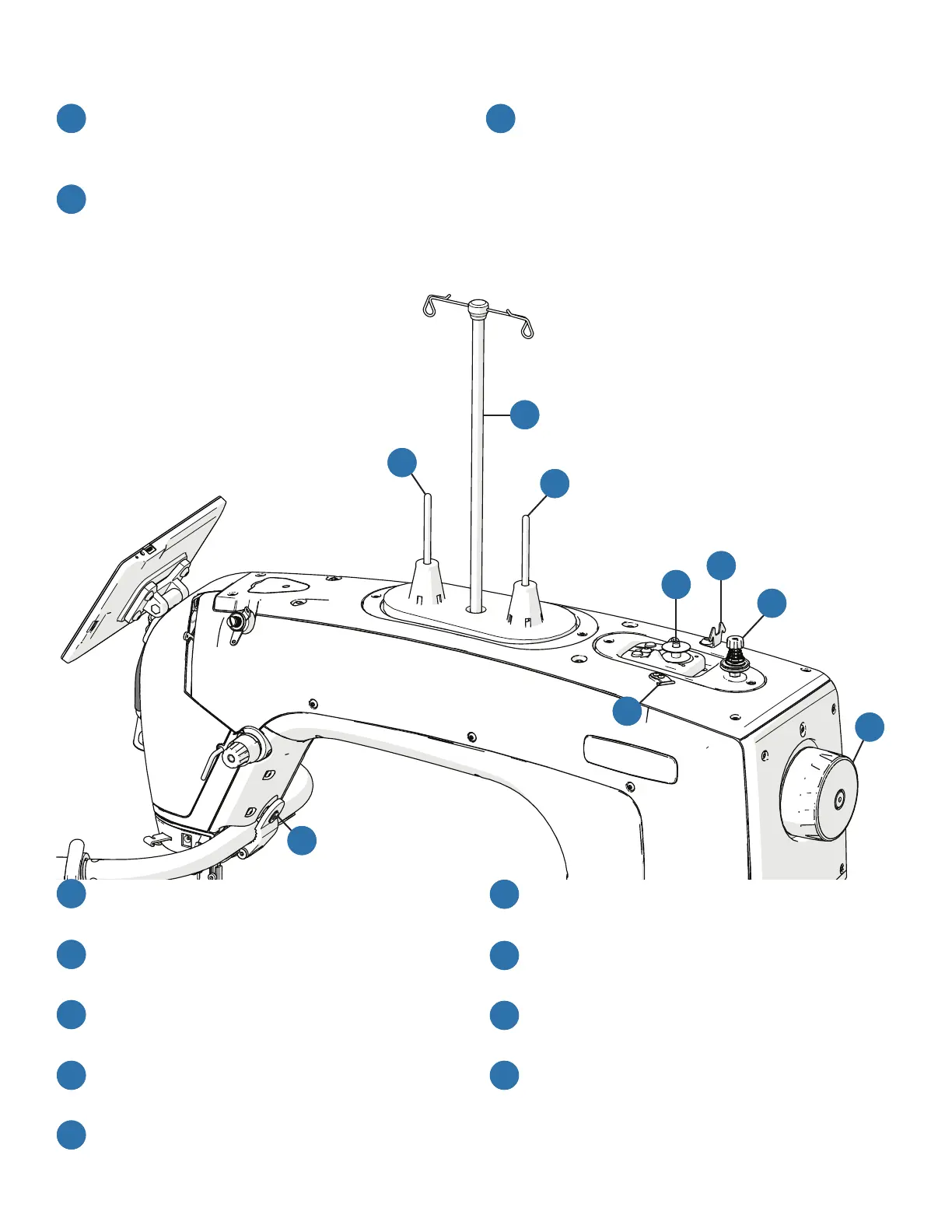

Quilting Machine (Top View)
18
19
21
22
23
24
25
26
15
16
17
18
19
21
20
23
24
25
26
20
22
