19
1. Take the thread stand assembly out of
the second level of packaging. The screws
needed for this task are in the thread stand
hardware box that you removed earlier.
Parts & Tools Needed:
1

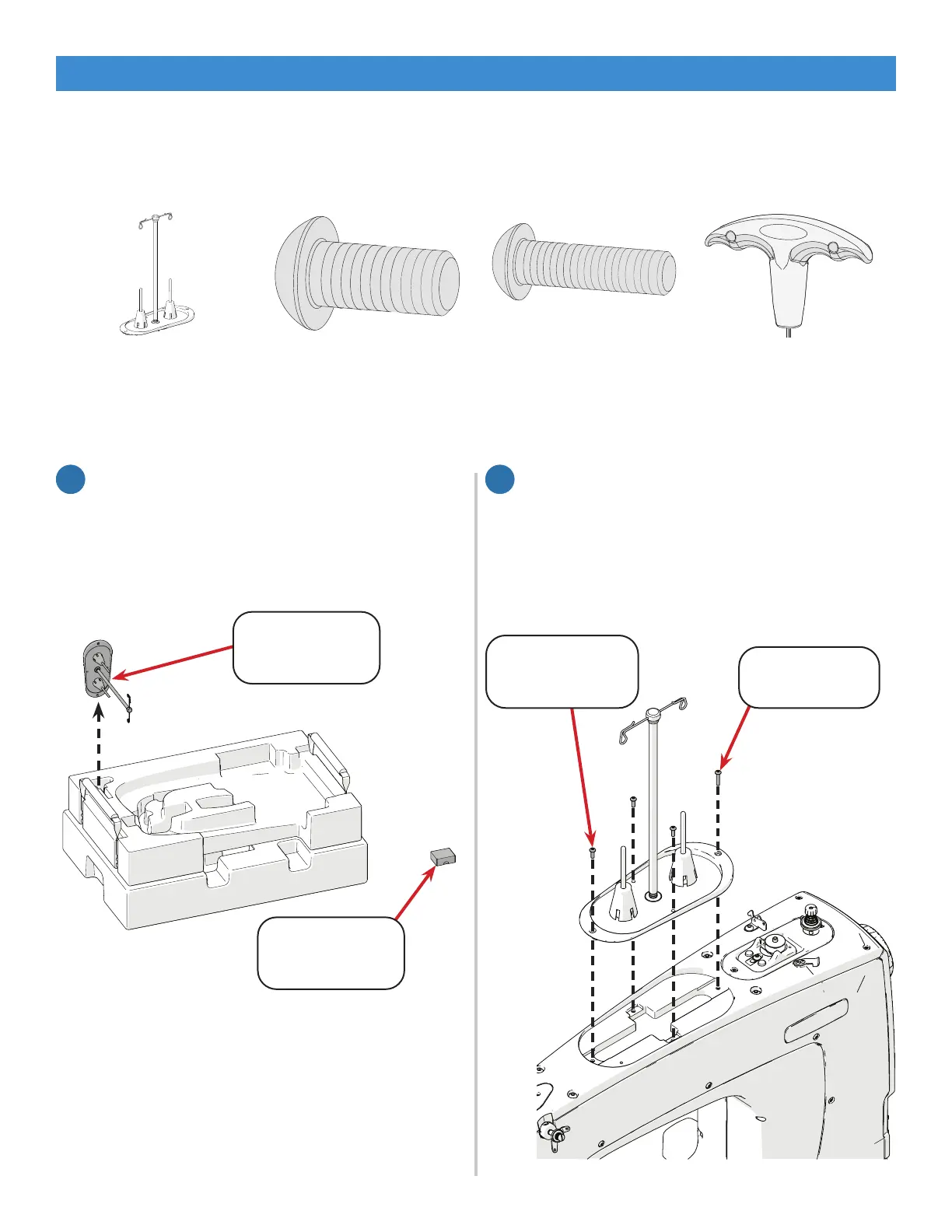

Secure the thread stand assembly in place
using the 2.5 mm Allen wrench, three M4
x 12 mm SBHCS, and one M4 x 20 mm
SBHCS.
The M4 x 20 mm SBHCS goes in the rear
screw hole of the thread stand.
2
SBHCS
M4 x 12 mm (x3)
SBHCS
M4 x 20 mm
Part Three | Out of Box Assembly
SBHCS Screw
M4 x 12 mm (x3)
SBHCS Screw
M4 x 20 mm (x1)
Thread Stand
Assembly
T-handle Allen
Wrench 2.5 mm
2.5 mm
Task 5 - Attaching the Thread Stand
Packaging Level 2
Thread Stand
HardwareBox
Thread Stand
HardwareBox
Instructions
Take the following steps to install the thread stand assembly:
Thread Stand
Assembly
Thread Stand
Hardware Box
To Next Page
