Machine Layout

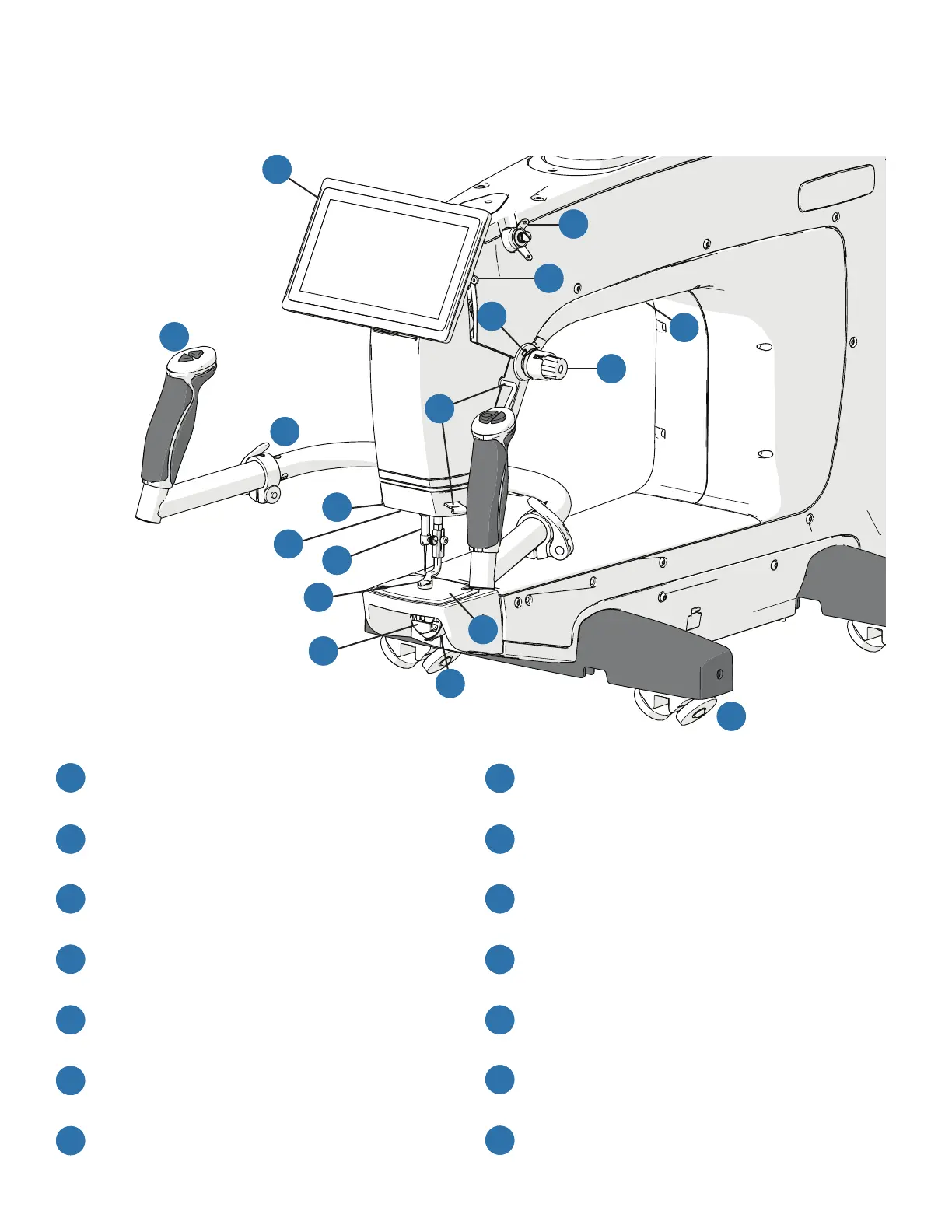

Quilting Machine (Front View)
1. 7” Touch Display (page 17)
Provides access to quilting options.
• Small Thread Tensioner (page 30)
Tensions thread when quilting.
• Take-Up Lever (page 30)
Tensions thread when quilting.
• Tensioner Check Spring (page 30)
Applies additional tension to thread.
• Throat Lights (page 40)
Lights up sewing area when machine is on.
2. Handlebar Controls (page 42)
Controls machine functions.
• Large Thread Tensioner (page 30)
Tensions thread as adjusted when quilting.
• Thread Guides (page 30)
Positions thread when quilting.
3. Handle Bar Levers (page 14)
Used to adjust handle position.
Lamp (page 40)
Lights up needle area when machine is on.
• Thread Cutter (page 30)
Cuts excess thread from threading machine.
• Needle Bar (page 30)
Holds the needle when quilting.
• Hopping Foot (page 75)
Presses fabric down when quilting.
• Needle Plate (page 78)
Covers top of hook assembly.
1
10
7
11
12
13
8
14
3
6
92
4
5
11
8
12
13
14
10
15
16
17
3
7
9
2
6
1
5
4
To Next Page
