Ports and Plugins
Power On/O Switch (page 22)
Turns machine on and o.
Power Port with Retainer (page 22)
Connects and holds power cable to the
machine.
Back Handle Mount Cover
For mounting the back handle accessory.
USB Connector Port
For 7 inch back handles display and for
updating.
USB Connector Port
For 2.4 inch back handles display.
Quilt Motion Tablet Port
For optional automation accessory.
Left Rear Handle Cable Port
For back handle accessory.
Right Rear Handle Cable Port
For back handle accessory.
Lower Encoder Port (page 20)
Connects encoders to machine.
Upper Encoder Port (page 20)
Connects encoders to machine.
Accessory Ports
For laser accessory.

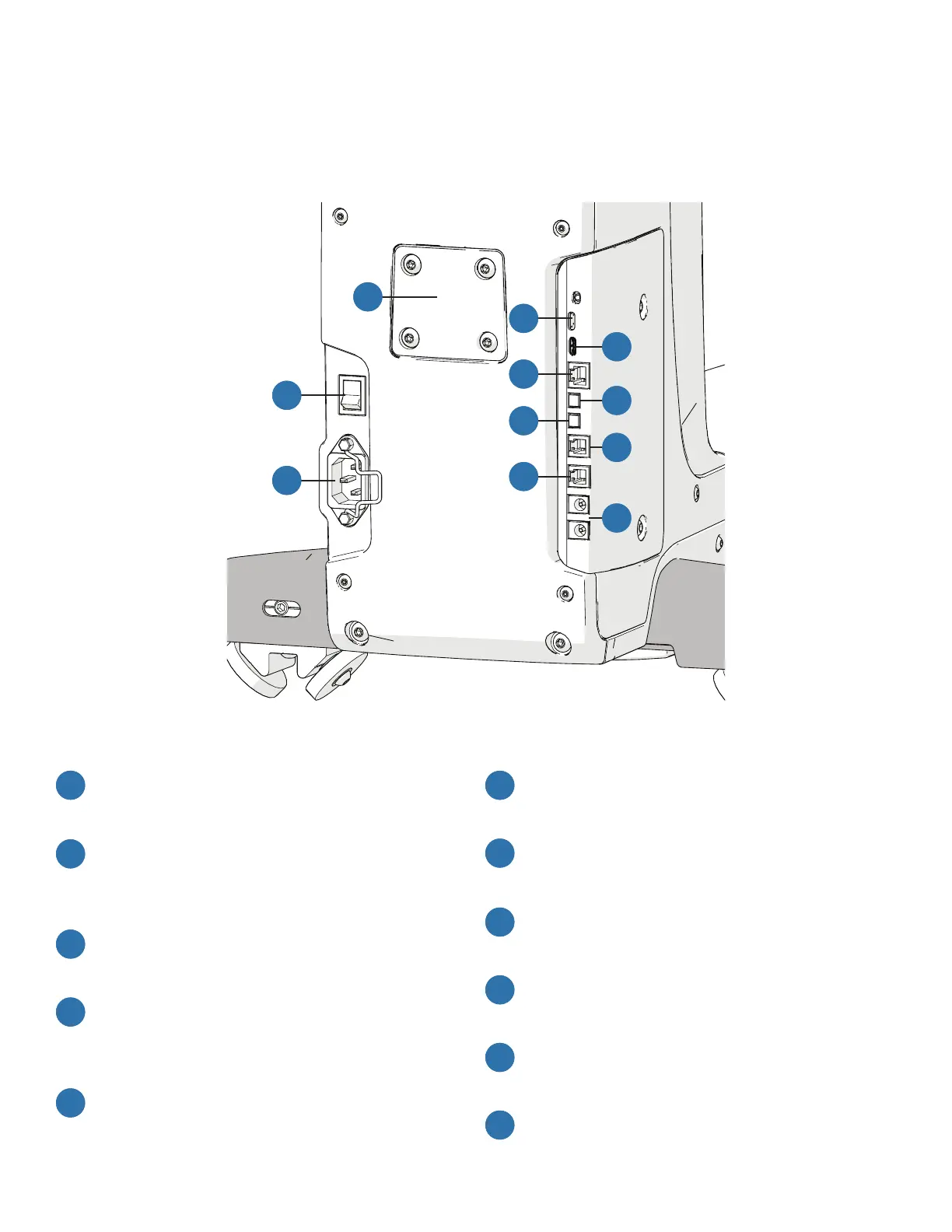

Machine Rear (Rear View)
1
10
7
8
3
6
9
2
4
5
1
10
7
8
3
6
9
2
4
5
11
11
