1. Loosen the lock collar screw on the upper
encoder with the 2.5 mm Allen wrench until
the lock collar (shown in blue) turns freely.
Parts & Tools Needed:
Instructions
The encoders monitor the position of the machine on the frame, allowing for regulated stitching. The
upper encoder is installed on the outward-facing, left-rear wheel of the machine. Please take the
following steps:
The wheel screw will not be needed
again and can be stored with the packaging
materials.
1. Use the 4 mm T-handle Allen wrench to
remove the left rear wheel from the
machine.
1. Find the upper encoder in the encoder
box. The upper encoder has a silver spring
and a purple sticker on the cable.
1
Wheel
Screw
Left Rear
Wheel
2
3
Upper
Encoder
Lock Collar Screw
Part Three | Out of Box Assembly
T-handle Allen
Wrench 4 mm
4 mm
2.5 mm
T-handle Allen
Wrench 2.5 mm
Upper Encoder
(silver spring)
Encoder Box
Encoder
Box

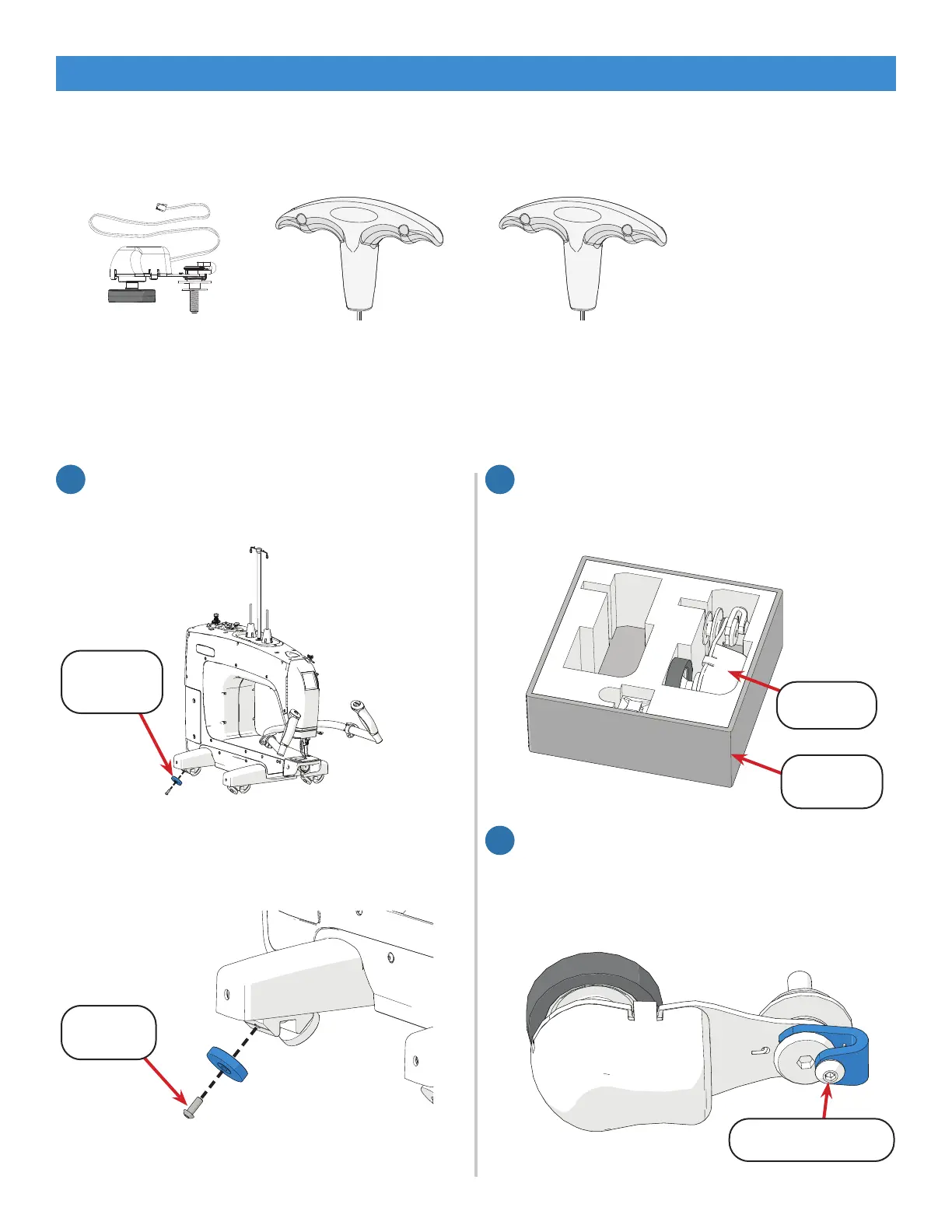

Task 6 - Installing the Upper Encoder
