5

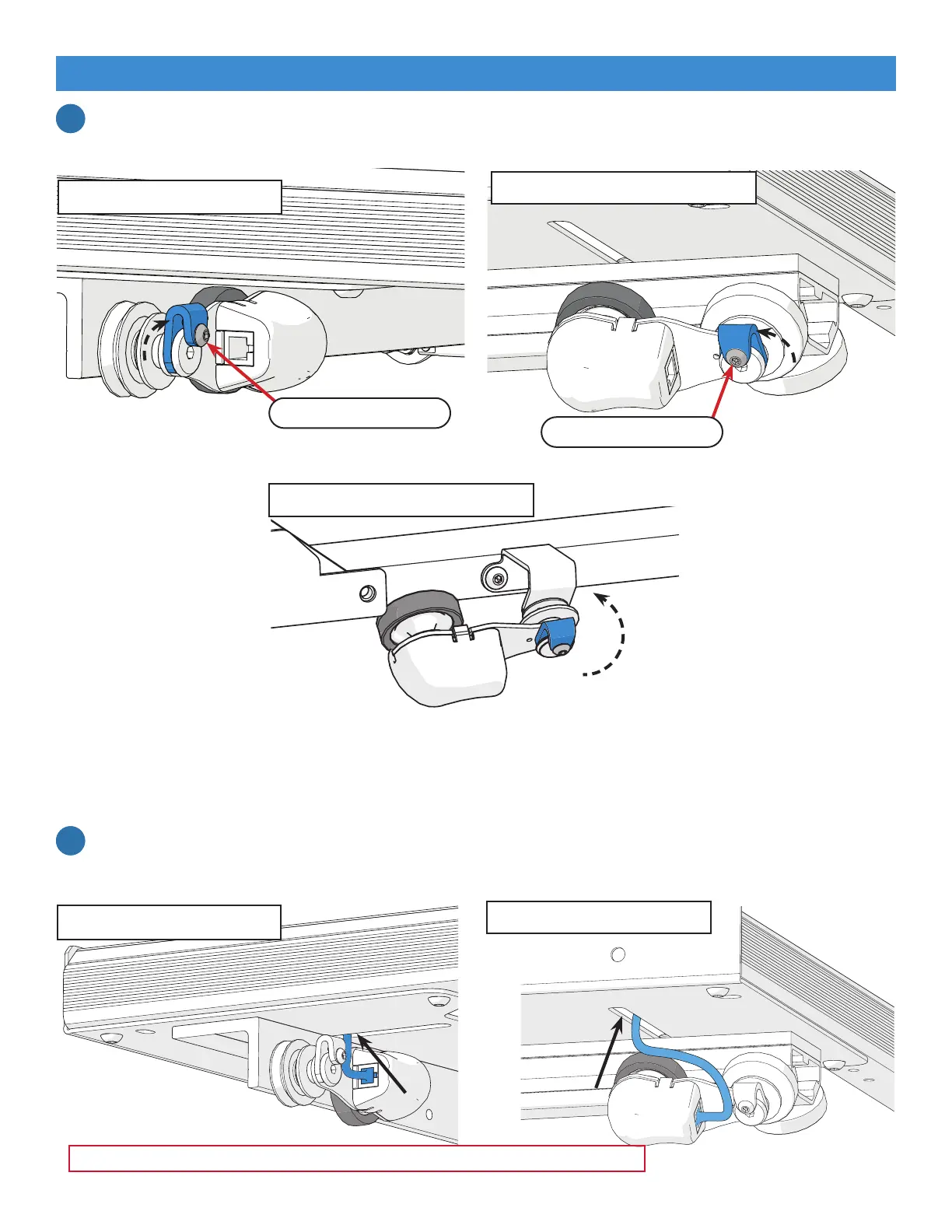

1. For the large wheel bottom carriages: Take the free end of encoder cable (shown in blue)
and pull it through the slot in the bottom carriage behind the wheels.
1. Turn the encoder lock collar (shown in blue) to point up. Then tighten the lock collar screw
with the 2.5 mm Allen wrench.
Lock Collar Screw
Lock Collar Screw
Single-Wheel Carriage
Single-Wheel Carriage
Dual-Wheel Carriage
Large Dual-Wheel Carriage
Small Dual-Wheel Carriage
Note: For the small dual-wheel carriage this step is not needed.
Task 1 - Installing the Lower Encoder (continued)
Part One | Out of Box Assembly
7
