Graco 695 XT - Component Identification; Standard Models

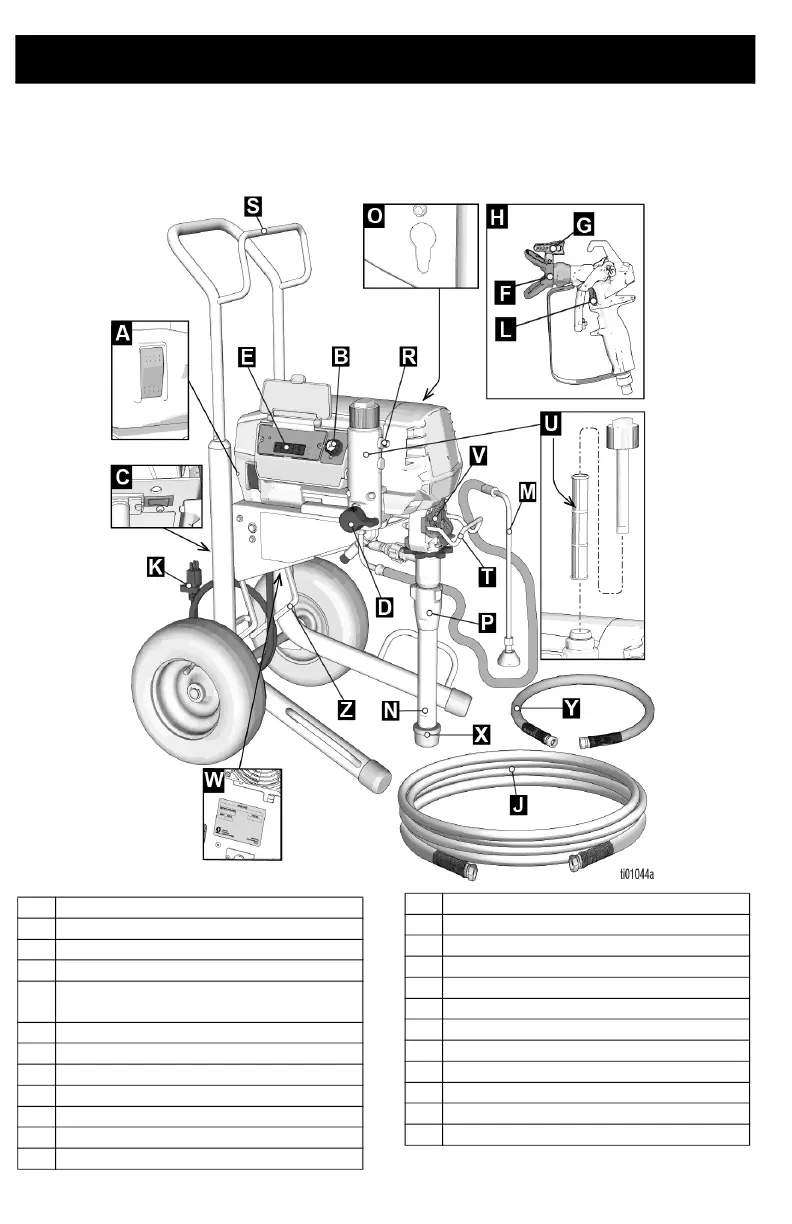

Component Identification
12 3B0070C
Component Identification
Standard Models
A ON/OFF Switch
B Pressure Control
C Amp Switch (if equipped)
D Prime Valve
E Controls and Display (see detailed image,
pg.15)
F Tip Guard
G Spray Tip
H Gun
J Airless Hose
K Power Cord
L Trigger Lock
M Drain Tube
N Suction Tube
O Pump Rod Pull Feature
P Pump
R Fluid Outlet
S Cord/Hose Wrap
T Pail Hanger
U Filter
V Finger Guard / TSL Fill Port
W Serial Label
X Inlet Strainer
Y Whip Hose (Mark models only)
Z Kickstand
