Repair
42 3B0070C
Repair

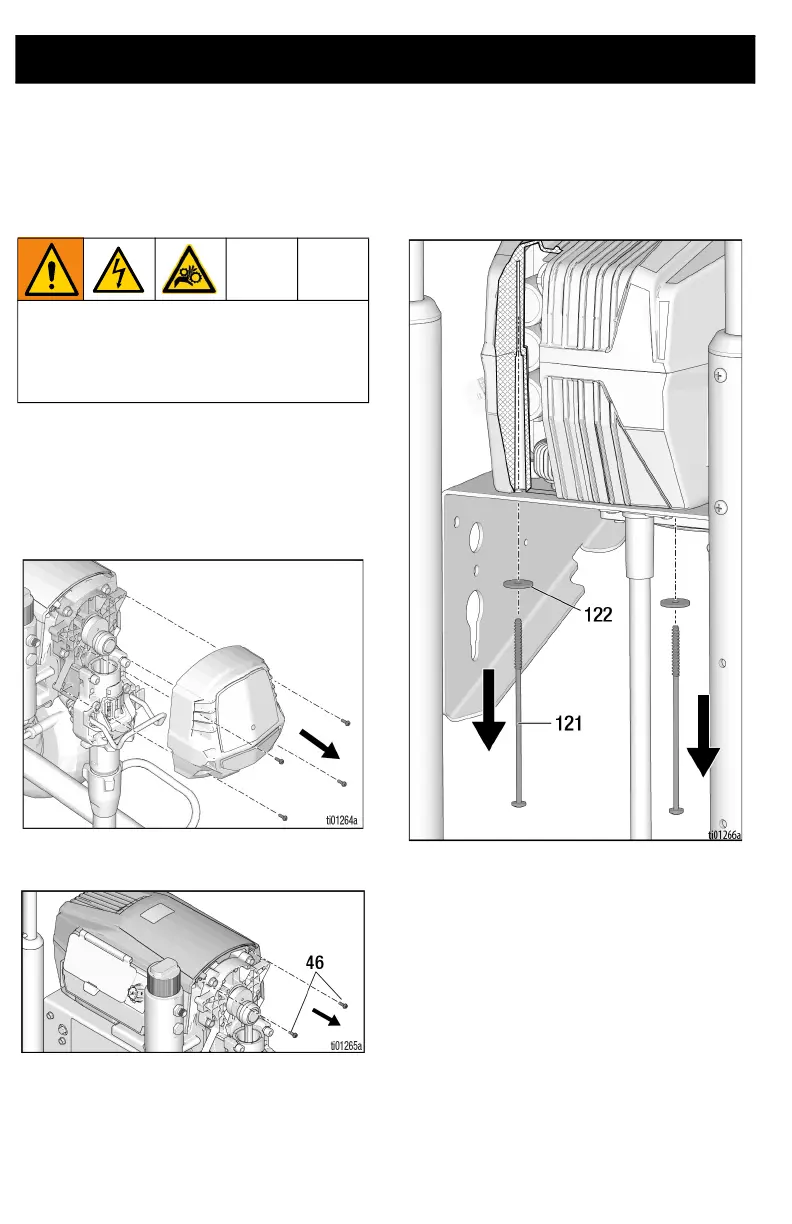

Removing the Shroud
1. Perform the Pressure Relief
Procedure, page 17.
2. Turn sprayer OFF and unplug the power
cord.
3. Using a 1/4 in. socket, remove four
screws retaining front cover.
4. Using a 1/4 in. socket, remove two
front screws.
5. Using a T20 tool, remove two Torx T20
screws. Remove top shroud.
To avoid injury from electrical shock and
moving parts, do not remove interior
motor cover and wait five minutes after
disconnecting power cord for stored
electricity to dissipate.
To Next Page
