Graco 695 XT - Parts

Parts
46 3B0070C
Parts

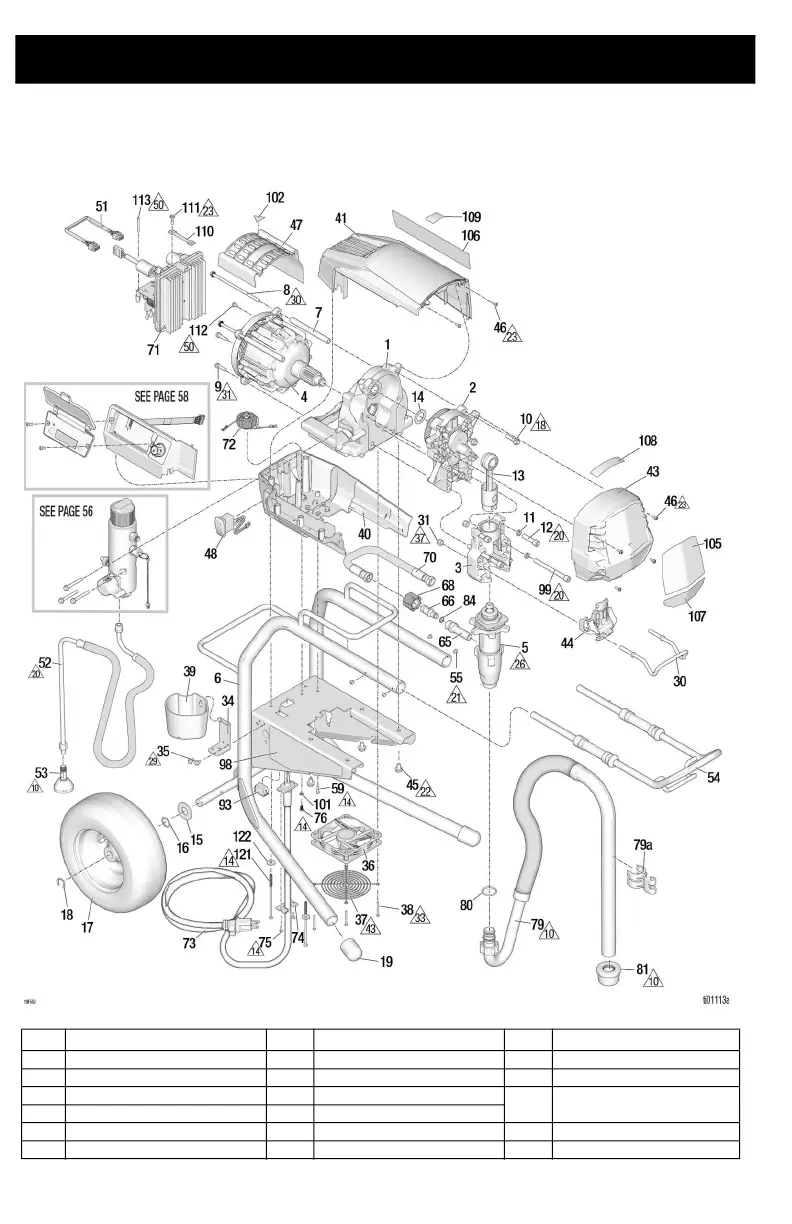

695 XT LoBoy
Ref. Torque Ref. Torque Ref. Torque
10 Hand Tighten 23 20-25 in-lb (2.3-2.89 N•m) 37 85-95 in-lb (9.6-10.7 N•m)
14 12-16 in-lb (1.4-1.8 N•m) 26 70-80 ft-lb (95-108.5 N•m) 42 30-40 in-lb (3.4-4.5 N•m)
18 190-210 in-lb (21.5-23.7 N•m) 29 40-45 in-lb (4.5-5.2 N•m)
43
Assemble guard so it does
not touch fan hub.
20 25-30 ft-lb (33.9-40.7 N•m) 30 70-75 in-lb (7.9-8.5 N•m)
21 22-28 in-lb (2.5-3.2 N•m) 31 140-160 in-lb (15.8-18 N•m) 50 30-35 in-lb (3.4-4.0 N•m)
22 12-14 ft-lb (16.3-19.0 N•m) 33 6-8 in-lb (0.7-0.9 N•m)
