Repair
3B0070C 45

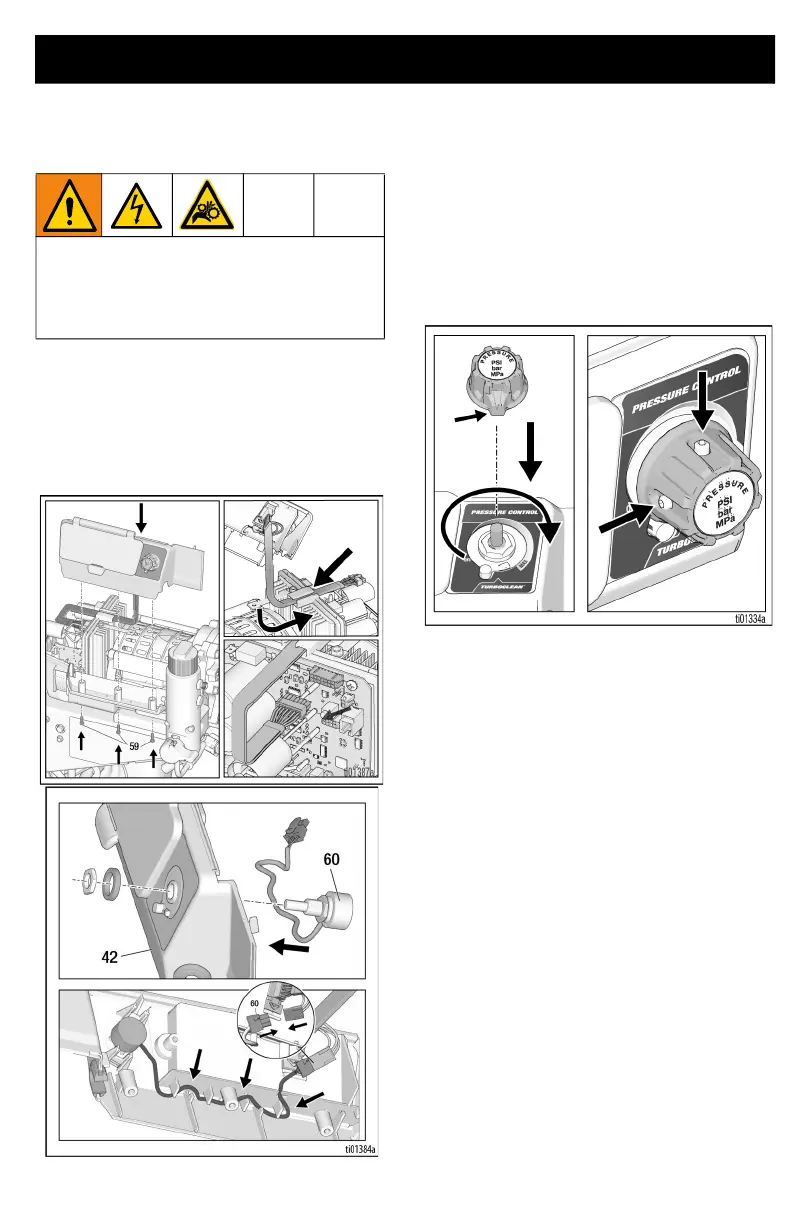

Installing the Potentiometer
1. Reassemble potentiometer by sliding it
into place on the side shroud. Make sure
that the wires are orientated down.
Torque potentiometer retaining nut to
8-10 in-lbs. Route the potentiometer
wire in bottom of side shroud and
connect to display harness.
2. Rotate potentiometer shaft clockwise
until it stops, then assemble gasket and
knob with indicator pointed straight
down (TurboClean position). Apply
downward force to knob and tighten
both set screws to create light drag on
gasket. Torque set screws to 10-15
in-lbs.
3. Reassemble side shroud to bottom
shroud. Torque screws to 12-16 in-lbs.
Reconnect display harness to control
board. Make sure to route display
harness through locating feature on top
side of control board.
4. Reassemble and replace shroud, see
Replacing the Shroud, page 43.
5. Calibrate knob, see Knob Calibration,
page 32.
To avoid injury from electrical shock and
moving parts, do not remove interior
motor cover and wait five minutes after
disconnecting power cord for stored
electricity to dissipate.
