Digital Display
3B0070C 33
Transducer Calibration
NOTE: Transducer calibration should be
performed whenever a new transducer is
installed or the control board is replaced.
1. Perform Pressure Relief Procedure,
page 17.
2. To perform transducer calibration, enter
secondary menu by holding menu
button while powering sprayer.

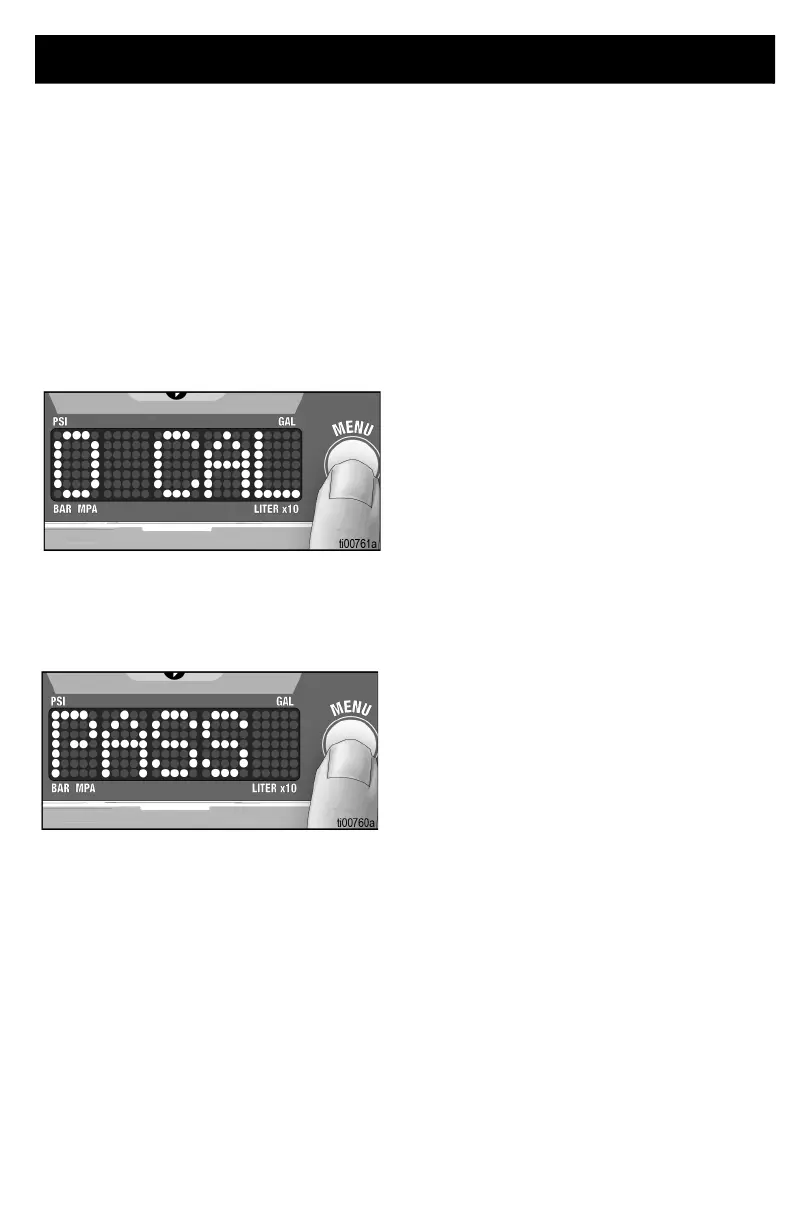

3. Use menu button to navigate to 0 (zero)
calibration screen.
4. Make sure dump valve is open and that
there is no pressure in sprayer.
5. Press and hold menu button until
display shows pass.
