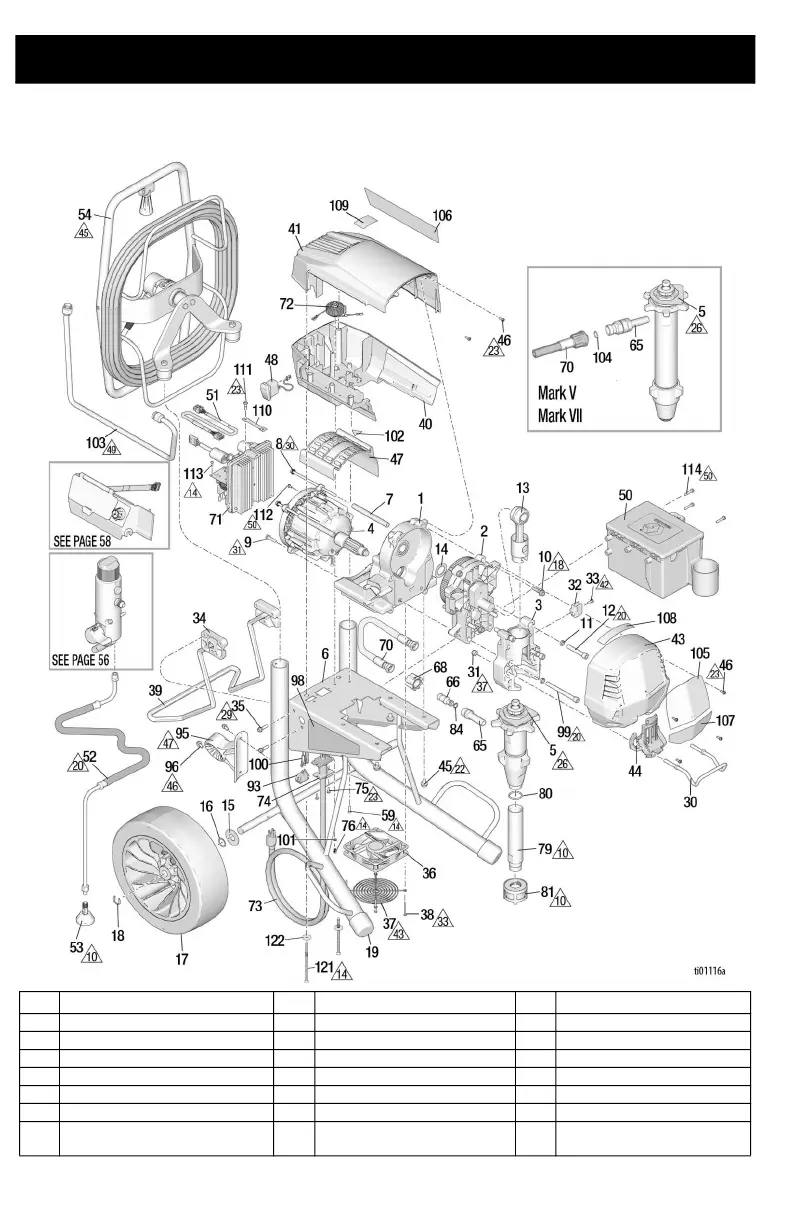

Parts
54 3B0070C
1095 XT, Mark V, Mark VII, Pro Hi-Boy
Ref. Torque Ref. Torque Ref. Torque
10 Hand Tighten 29 130-150 in-lb (14.7-17.0 N•m) 45 40-50 ft-lb (54.4-68.0 N•m)
14 12-16 in-lb (1.4-1.8 N•m) 30 70-75 in-lb (7.9-8.5 N•m) 46 40-50 in-lb (4.5-5.6 N•m)
18 190-210 in-lb (21.5-23.7 N•m) 31 140-160 in-lb (15.8-18 N•m) 47 Orient with arrow up
20 25-30 ft-lb (33.9-40.7 N•m) 33 6-8 in-lb (0.7-0.9 N•m) 49 38-42 ft-lb (51.7-57.1 N•m)
22 12-14 ft-lb (16.3-19.0 N•m) 37 85-95 in-lb (9.6-10.7 N•m) 50 30-35 in-lb (3.4-4.0 N•m)
23 20-25 in-lb (2.3-2.89 N•m) 42 30-40 in-lb (3.4-4.5 N•m)
26 105-115 ft-lb (142.8-156.4 N•m) 43
Assemble guard so it does not
touch fan hub.
