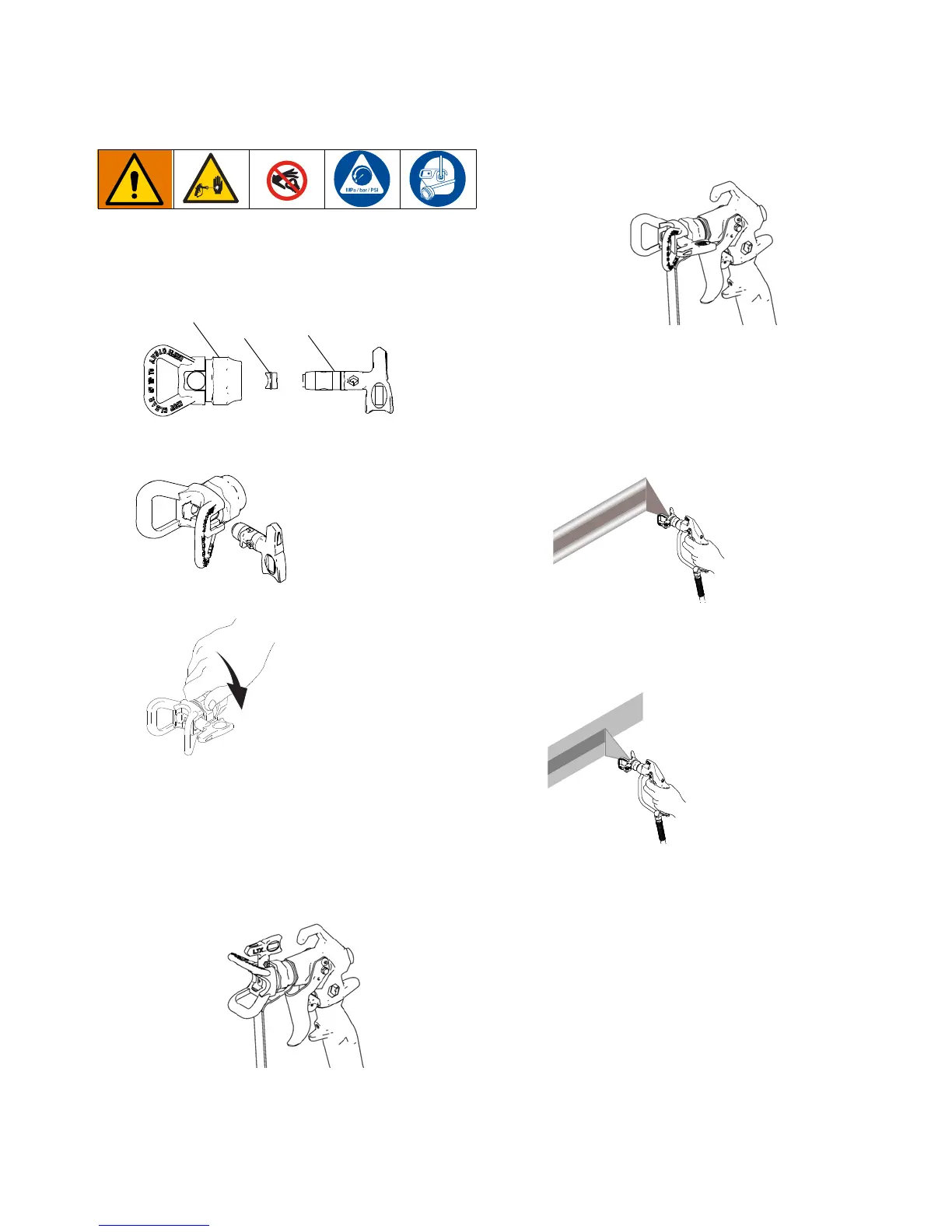

Switch Tip Installation
3A4399A 11
Switch Tip Installation
1. Perform Pressure Relief Procedure, page 8.
2. Use spray tip (A) to insert OneSeal
™
(B) into
guard (C).
3. Insert Switch Tip.
4. Screw assembly onto gun. Tighten.
Aligning Spray
1. Loosen guard retaining nut.
2. Align tip guard horizontally to spray a horizontal
pattern.
3. Align tip guard vertically to spray a vertical pattern.
Spray
1. Spray test pattern. Increase pressure to eliminate
heavy edges. Use smaller tip size if pressure adjust-
ment can not eliminate heavy edges.
2. Hold gun perpendicular, 10-12 in. (25-30 cm) from
surface. Spray back and forth. Overlap by 50%.
Trigger gun after moving and release before stop-
ping.
