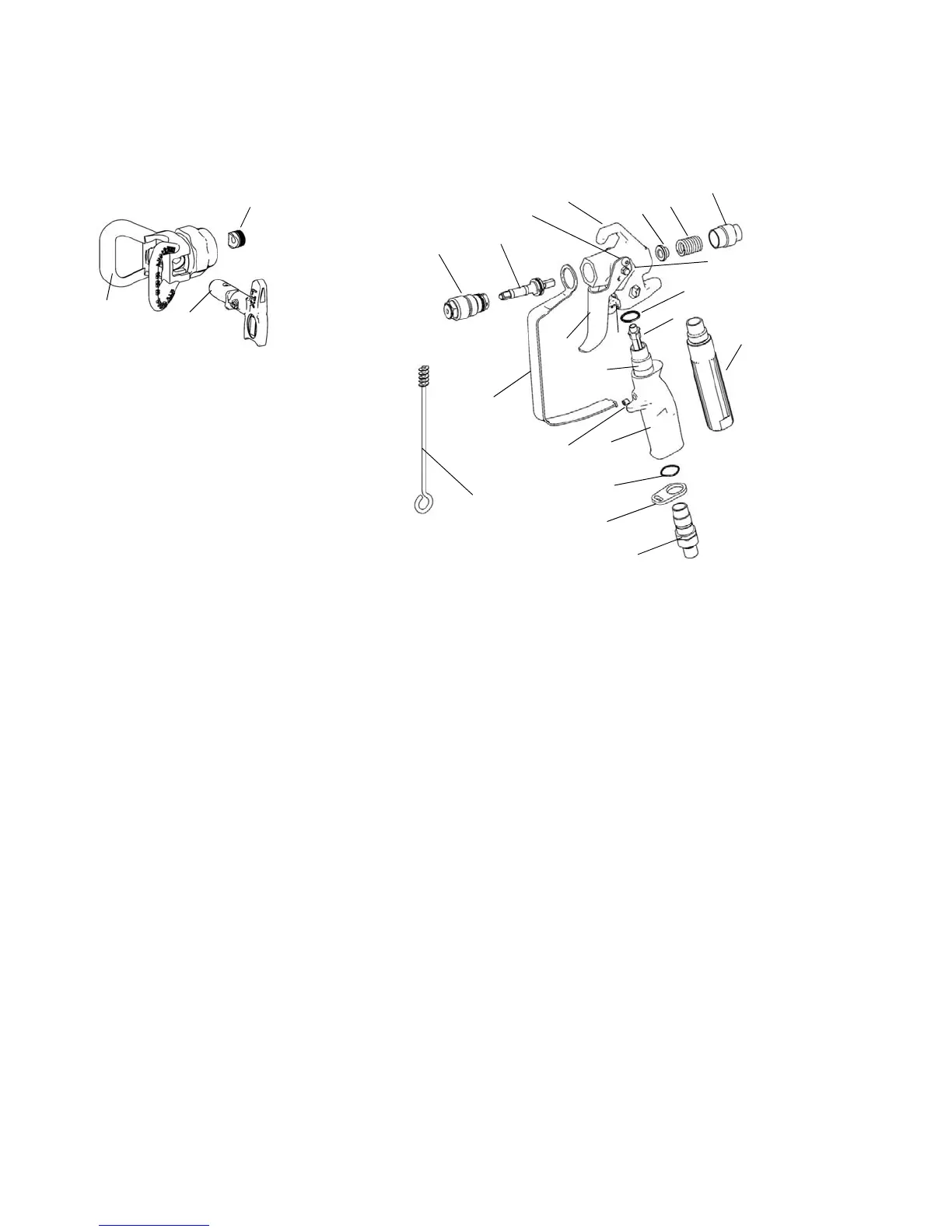

Spray Gun Parts
38 3A4399A
Spray Gun Parts
1
14
8
11
19
5
7a
13
15b
ti8502b
22
20
21
9
10
31
16/17
7b
6
12
15a
2
25
24
26
Ref. Part Description Qty.
1 289914 HOUSING, assy., FTX 1
5 287032 FILTER, 60 mesh 1
287033 FILTER, 100 mesh 1
287034 FILTER, 60 and 100 mesh combo 1
6 120777 PACKING, o-ring 1
7HANDLE 1
7b 15J736 FTX-A Gun (not shown) 1
8 288811 SWIVEL, assy, gun 1
9 120733 O-RING, urethane, clear 1
10 15J706 RETAINER, guard, trigger 1
11 15J698 TUBE, handle, Contractor Gun 1
12 120834 SCREW, set, Contractor Gun 1
13 15J769 TRIGGER, FTX Gun, 4-finger (not
shown)
1
14 117602 SCREW, shoulder, pan hd 2
15 288488 KIT, needle, repair includes 15a, 15b 1
15a NEEDLE, assembly 1
15b DIFFUSER, assembly 1
16 15J696 PIN, trigger (page 40) 1
17 105334 NUT, lock, hex (page 40) 1
19 15J464 GUARD, trigger 1
20 15J528 GUIDE, spring 1
21 121093 SPRING, compression 1
22 15B549 NUT, end 1
24 246453
OneSeal
™
, RAC X (5-pack)
1
25 246215 GUARD, RAC X 1
26 LTX515 TIP, spray 515, RAC X 1
LTX517 TIP, spray 517, RAC X 1
31 119799 BRUSH, cleaning 1
34 222385 CARD, medical alert (not shown)
1
