Graco 695 - Filter Assembly and Parts; Filter Diagram and Parts

Filter
36 3A4399A

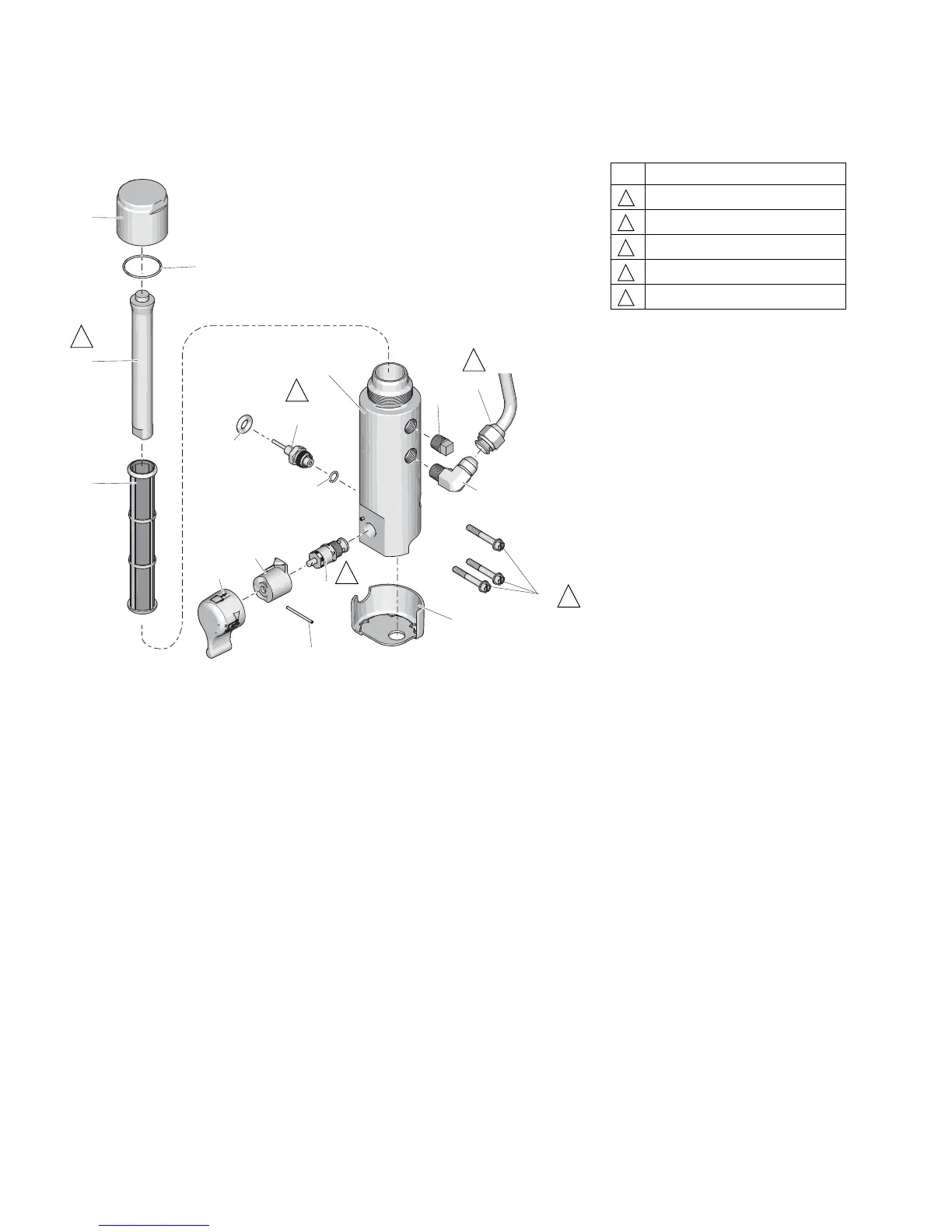

Filter
Parts List
67
13
189
20
40
42
39
114
66
9
74
81
86
50
21
92
80
ti22913c
4
1
2
5
3
Ref. Torque
90-110 in-lb (10.1 - 12.4 N•m)
35-45 ft-lb (47.4 - 61.0 N•m)
190-210 in-lb (21.4 - 23.7 N•m)
100-120 in-lb (11.2 - 13.5 N•m)
38-42 ft-lb (51.5 - 56.9 N•m)
1
2
3
4
5
Ref. Part Description Qty.
9 117285 PACKING, o-ring 1
13 16U013 SCREW, cap, socket head 3
20 111457 PACKING, o-ring 1
21 15C972 PIN, grooved 1
39 24V095 TUBE, formed, ultra platinum 1
40 121889 GROMMET, transducer 1
42 125926 FITTING 1
50 24E233 KIT, handle; includes 21, 81 1
66 15C765 CAP, filter 1
67 16T543 BASE, filter 1
74 15C766 TUBE, diffusion 1
80 24B156 VALVE, prime, HD 1
81 24D286 BASE, valve 1
86 243222 TRANSDUCER, pressure control;
includes 20
1
92 FILTER, fluid 1
244071 30 mesh
244067 60 mesh, original equipment
244068 100 mesh
244069 200 mesh
114 104813 PLUG, pipe, 3/8 1
172 193709 SEAT, valve 1
173 193710 SEAL, seat, valve 1
189 17A197 GUARD, base, filter 1
Ref. Part Description Qty.
