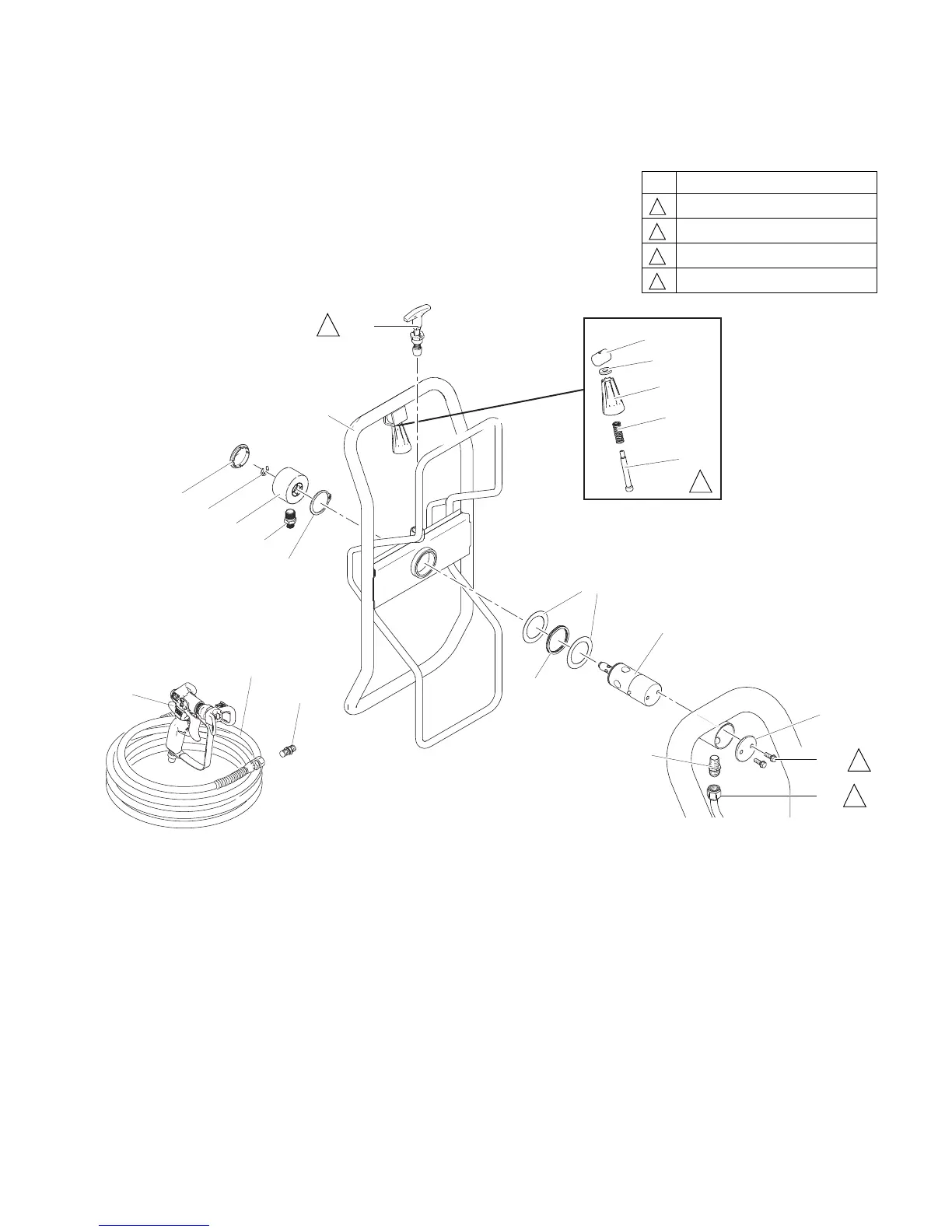

Graco 695 - Hose Reel and Gun Assembly; Hose Reel and Gun Diagram

Hose Reel and Gun
3A4399A 37
Hose Reel and Gun
Parts List
129
156
154
ti 14917d
173
172
170
171
180
99
163
164
168
183
169
42
201
174174
167
39
16
18
5
1
2
3
4
Ref. Torque
130-150 in-lb (14.6 - 16.9 N•m)
25-35 ft-lb (33.8 - 47.4 N•m)
120-130 in-lb (13.5 - 14.6 N•m)
38-42 ft-lb (51.5 - 56.9 N•m)
1
2
3
4
Ref. Part Description Qty.
5 16C975 PLATE, Pivot Mount 1
16 121311 FITTING, Connector, NPT x JIC 1
18 260212 SCREW, Hex Washer HD 2
39 24V095 TUBE, Formed, Ultra, Platinum 1
42 164672 ADAPTER 1
99 24B691 REEL, hose, ultra 1
129 240794 HOSE, coupled 1
154 288427 GUN, spray, for parts see page 38 1
156 162453 ADAPTER 1
163 24B248 CAP, swivel, complete 1
164 122347 RING, retaining, external 1
167 122534 SPRING, wave 1
168 24E400 PIN, pop, lock out 1
169 122524 RING, retaining, external 1
170 278085 HANDLE, swivel 1
171 122518 PIN 1
172 15X618 NUT, pin 1
173 122542 SPRING 1
174 122607 WASHER, flat 2
178 189018 SWIVEL 1
180 122669 WASHER 1
183 122787 CAP 1
201 24E016 TUBE, Hose Reel, Pivot 1
Ref. Part Description Qty.
