Graco Fusion AP User Manual

Overview
309550ZAP 13
Overview

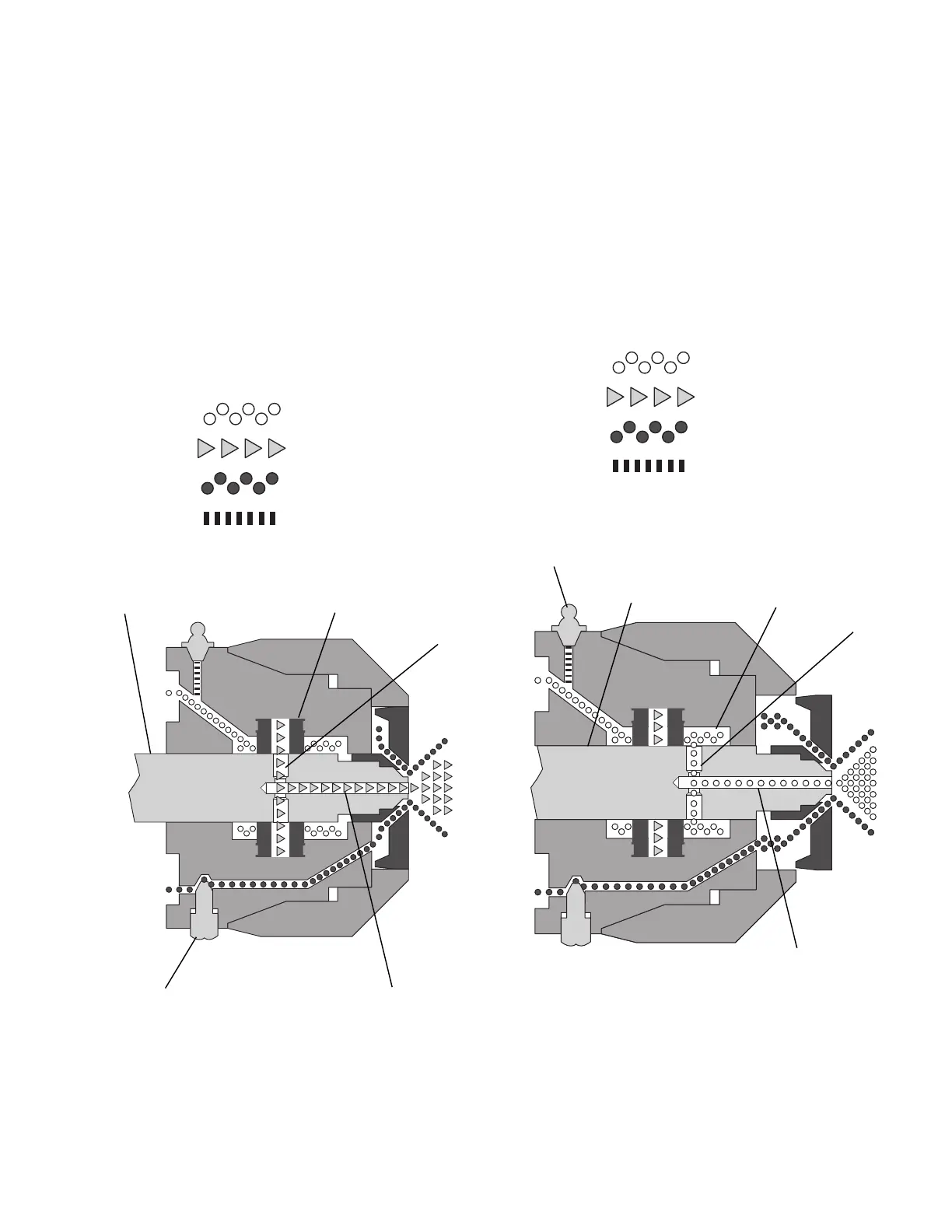

Theory of Operation
Gun Triggered (Fluid Spraying)
Mix chamber (19) moves back, shutting off purge air
flow. Impingement ports (IP) align with fluid ports of side
seals (18c), allowing fluid to flow through mix chamber
nozzle (N).
Key
NOTE: Flow paths are not shown to scale.
Gun Detriggered (Air Purging)
Mix chamber (19) moves forward, shutting off fluid flow.
Impingement ports (IP) open to air chamber (AC),
allowing purge air to flow through mix chamber nozzle
(N).
Key
NOTE: Flow paths are not shown to scale.
Purge Air
Fluid
Cleanoff Air
Grease
TI3545a
19 18c
IP
NK
Purge Air
Fluid
Cleanoff Air
Grease
TI3546a
19
AC
IP
N
G
