Models
4 309550ZAP
Models

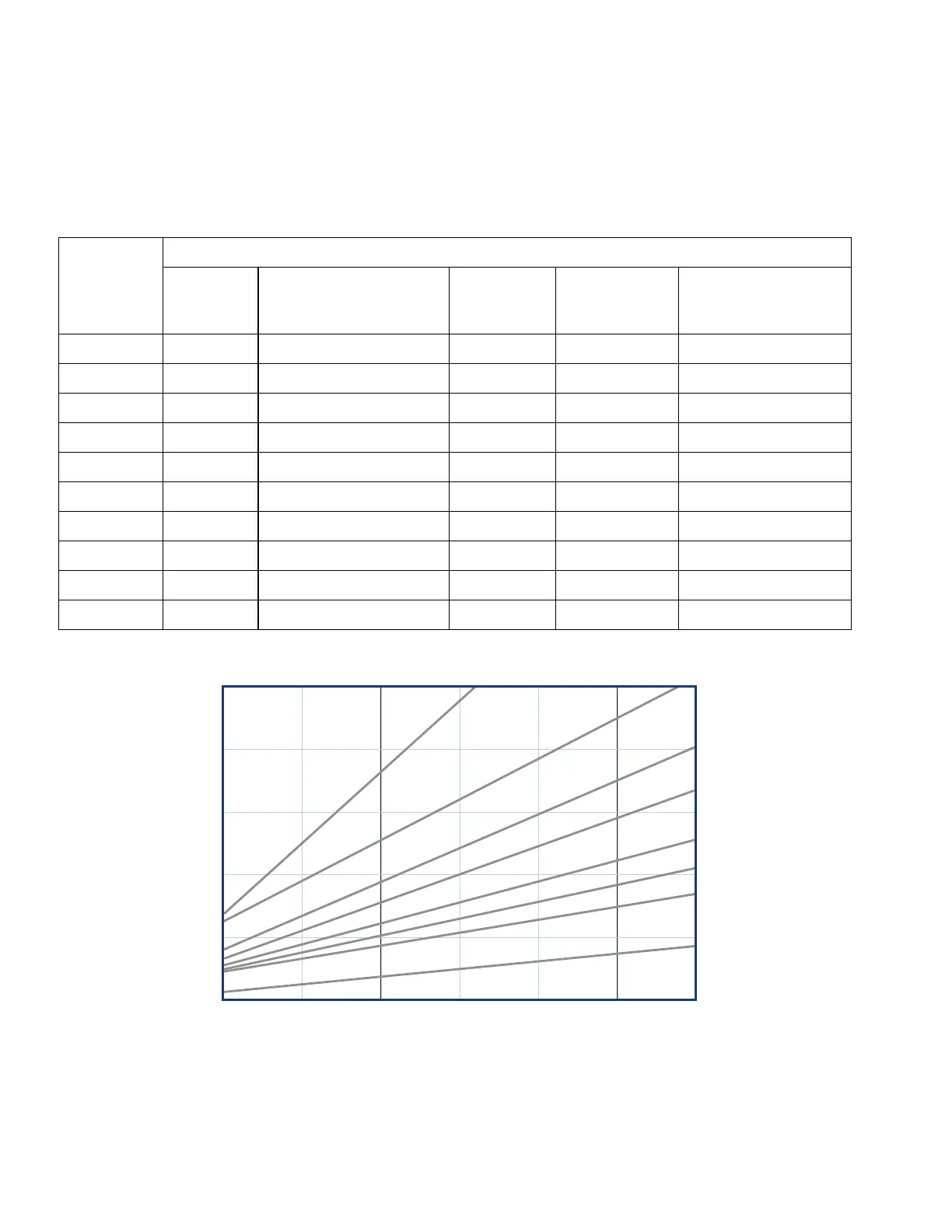

Round Pattern Guns
Round Pattern Mix Chambers by Pressure and Flow Rate
*Accessory AW (wide pattern) mix chambers are available. See Extension Tip Kits, page 42.
Gun Part,
Series
Mix Chamber
Part
Number
Impingement Port
Size
in. (mm)
Equivalent
Size
Seal
Material
Pattern at 24 in (61
cm) from target
in. (mm)
246099, A AR2020 0.020 (0.50) -000 SST 5 (127)
246100, A AR2929 0.029 (0.70) -00 SST 8 (203)
248617, A AR3737 0.037 (0.94) None SST 9 (227)
246101, A AR4242 0.042 (1.00) -01 SST 11 (279)
246102, A AR5252 0.052 (1.30) -02 SST 12 (305)
246103, A AR6060 0.060 (1.50) -03 SST 14 (356)
246104, A AR7070 0.070 (1.75) -04 SST 15 (381)
246105, A AR8686 0.086 (2.15) -05 SST 18 (457)
255201, A AR4242 0.042 (1.00) -01 Polycarballoy 11 (279)
255202, A AR5252 0.052 (1.30) -02 Polycarballoy 12 (305)
FLOW RATE in gpm (lpm)*
PRESSURE in psi (MPa, bar)
5.0
(18.9)
4.0
(15.1)
3.0
(11.4)
1.0
(3.8)
2.0
(7.6)
0
AR4242 (01), AW3939*
AR2929 (00), AW2828*
AR2020 (000)
500
(3.5, 35)
1000
(6.9, 69)
1500
(10.3, 103)
2000
(13.8, 138)
2500
(17.4, 172.4)
3000
(20.7, 207)
3500
(24.1, 241)
* To calculate flow in lb/min, multiply gpm rate by 10.
Example: 2 gpm x 10 = 20 lb/min.
AR6060 (03) AW5757
AR5252
(02), AW4646*
AR7070 (04) AW6464
AR8686 (05) AW8282
AR3737, AW3333*
AR4747
