Operation
309550ZAP 21
Daily Shutdown

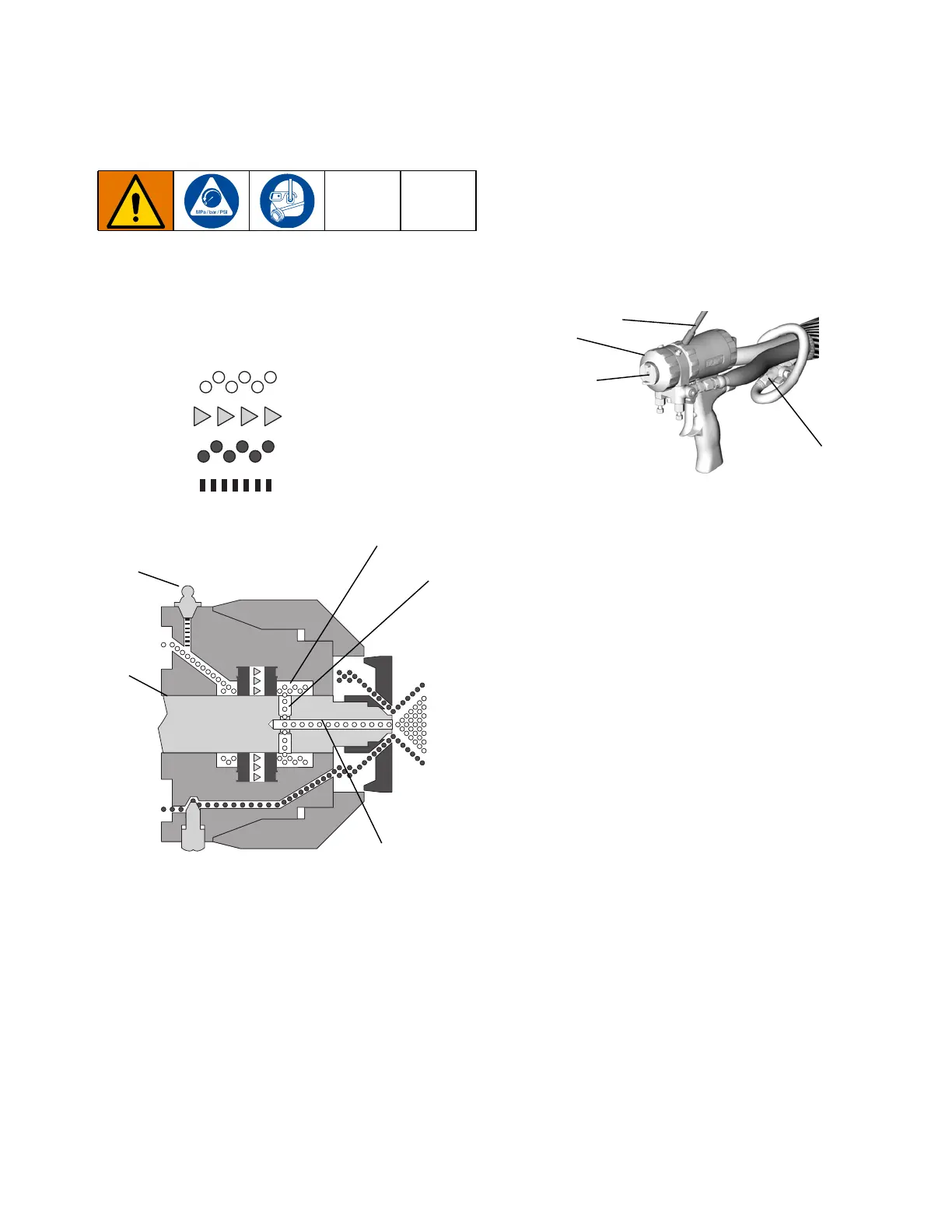

Grease your gun daily to prevent two component curing
and keep fluid passages clean. Purge air carries grease
mist through the air chamber (AC) and impingement
ports (IP) and out the mix chamber nozzle (N), coating
all interior surfaces.
Key
1. Follow the Pressure Relief Procedure, page 19.
2. Leave the air turned on and gun detriggered.
3. Remove the grease fitting cap. Using the grease
gun (Y), dispense grease into fitting (G) until grease
mist sprays from mix chamber nozzle (N).
NOTE: Do not over-grease. Use two shots maximum.
Do not spray grease mist on sprayed material.
4. Replace the grease cap.
5. Round and flat pattern guns only: Turn off the air
valve (W).
Spatter pattern gun only: Shut down the main air
supply.
Purge Air
Fluid
Cleanoff Air
Grease
N
G
19
AC
IP
W
N
G
Y
